Front Side Door Check Link Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

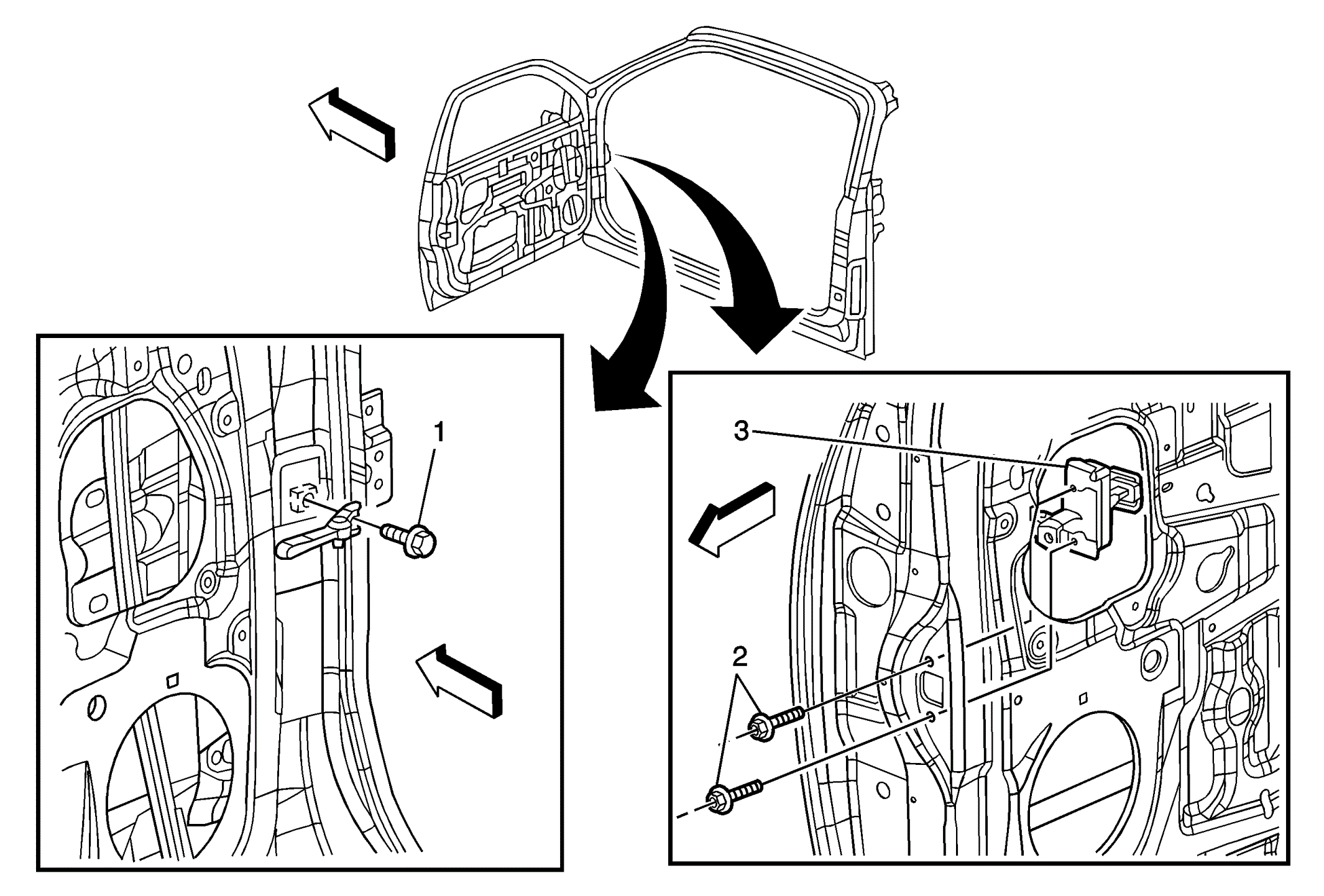

Fig 1: Front Side Door Check Link

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector.
1	Front Side Door Check Link to Body Bolt CAUTION: Refer to Fastener Caution . Tighten: 20 N.m (18 lb ft)
2	Front Side Door Check Link Bolt (Qty: 2) Tighten: 7 N.m (62 lb in)
3	Front Side Door Check Link Tip: Remove the check link from the door through the center opening.
