Rear Seat Armrest Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

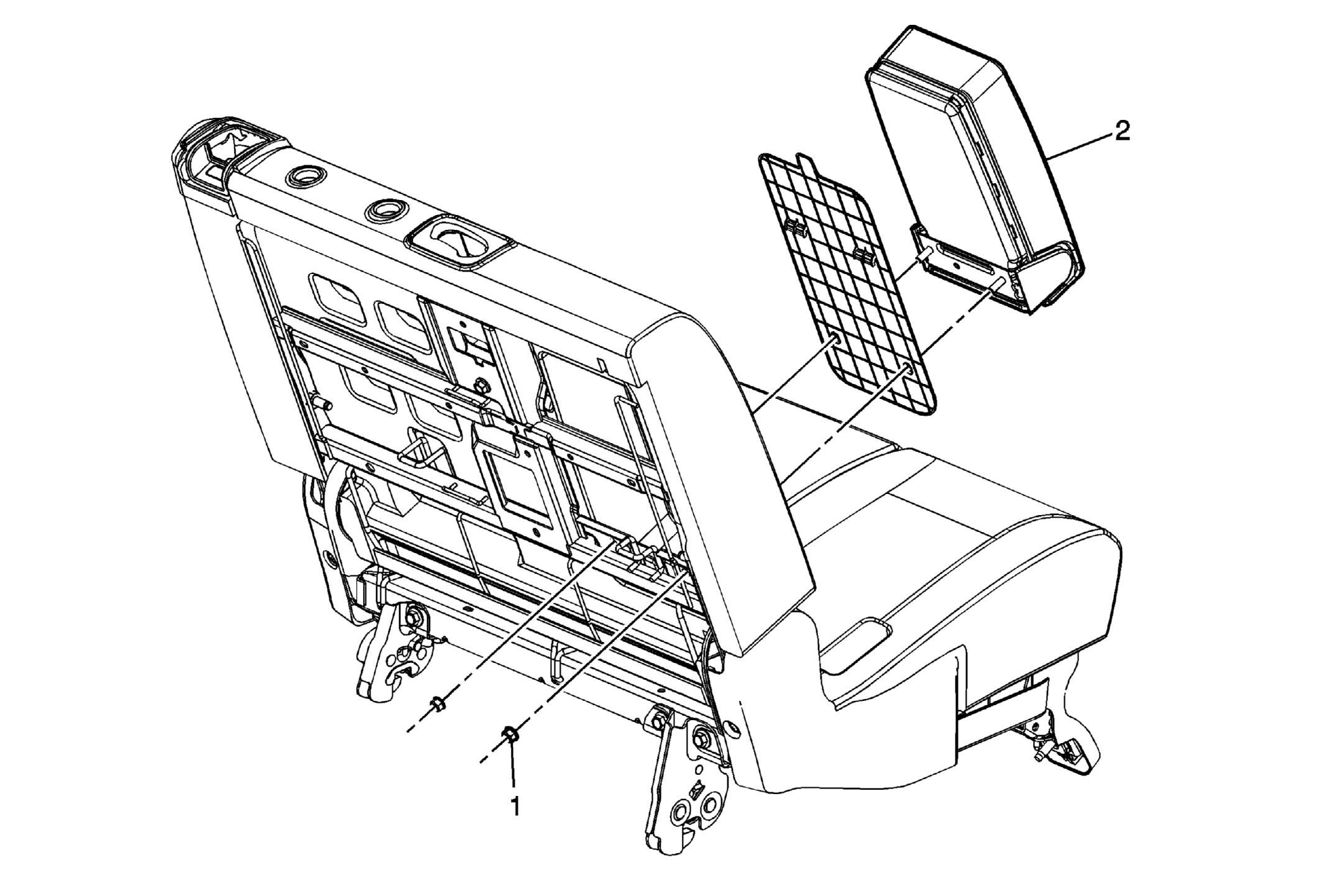

Fig 1: Rear Seat Armrest

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Replacement . Remove the rear seat recliner covers. Refer to Rear Seat Recliner Outer Finish Cover Replacement - Inboard (with 40 Percent Seat) or Rear Seat Recliner Outer Finish Cover Replacement - Inboard (with 60 Percent Seat) and Rear Seat Recliner Outer Finish Cover Replacement - Outboard (with 60 Percent Seat) or Rear Seat Recliner Outer Finish Cover Replacement - Outboard (with 40 Percent Seat) . Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement . Remove the rear child seat bracket trim cover. Refer to Child Seat Bracket Trim Cover Replacement . Remove the rear seat latch release strap bezel. Refer to Rear Seat Latch Release Strap Bezel Replacement . Remove the rear seat back panel. Refer to Rear Seat Back Cushion Panel Replacement (with 60 Percent Seat) .
1	Rear Seat Armrest Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Rear Seat Armrest Procedure: Rear seat back armrest close out comes out when the armrest is removed..

Callout

Component Name

Preliminary Procedures

Remove the rear seat. Refer to Rear Seat Replacement .
Remove the rear seat recliner covers. Refer to Rear Seat Recliner Outer Finish Cover Replacement - Inboard (with 40 Percent Seat) or Rear Seat Recliner Outer Finish Cover Replacement - Inboard (with 60 Percent Seat) and Rear Seat Recliner Outer Finish Cover Replacement - Outboard (with 60 Percent Seat) or Rear Seat Recliner Outer Finish Cover Replacement - Outboard (with 40 Percent Seat) .
Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement .
Remove the rear child seat bracket trim cover. Refer to Child Seat Bracket Trim Cover Replacement .
Remove the rear seat latch release strap bezel. Refer to Rear Seat Latch Release Strap Bezel Replacement .
Remove the rear seat back panel. Refer to Rear Seat Back Cushion Panel Replacement (with 60 Percent Seat) .

Rear Seat Armrest Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Rear Seat Armrest
Procedure:
Rear seat back armrest close out comes out when the armrest is removed..
