Rear Seat Latch Release Strap Bezel Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

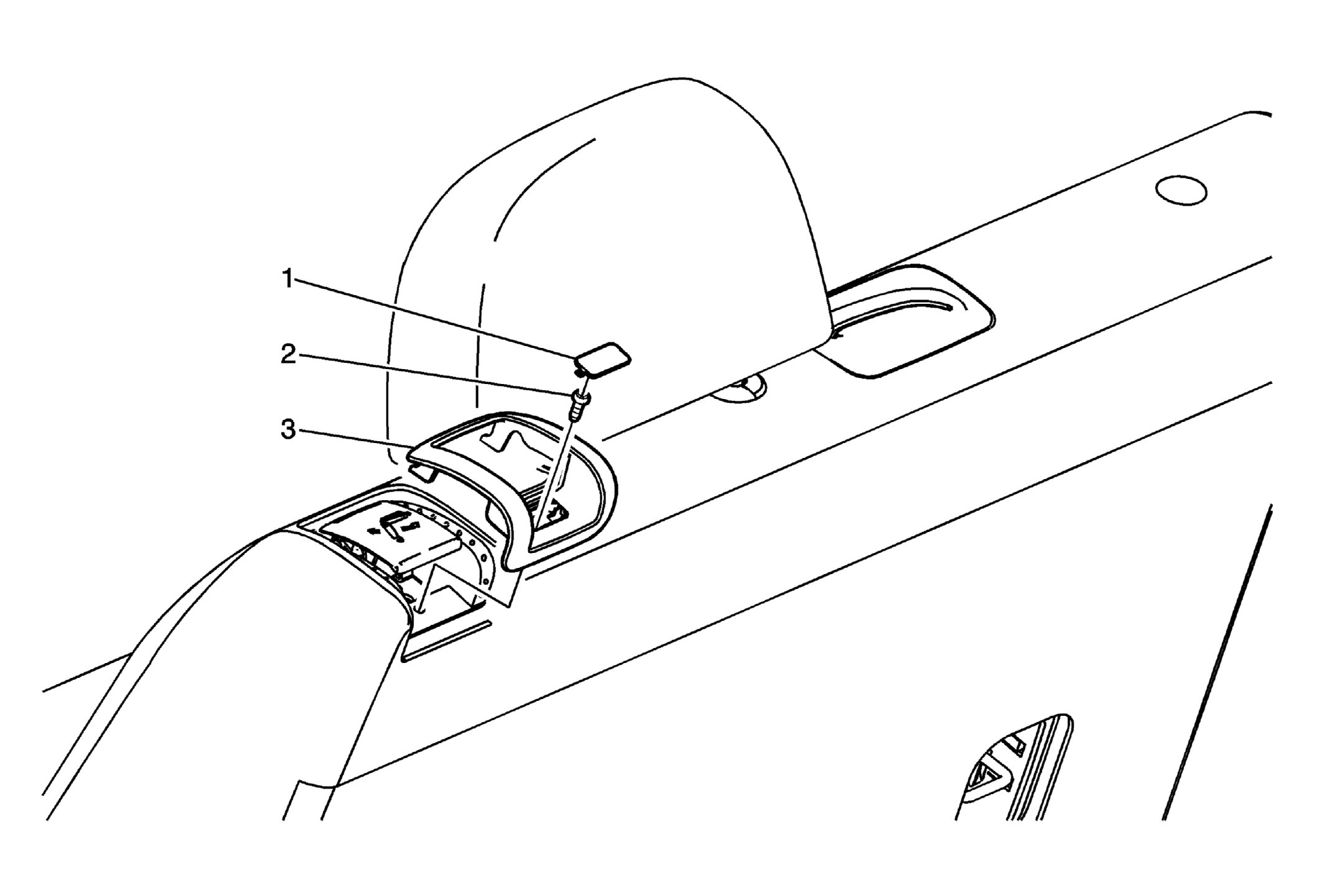

Fig 1: Rear Seat Latch Release Strap Bezel
GM1867233Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Seat Latch Release Strap Bezel Bolt Cover
Tip:  Use a small flat-bladed tool to aid in the removal of the bolt cover.
2 Rear Seat Latch Release Strap Bezel Bolt
CAUTION: Refer to Fastener Caution .

Tighten:  5 N.m (44 lb in)
3 Rear Seat Latch Release Strap Bezel
