Rear Compartment Floor Stowage Compartment Replacement (HP7)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

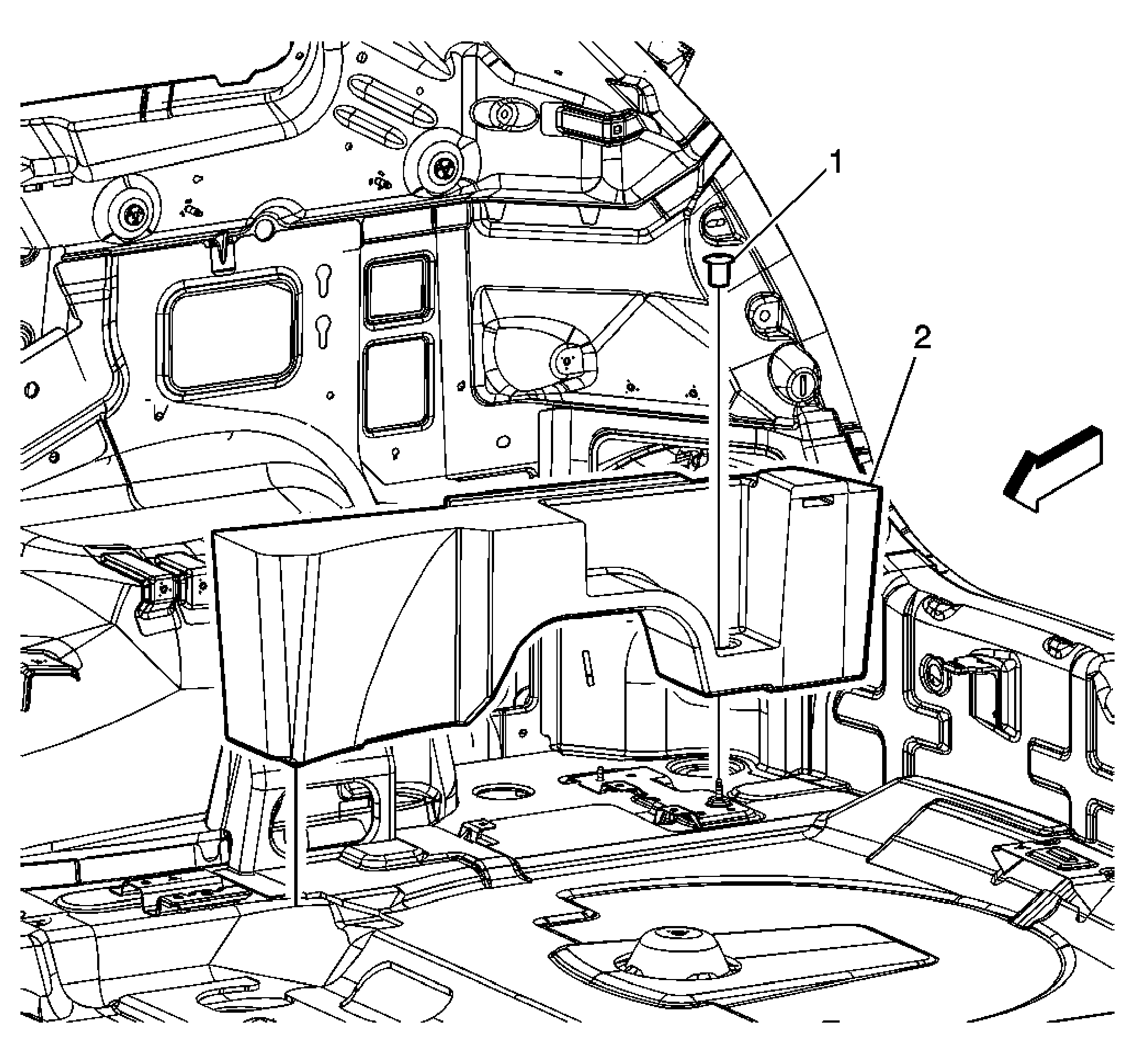

Fig 1: Rear Compartment Floor Stowage Compartment
GM1885134Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
  2. Remove the rear compartment floor stowage compartment cover. Refer to Rear Compartment Floor Stowage Compartment Cover Replacement .
1 Rear Compartment Floor Stowage Compartment Bolt
CAUTION: Refer to Fastener Caution .

Tighten:  3 N.m (27 lb in)
2 Rear Compartment Floor Stowage Compartment Assembly
