Rear Compartment Floor Stowage Compartment Cover Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

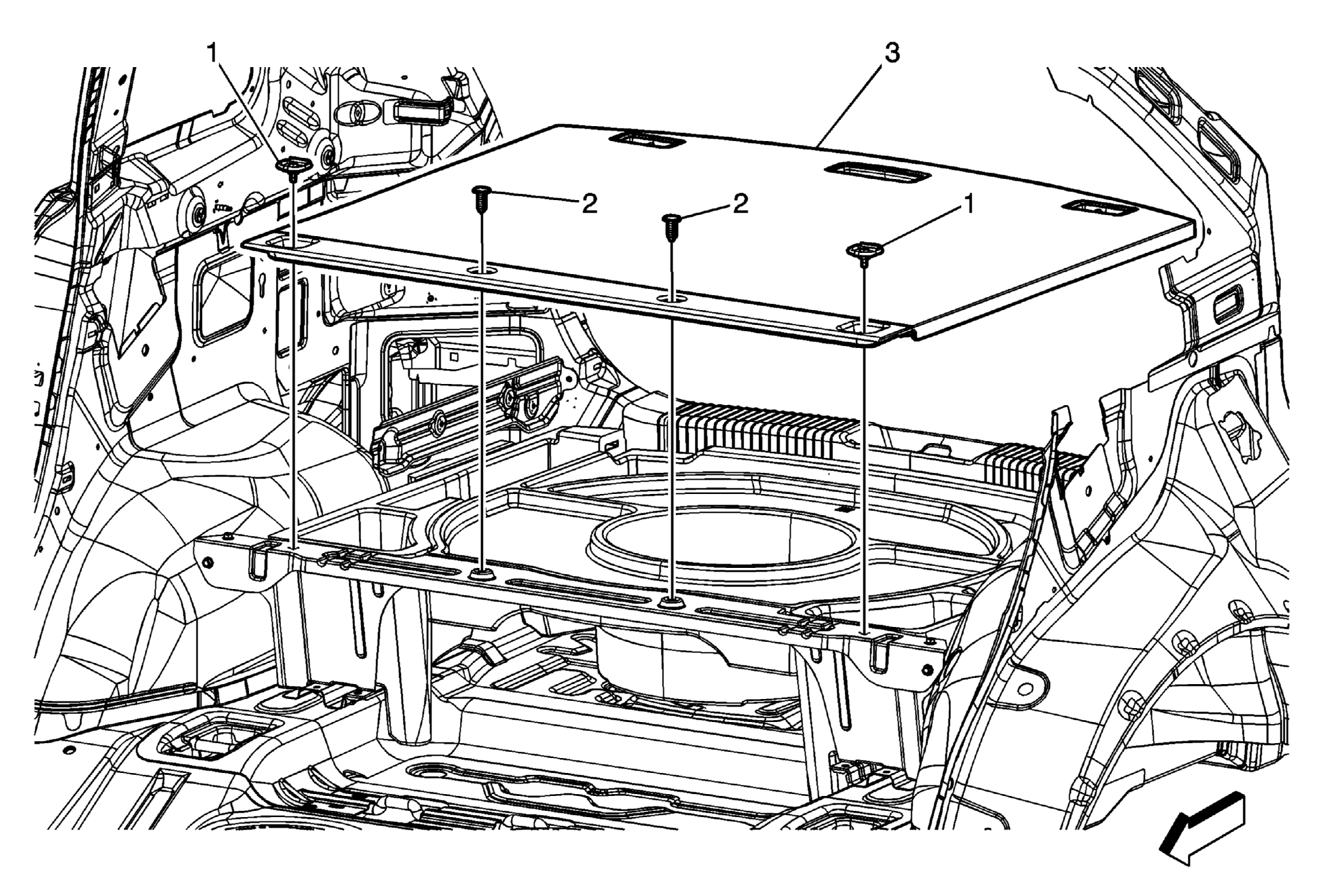

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the side rail cargo hold downs, if equipped. |
|
| 1 | Cargo Tie Down Loop Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Rear Compartment Floor Stowage Compartment Cover Retainer (Qty: 2) |
| 3 | Rear Compartment Floor Stowage Compartment Cover Tip: Push the rear latches inward to release the two rear latches. |
