Front Bumper Fascia Replacement (Standard)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

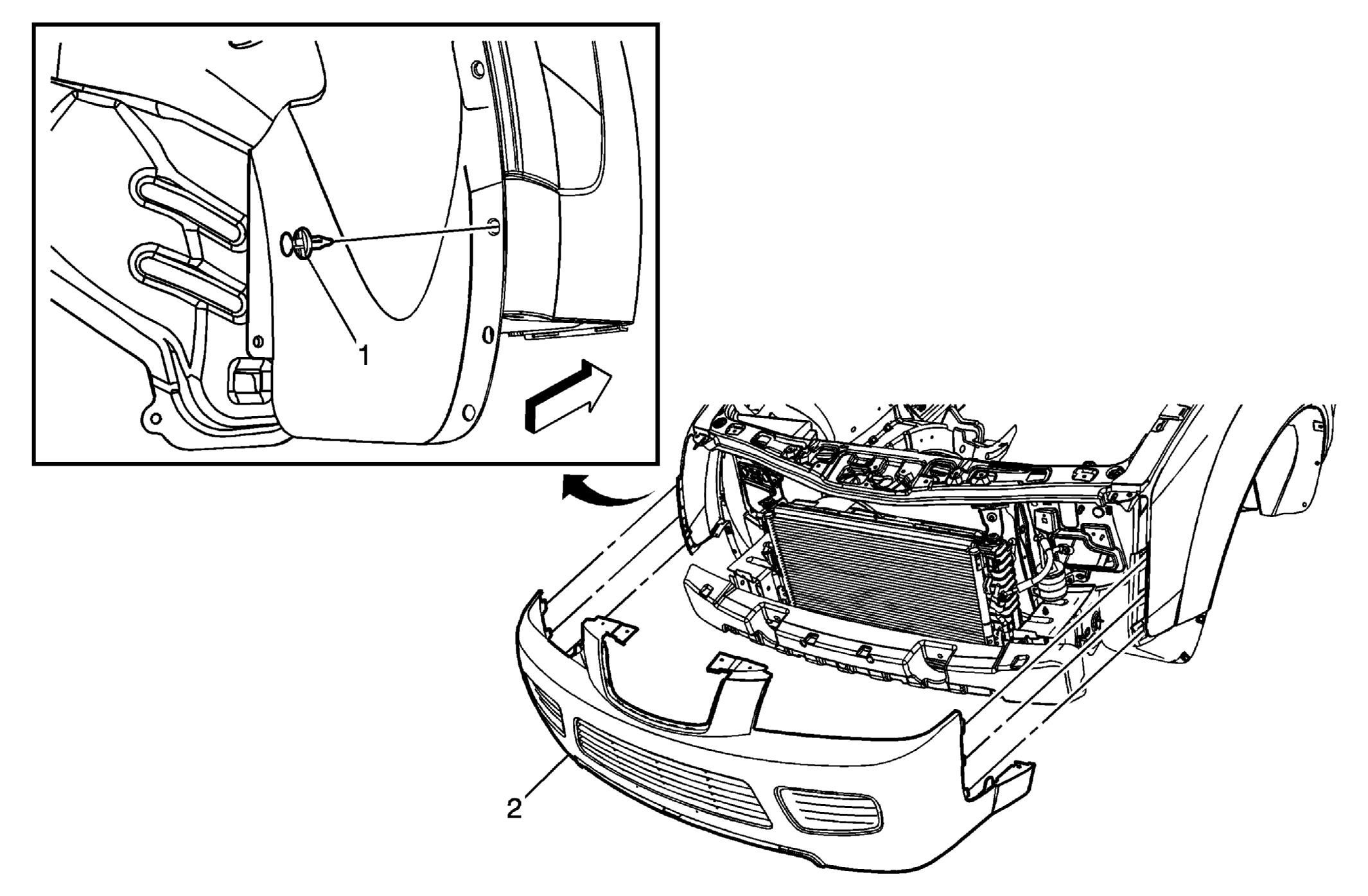

Fig 1: View Of Front Bumper Fascia & Retainers (Standard)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Preliminary Procedures Remove the head lamp assemblies. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement . Remove the front bumper fascia support. Refer to Front Bumper Fascia Support Replacement . Remove the front bumper lower fascia. Refer to Front Bumper Lower Fascia Replacement .
1	Push Pin Retainer (Qty: 2)
2	Front Bumper Fascia

Callout

Component Name

NOTE: Refer to Fastener Notice .

Preliminary Procedures

Remove the head lamp assemblies. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement .
Remove the front bumper fascia support. Refer to Front Bumper Fascia Support Replacement .
Remove the front bumper lower fascia. Refer to Front Bumper Lower Fascia Replacement .

Push Pin Retainer (Qty: 2)

Front Bumper Fascia
