Front Bumper Fascia Support Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

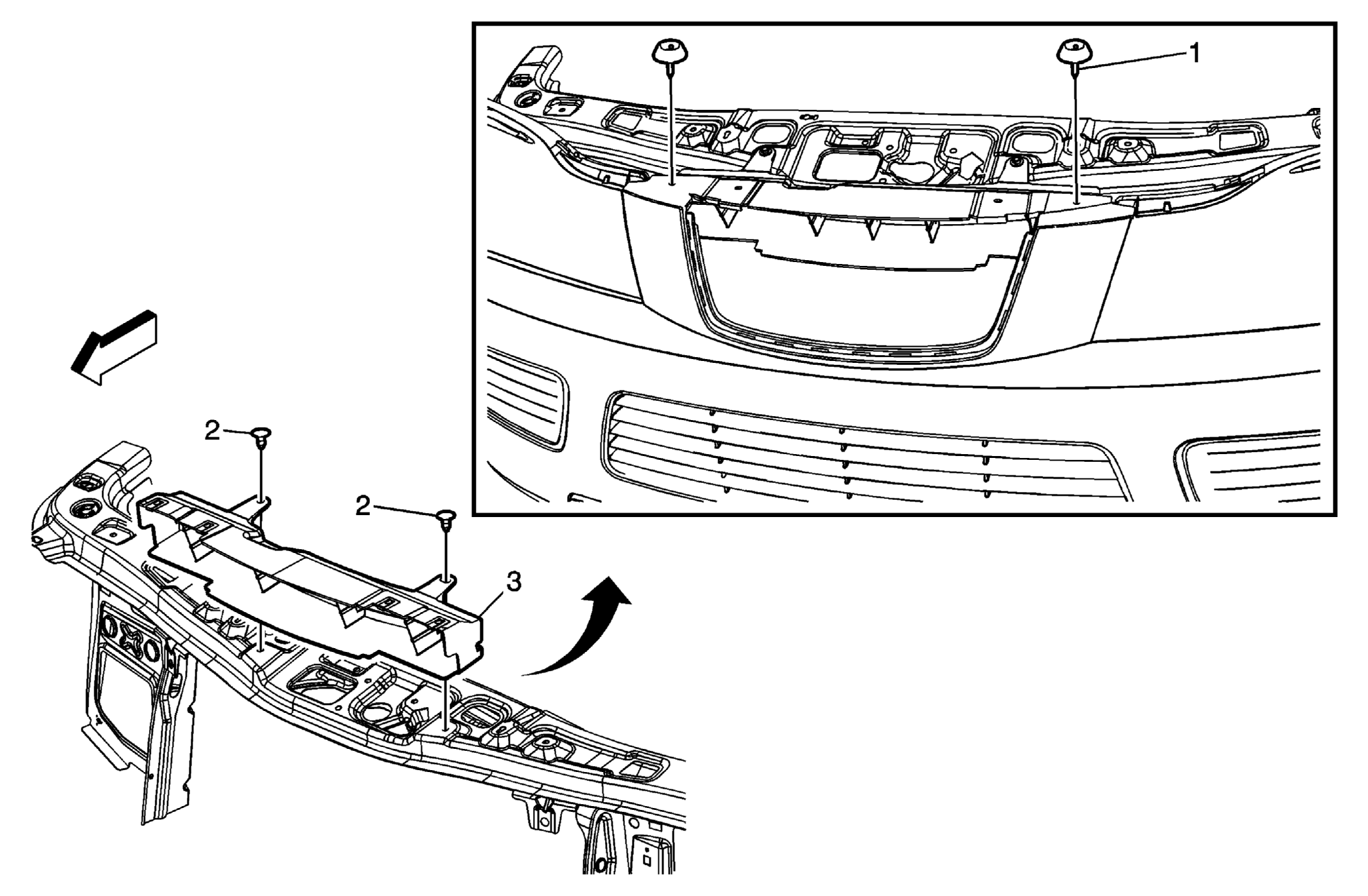

Fig 1: View Of Front Bumper Fascia Support
GM1713076Courtesy of GENERAL MOTORS CORP.
Front Bumper Fascia Support Replacement

Callout Component Name
Preliminary Procedure:
Remove the front bumper fascia upper grille. Refer to Front Bumper Upper Fascia Grille Replacement .
1 Hood Stop Bumper Bolt (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  3 N.m (27 lb in)
2 Front Fascia Center Support Bolt (Qty: 2)

Tighten:  6 N.m (53 lb in)
3 Front Bumper Fascia Center Support
