Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install NEW seals onto the servo pistons and the servo cover.
  2. Install the 2-4 servo.
  3. Install the J 29714-A.

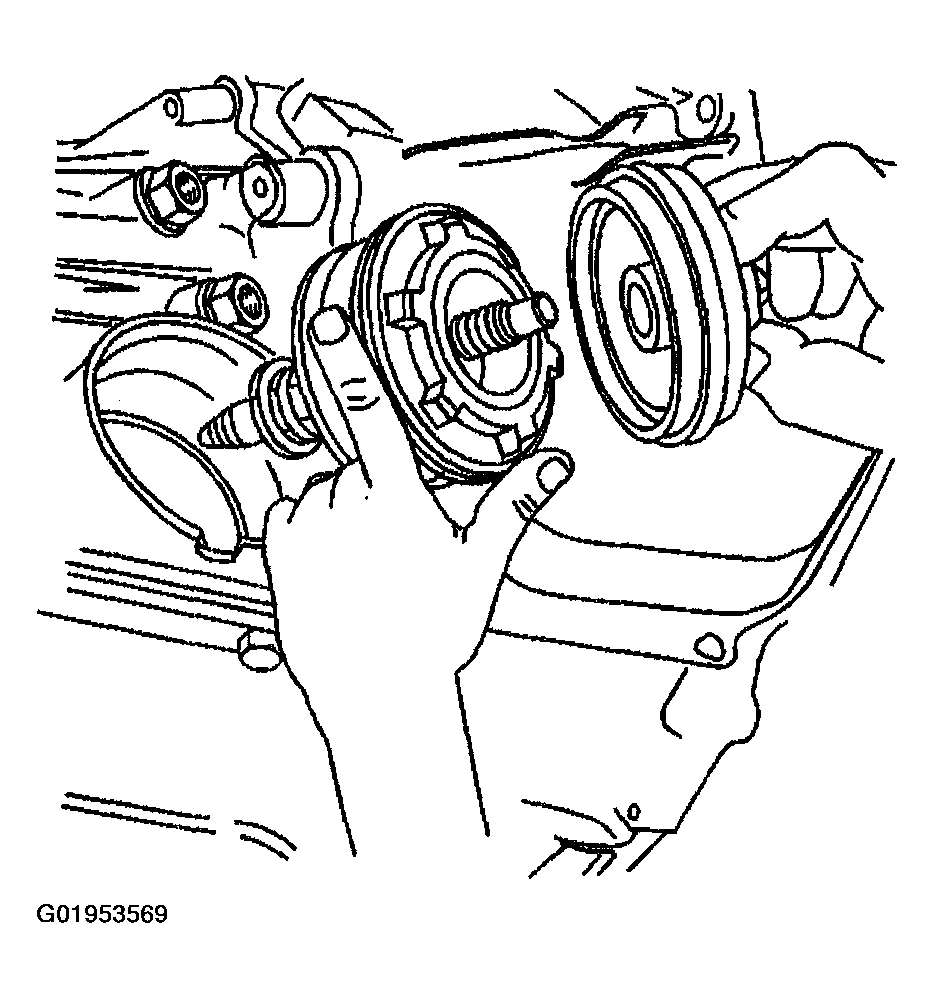

    Fig 1: Installing Seals, 2-4 Servo & J 29714-A
    G01953569Courtesy of GENERAL MOTORS CORP.

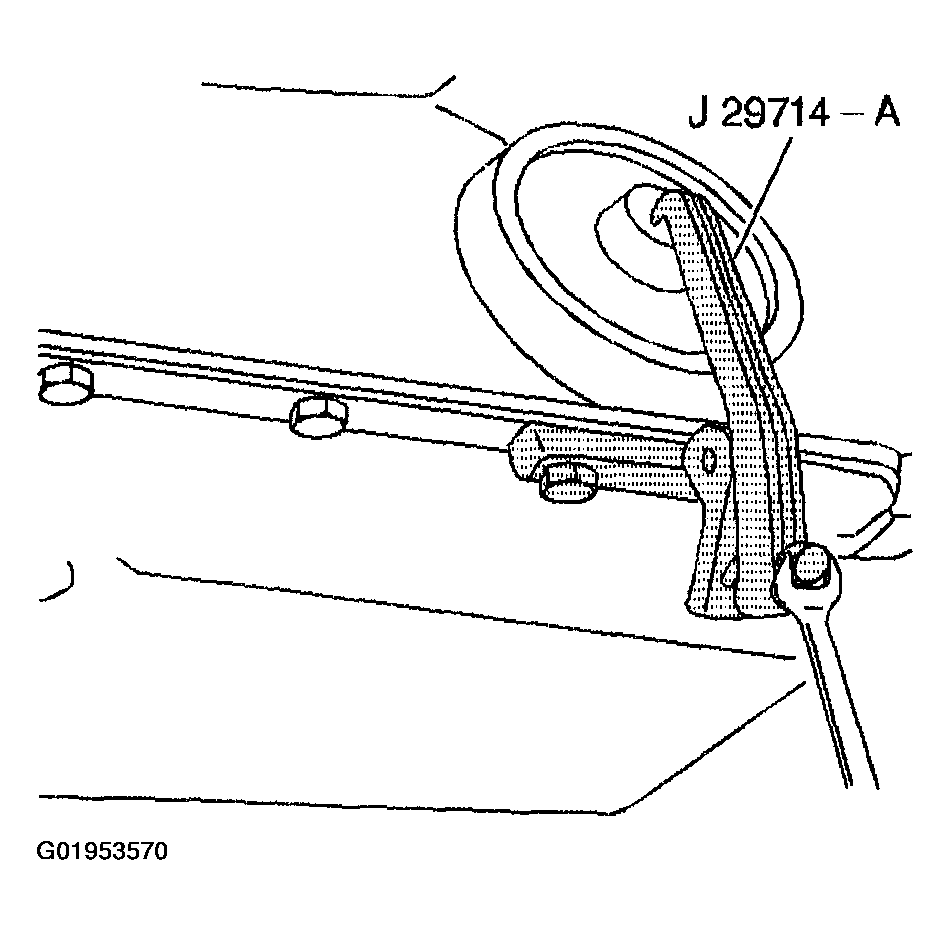

  4. Tighten the bolt on J 29714-A  in order to compress the servo cover.
  5. Install the servo cover ring.
  6. Remove the J 29714-A.
    NOTE: Refer to FASTENER NOTICE .
  7. Install the oil pan bolt.

    Tighten

    Tighten the bolt to 11 N.m (97 lb in).

    Fig 2: Installing Oil Pan Bolt
    G01953570Courtesy of GENERAL MOTORS CORP.
  8. Install the heat shield and bolts.

    Tighten

    Tighten the bolts to 17 N.m (13 lb ft).

  9. Install the exhaust pipe.
  10. Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to Transmission Fluid Checking Procedure   .

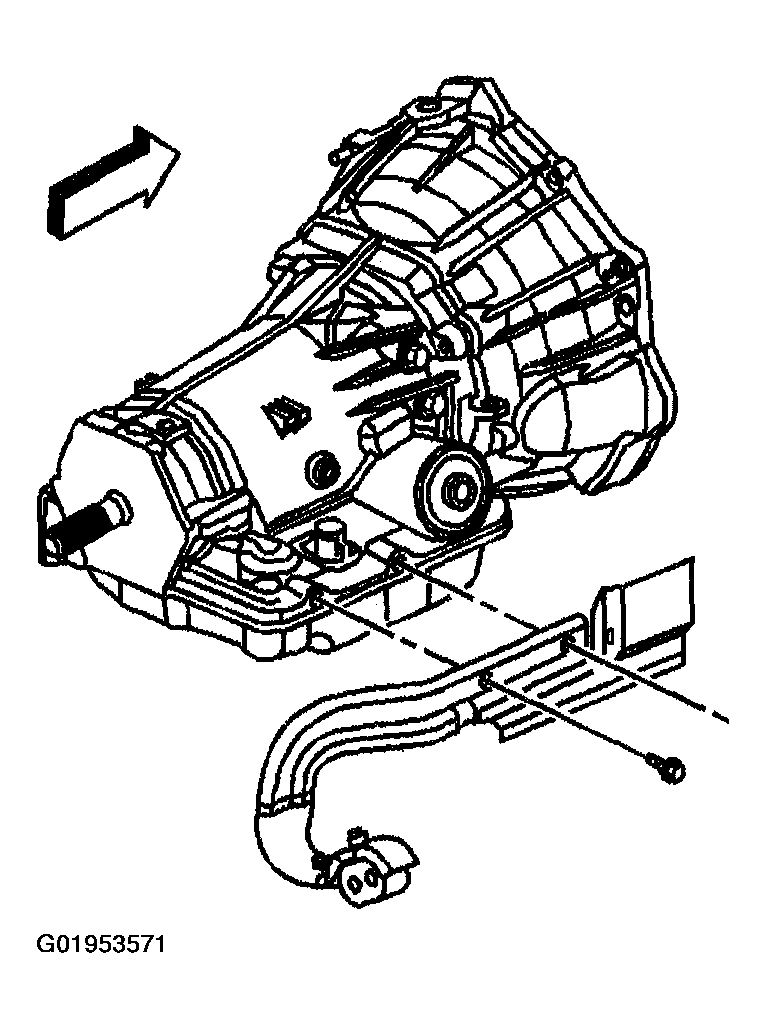

    Fig 3: Installing Heat Shield & Bolts
    G01953571Courtesy of GENERAL MOTORS CORP.
