Transmission Fluid Checking Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine and operate the vehicle for 15 minutes or until the transmission fluid reaches an operating temperature of 82-93°C (180-200°F).
  2. Park the vehicle on a level surface.
  3. With your foot on the brake, move the shift lever through each gear range. Pause for about 3 seconds in each range, ending in Park.
  4. Apply the parking brake and let the engine idle for 3 minutes.
  5. Remove the transmission fluid level indicator. Wipe the indicator clean. Reinsert the indicator. Give the indicator a full twist in order to close.
  6. Wait 3 seconds and remove the indicator.
  7. Read both sides of the indicator. The fluid must be within the hot cross-hatched area using the lowest level reading.

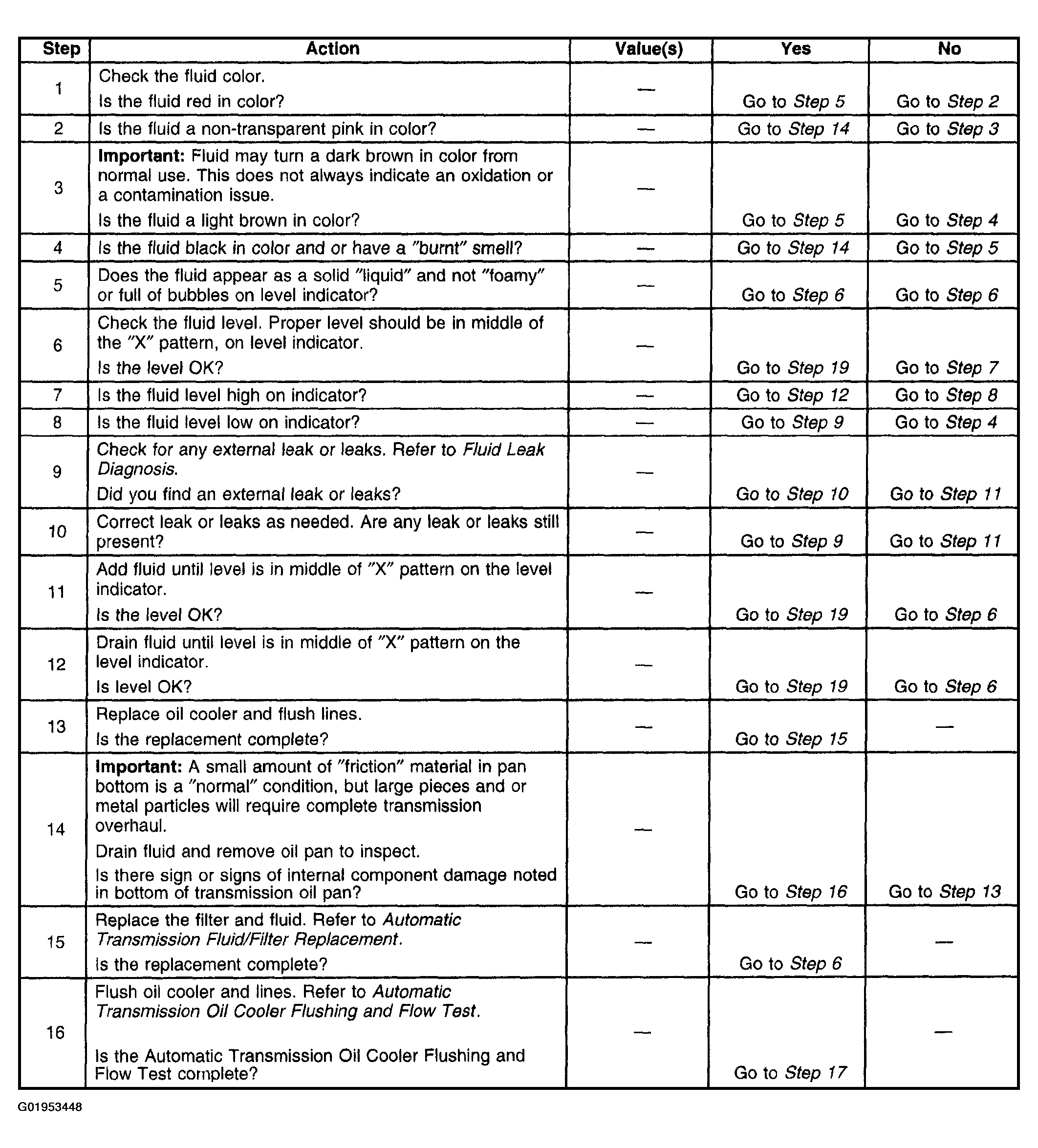

Fig 1: Transmission Fluid Checking Procedure (Steps 1 - 16)
G01953448Courtesy of GENERAL MOTORS CORP.

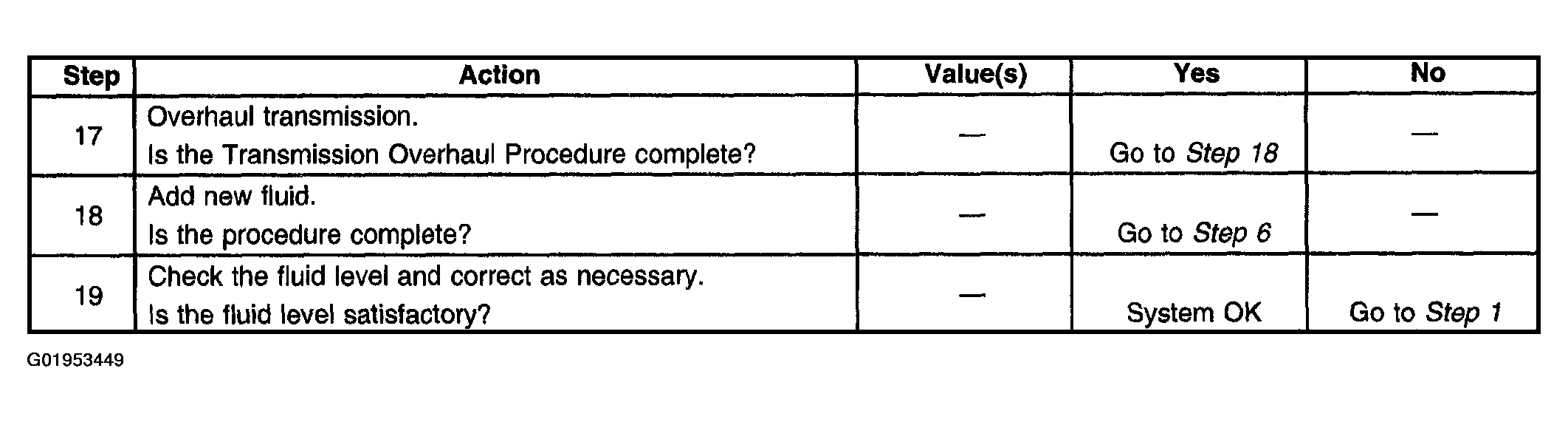

Fig 2: Transmission Fluid Checking Procedure (Steps 17 - 19)
G01953449Courtesy of GENERAL MOTORS CORP.
