Installation Procedure

  1. Install the insulator pad to the vehicle.

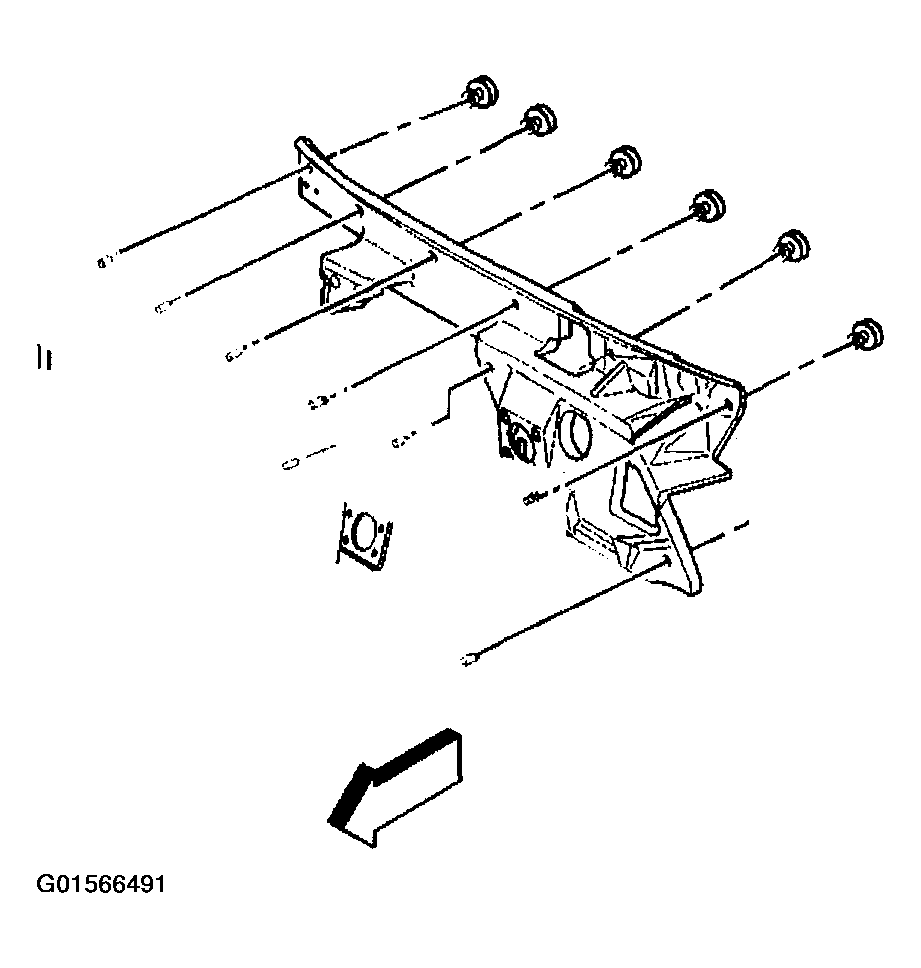

    Fig 1: Installing Insulator Clips To Insulator Pad
    G01566491Courtesy of GENERAL MOTORS CORP.
  2. Install the insulator clips to the insulator pad.
  3. Install the instrument panel carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .
  4. Enable the SIR. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
