Removal Procedure

  1. Remove the inflatable restraint IP module. Refer to SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM in SIR.
  2. Remove the nuts from the assist handle.

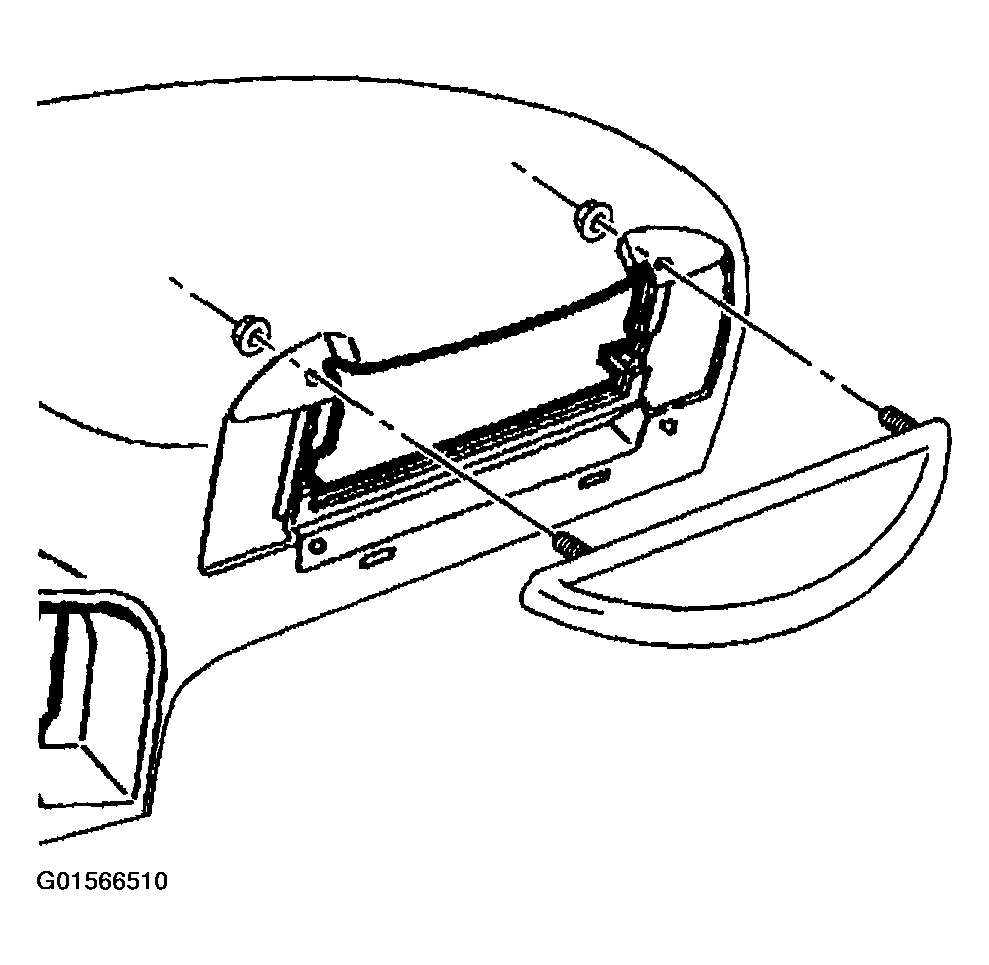

    Fig 1: Removing Nuts From Assist Handle
    G01566510Courtesy of GENERAL MOTORS CORP.
  3. Remove the assist handle.
