Installation Procedure

  1. Install the assist handle to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the assist handle nuts.

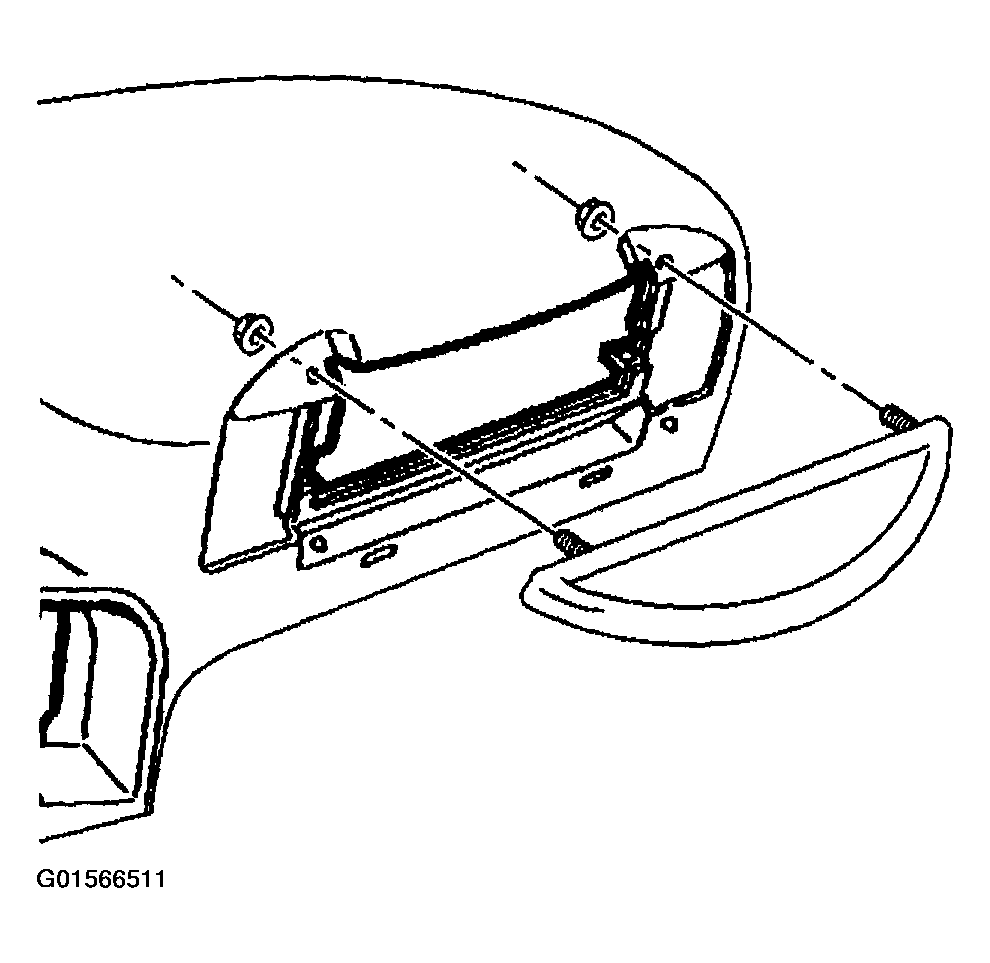

    Fig 1: Assist Handle Nuts
    G01566511Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the assist handle nuts to 8 N.m (71 lb ft).

  3. Install the inflatable restraint IP module. Refer to SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM in SIR.
