Installation Procedure

Install the steering column housing assembly onto the steering column housing jacket assembly.
NOTE:
Install the 4 TORX® head screws to the steering column housing assembly.
Tighten

Tighten the screws to 17 N.m (13 lb ft).

Fig 1: Installing Steering Column Housing Assembly
Courtesy of GENERAL MOTORS CORP.
Install the following parts onto the steering column jacket assembly:
1. 3.1. The steering shaft (1).
2. 3.2. The adapter and bearing assembly (2).
3. 3.3. The steering column seal (3).
4. 3.4. Install the linear shift assembly. LINEAR SHIFT ASSEMBLY REPLACEMENT .
Fig 2: Installing Steering Column Jacket Assembly Parts
Courtesy of GENERAL MOTORS CORP.

CAUTION:

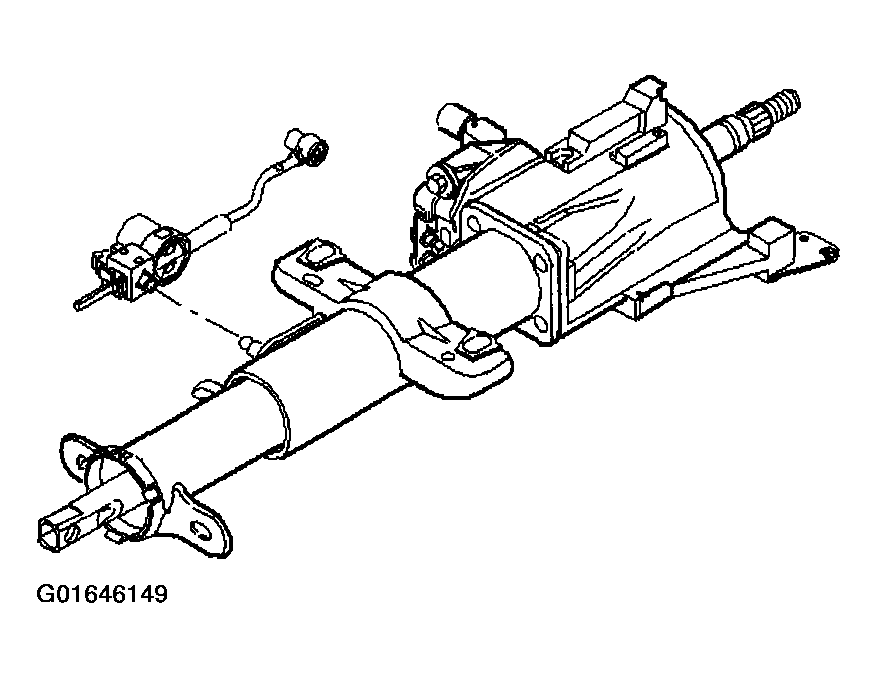

Fig 3: Installing Automatic Transmission Shift Lock Control
Courtesy of GENERAL MOTORS CORP.
Install the automatic transmission shift lock control.
Install the turn signal and multifunction switch assembly. Refer to MULTIFUNCTION, TURN SIGNAL SWITCH REPLACEMENT .
Install the shift lever assembly only. Refer to SHIFT LEVER REPLACEMENT .
Put the shift lever in the NEUTRAL position.
Install the ignition lock cylinder case. Refer to IGNITION LOCK CYLINDER CASE REPLACEMENT (TILT COLUMN) or IGNITION LOCK CYLINDER CASE REPLACEMENT (STANDARD COLUMN) .
Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
