Installation Procedure

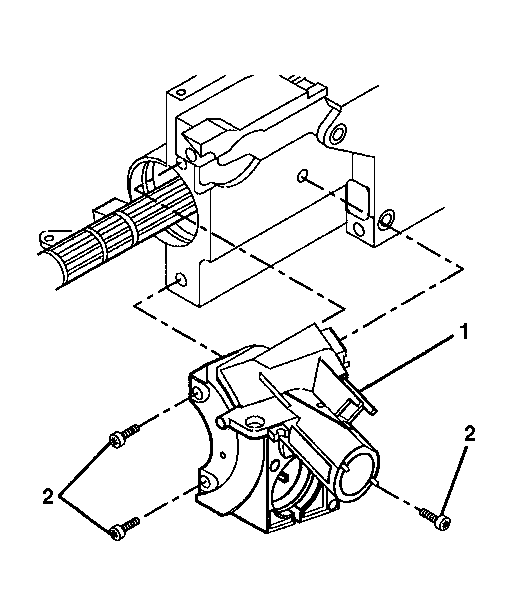

    Fig 1: Electronic Lock Module & Mounting Screws
    GM306295Courtesy of GENERAL MOTORS COMPANY
  1. Install the electronic lock module (1) to the steering column housing.
  2. Install the electronic lock module(1) mounting screws (2).
    3. Fig 2: Ignition Switch, Electronic Lock Module & J 42759
    GM664261Courtesy of GENERAL MOTORS COMPANY
  3. Install the ignition switch (2) to the electronic lock module (2).
  4. Install the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement - On Vehicle .
    5. Fig 3: Identifying Key Alarm Connector At Ignition Lock Cylinder Case
    GM306267Courtesy of GENERAL MOTORS COMPANY
  5. Connect the passlock electrical connector from the lock module
  6. Rotate the key alarm switch connector to the electronic lock module.
    7. Fig 4: View Of Electric Park Lock & Ignition Lock Cylinder Case Assembly
    GM368489Courtesy of GENERAL MOTORS COMPANY
  7. Snap the electric park lock (2) onto the electronic lock module (1).(floorshift only)
    8. Fig 5: Electric Park Lock & Connector
    GM389654Courtesy of GENERAL MOTORS COMPANY
  8. Connect the electric park lock (1) electrical connector (2) (floorshift only).
    9. Fig 6: Identifying Park Lock Cable At Ignition Lock Cylinder
    GM324874Courtesy of GENERAL MOTORS COMPANY
  9. Install park lock cable (1) to the electronic lock module (column shift only).
    10. Fig 7: Shaft Lock Shield & Turn Signal Cancel Cam
    GM389656Courtesy of GENERAL MOTORS COMPANY
  10. Install the following parts to the steering shaft:
    1. Turn signal cancel cam (3)
    2. Shaft lock shield (4).

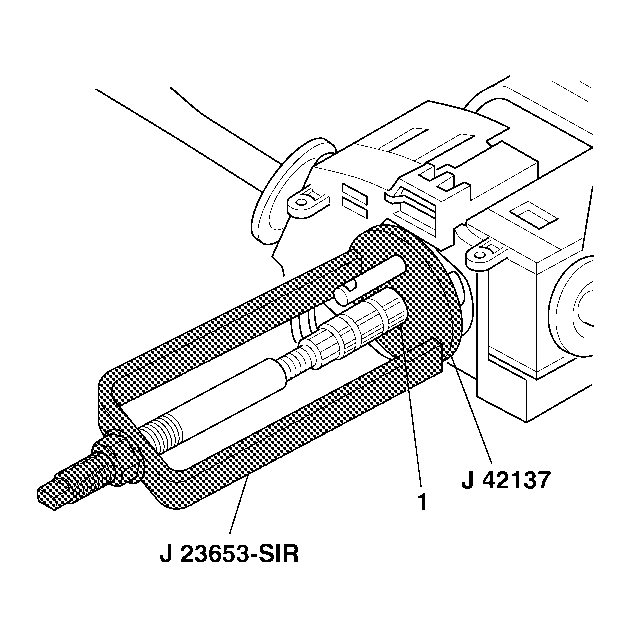

    11. Fig 8: View Of Bearing Retainer
    GM330127Courtesy of GENERAL MOTORS COMPANY
  11. Install the J 23653-SIR and J 42137  to the steering shaft and compress the shaft lock shield (2).
  12. Install the lock shield retainer to the steering column shaft.
  13. Remove the J 23653-SIR and J 42137  from the steering shaft.
  14. Install the SIR coil. Refer to Steering Wheel Airbag Coil Replacement .
  15. Enable the SIR system. Refer to Enabling the SIR System in SIR.
