Reassembly & Installation

WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Plymouth Grand Voyager, 1995 Dodge Grand Caravan, and 1995 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.
  1. To reassemble, reverse disassembly procedure. Ensure components are installed in original location. Tighten the screws for pump cover and plug for relief plunger to specification. Refer to TORQUE SPECIFICATIONS .
  2. If crankshaft front seal was removed from oil pump case, use Seal Installer (MB998306) to install NEW seal. Lubricate lip of seal with oil before installing oil pump.
  3. To install, reverse the removal procedure using NEW gasket. Ensure the proper length bolts are installed in the correct locations. Refer to Fig. Fig 1. Tighten the bolts to specification. Refer to TORQUE SPECIFICATIONS .

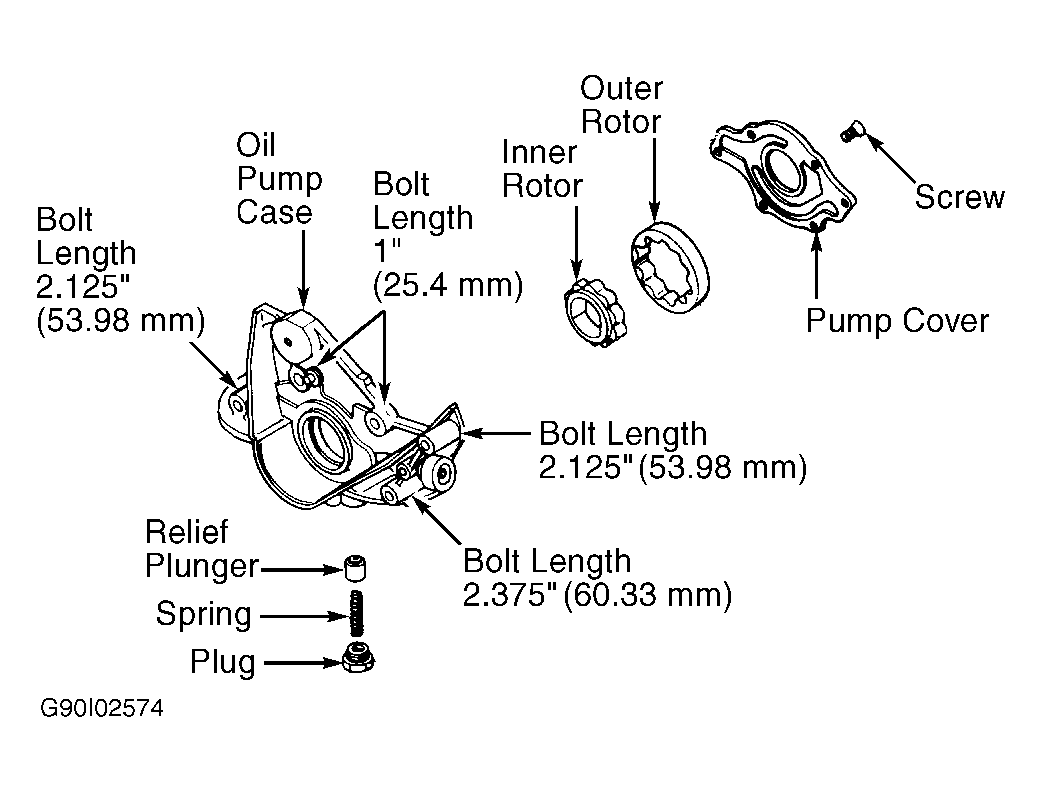

Fig 1: Identifying Bolt Locations & Oil Pump Components
G90I02574Courtesy of CHRYSLER CORP.
