Intermediate Shaft Specifications: Installation

WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Dodge Dakota, and 1995 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse removal procedure. Lubricate distributor drive gear before installing. Apply a 1/16" bead of anaerobic gasket sealant on seal retainer before installing.

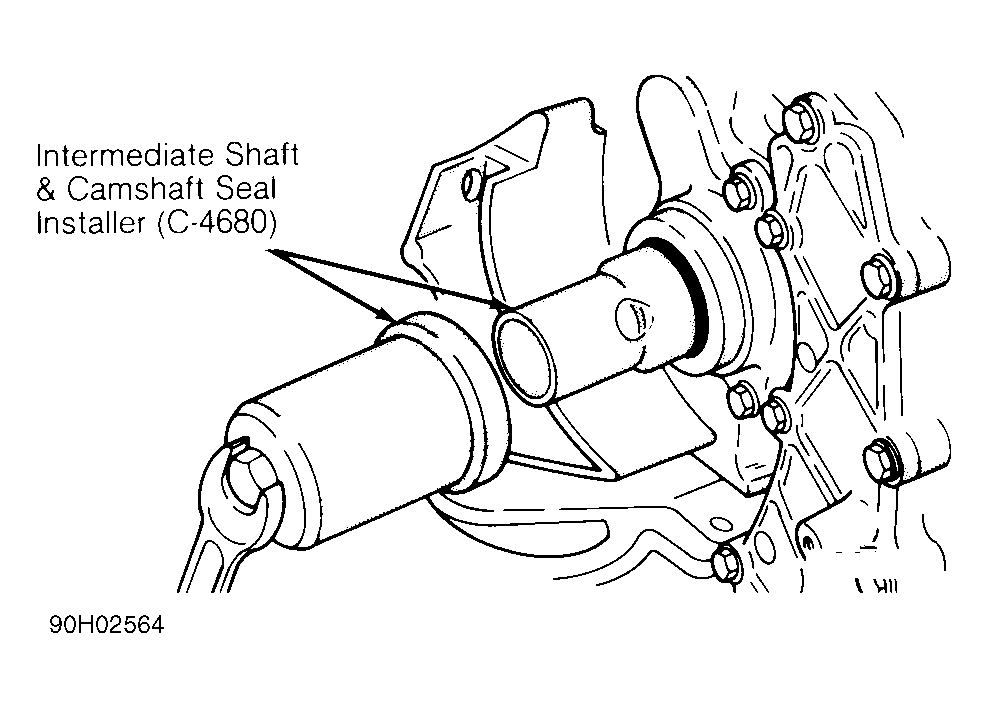

  2. Install seal retainer, and tighten bolts to specification. See TORQUE SPECIFICATIONS . Using Intermediate Shaft/Camshaft Seal Installer (C-4680), install seal until even with surface. See Figure. To complete installation, reverse removal procedure.
