Quick Release Coupling

WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
NOTE: Type 1
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to:Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD822753Courtesy of FORD MOTOR COMPANY
    GFD822754Courtesy of FORD MOTOR COMPANY

    Connect

  3. Push the quick release coupling onto the tube.
    GFD822755Courtesy of FORD MOTOR COMPANY
  4. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

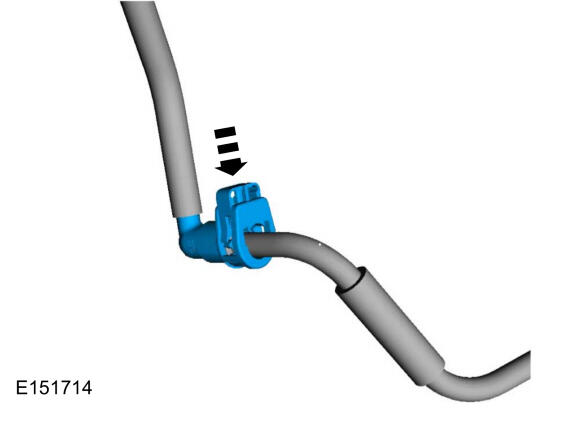

    GFD822756Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 2
  6. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  7. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822757Courtesy of FORD MOTOR COMPANY
    GFD822758Courtesy of FORD MOTOR COMPANY

    Connect

    GFD822759Courtesy of FORD MOTOR COMPANY
    GFD822760Courtesy of FORD MOTOR COMPANY
  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 3
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822761Courtesy of FORD MOTOR COMPANY

    Connect

    GFD822762Courtesy of FORD MOTOR COMPANY
    GFD822763Courtesy of FORD MOTOR COMPANY
  11. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 4
  12. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  13. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822764Courtesy of FORD MOTOR COMPANY
    GFD822765Courtesy of FORD MOTOR COMPANY

    Connect

    GFD822766Courtesy of FORD MOTOR COMPANY
  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 5
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  3. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD822767Courtesy of FORD MOTOR COMPANY
    GFD822768Courtesy of FORD MOTOR COMPANY

    Connect

    GFD822769Courtesy of FORD MOTOR COMPANY
  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 6
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  6. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
  7. Press the tabs of the rear retainer clip and pull it to the outward position.
    GFD822770Courtesy of FORD MOTOR COMPANY
    GFD822771Courtesy of FORD MOTOR COMPANY

    Connect

  8. Pull on the quick release coupling to make sure it is securely fastened.
    GFD822772Courtesy of FORD MOTOR COMPANY
  9. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 7
  10. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  11. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822773Courtesy of FORD MOTOR COMPANY
    GFD822774Courtesy of FORD MOTOR COMPANY

    Connect

  1. Pull on the quick connect coupling to make sure it is securely fastened.
    GFD822775Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 8
  3. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  4. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822767Courtesy of FORD MOTOR COMPANY
    GFD822768Courtesy of FORD MOTOR COMPANY

    Connect

    GFD822769Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 9
  6. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  7. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    1. Release the secondary locking tab.
    2. Press the primary locking tab.
    3. Separate the quick release coupling from the tube.
    GFD822776Courtesy of FORD MOTOR COMPANY

    Connect

    1. Push the quick release coupling onto the tube.
    2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.

    GFD822777Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 10
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    1. Push on the locking tab.
    2. Lift the clip.
    GFD822778Courtesy of FORD MOTOR COMPANY
    1. Press the tabs inward.
    2. Push the clip downward.
    3. Separate the quick release coupling from the fuel line.
    GFD822779Courtesy of FORD MOTOR COMPANY

    Connect

    1. Push the quick release coupling onto the tube.
    2. Push the clip down into the quick release coupling.
    3. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD822780Courtesy of FORD MOTOR COMPANY
  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 11
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822781Courtesy of FORD MOTOR COMPANY

    Connect

  3. GFD822781Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 12
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822782Courtesy of FORD MOTOR COMPANY
    GFD822783Courtesy of FORD MOTOR COMPANY

    Connect

  2. GFD822784Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 13
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD822785Courtesy of FORD MOTOR COMPANY

    Connect

  6. GFD822786Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  7. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 14
  8. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  9. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822787Courtesy of FORD MOTOR COMPANY

    Connect

    GFD822788Courtesy of FORD MOTOR COMPANY
  10. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 15
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Press both retaining tabs inward and remove quick release coupling from fuel tube.
    GFD822789Courtesy of FORD MOTOR COMPANY

    Connect

  1. NOTE: Inspect and clean both quick release coupling ends.

    Install the quick release coupling onto the tube until it is fully seated.

    GFD822790Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 16
  3. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  4. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822791Courtesy of FORD MOTOR COMPANY

    Connect

  5. GFD822791Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  6. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 17
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822792Courtesy of FORD MOTOR COMPANY

    Connect

  1. GFD822793Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 18
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  3. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822794Courtesy of FORD MOTOR COMPANY

    Connect

  4. GFD822795Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 19
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822796Courtesy of FORD MOTOR COMPANY

    Connect

  3. GFD822797Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 20
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  6. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD822798Courtesy of FORD MOTOR COMPANY

    Connect

  7. GFD822799Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 21
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822800Courtesy of FORD MOTOR COMPANY

    Connect

  1. GFD822801Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 22
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  3. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822802Courtesy of FORD MOTOR COMPANY

    Connect

    GFD822803Courtesy of FORD MOTOR COMPANY
  4. GFD822804Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  5. NOTE: Make sure that all fuel connections are checked for leaks.
    NOTE: This step is only necessary if a new component is installed.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD822805Courtesy of FORD MOTOR COMPANY
  6. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 23
  7. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822806Courtesy of FORD MOTOR COMPANY

    Connect

  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD822807Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 24
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822808Courtesy of FORD MOTOR COMPANY

    Connect

  2. GFD822809Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 25
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    1. Press the clip into the quick release coupling.
    2. Separate the quick release coupling from the tube.
    GFD822810Courtesy of FORD MOTOR COMPANY

    Connect

  7. GFD822811Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  8. Connect the battery ground cable. Refer to:BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 26
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
  1. GFD822812Courtesy of FORD MOTOR COMPANY

    Connect

    1. Remove the quick release coupling from the tube.

  2. GFD822813Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. Connect the battery ground cable. Refer to:BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 27
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    GFD822814Courtesy of FORD MOTOR COMPANY
  1. Remove the quick release coupling from the tube.
    GFD822815Courtesy of FORD MOTOR COMPANY

    Connect

  1. GFD822816Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Quick connect retainer clip is a serviceable part and can be replaced if it is lost during assembly.
    NOTE: Type 28
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
    1. Dislodge the clip.
    2. Pulling out the clip upward.

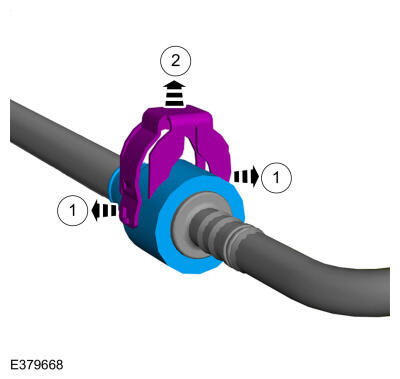

    GFD822817Courtesy of FORD MOTOR COMPANY
  3. Remove the tube.

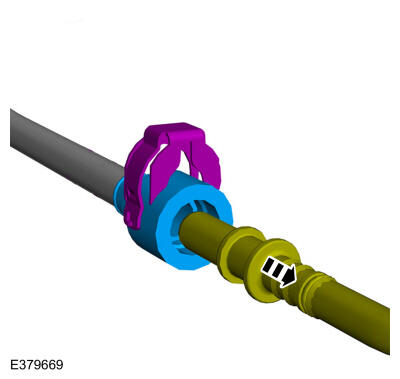

    GFD822818Courtesy of FORD MOTOR COMPANY

    Connect

  4. Insert the tube.

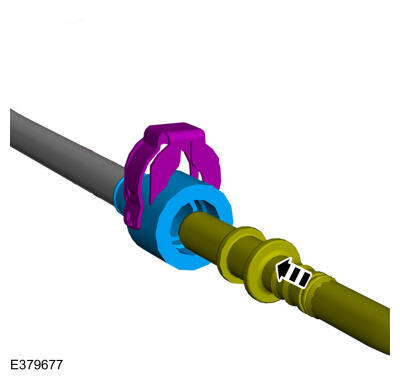

    GFD822819Courtesy of FORD MOTOR COMPANY
  5. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

    GFD822820Courtesy of FORD MOTOR COMPANY
  6. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
    NOTE: Quick connect retainer clip is a serviceable part and can be replaced if it is lost during assembly.
    NOTE: Type 29
  7. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release
  8. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
  1. Detach the retainer and then rotate counter-clockwise.

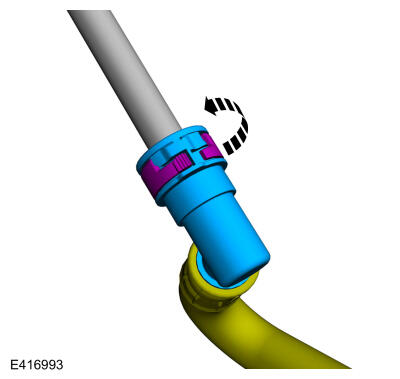

    GFD822821Courtesy of FORD MOTOR COMPANY
  1. Remove the tube.

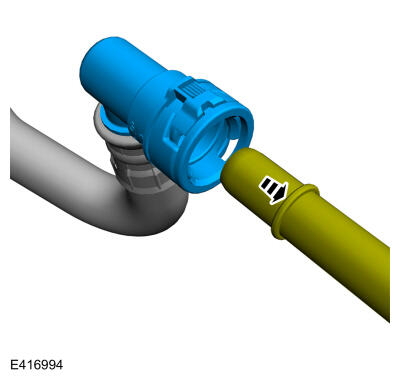

    GFD822822Courtesy of FORD MOTOR COMPANY

    Connect

  2. Insert the tube.

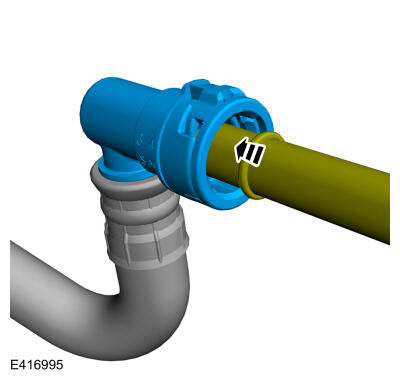

    GFD822823Courtesy of FORD MOTOR COMPANY
  3. Rotate the retainer clockwise into the quick release coupling and then position aside the original position.

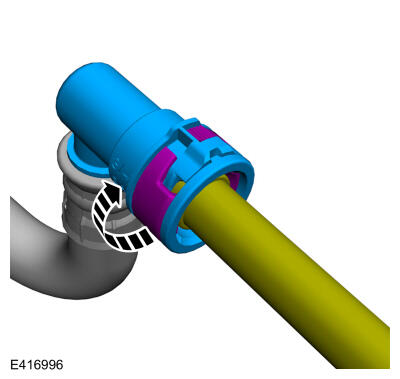

    GFD822824Courtesy of FORD MOTOR COMPANY
  4. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the quick release coupling body and rotate the retainer counter- clockwise until the tabs are locked in place.

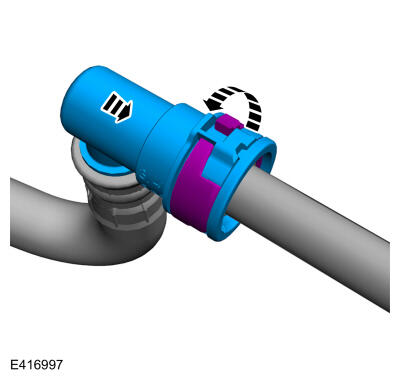

    GFD822825Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
scientia non olet · About LEMON Manuals
