Battery Disconnect and Connect

WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Disconnect

NOTE: If equipped, vehicles with an auxiliary battery(s) must be disconnected in addition to the main 12 volt battery to remove the 12 voltage from the vehicle or vehicle damage may occur.
NOTE: When the battery is disconnected and connected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven to allow the PCM to relearn the adaptive strategy values.
NOTE: When disconnecting the battery to interrupt power to the vehicle electrical system, disconnect the battery ground cable(s). It is not necessary to disconnect the positive battery cable(s).
NOTE: Removal steps in this procedure may contain installation details.

Diesel/Flex Fuel - Ethanol/Gasoline

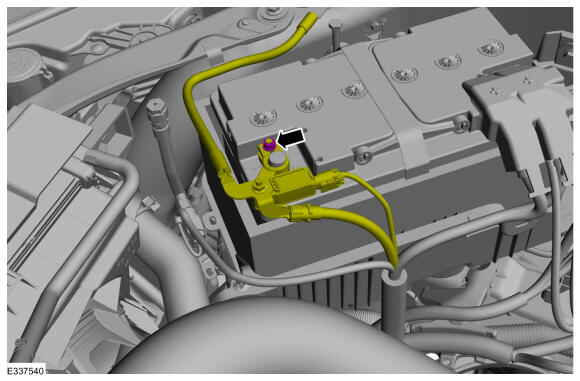

  1. NOTE: Make sure the positive battery terminal cover is in position while removing the negative battery cable clamp to prevent damage from a short to the positive terminal.
    NOTE: Be careful not to damage the battery monitoring sensor when removing the terminal from the battery post. Do not pry on the terminals or component damage may occur.

    Loosen, but do not remove the nut. Position the negative battery cable aside.

    Torque

    : 6.2 Nm

    GFD823328Courtesy of FORD MOTOR COMPANY

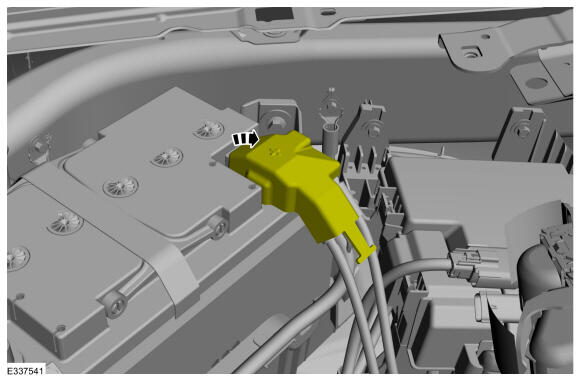

  2. Position the positive battery cable terminal cover aside.
    GFD823329Courtesy of FORD MOTOR COMPANY

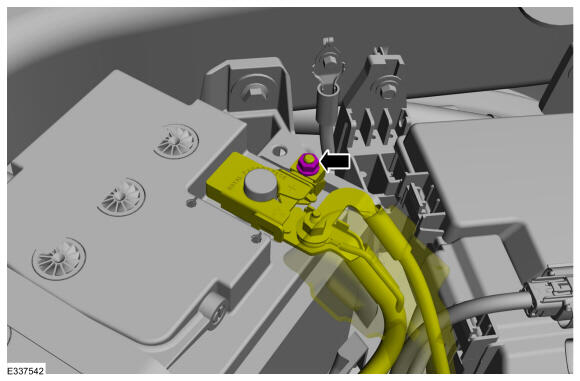

  3. Loosen, but do not remove the nut. Position the positive battery cable aside.

    Torque

    : 6.2 Nm

    GFD823330Courtesy of FORD MOTOR COMPANY

    Full Hybrid Electric Vehicle (FHEV)

    NOTE: If equipped, vehicles with an auxiliary battery(s) must be disconnected in addition to the main 12 volt battery to remove the 12 voltage from the vehicle or vehicle damage may occur.

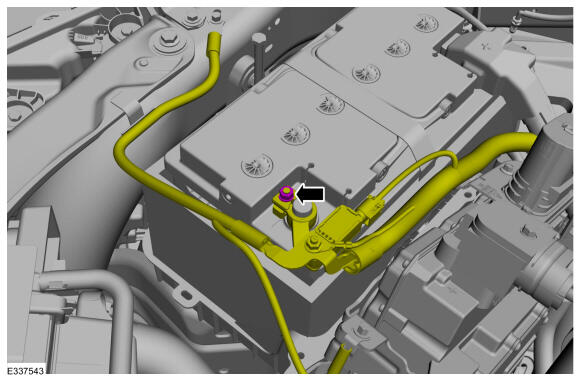

  4. NOTE: Make sure the positive battery terminal cover is in position while removing the negative battery cable clamp to prevent damage from a short to the positive terminal.
    NOTE: Be careful not to damage the battery monitoring sensor when removing the terminal from the battery post. Do not pry on the terminals or component damage may occur.

    Loosen, but do not remove the nut. Position the negative battery cable aside.

    Torque

    : 6.2 Nm

    GFD823331Courtesy of FORD MOTOR COMPANY

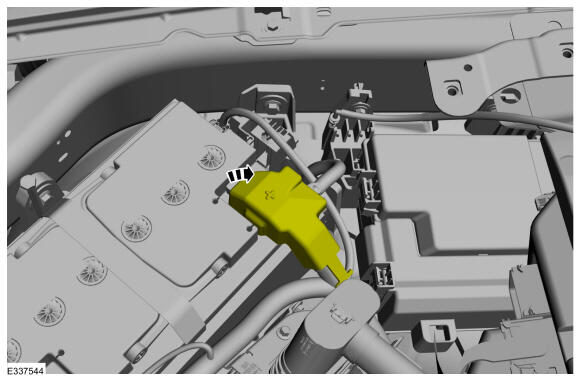

  5. Position the positive battery cable terminal cover aside.
    GFD823332Courtesy of FORD MOTOR COMPANY

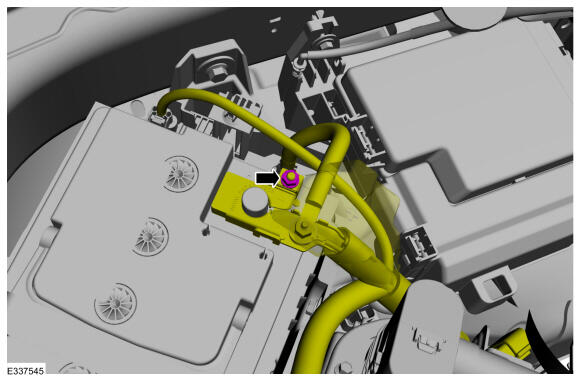

  6. Loosen, but do not remove the nut. Position the positive battery cable aside.

    Torque

    : 6.2 Nm

    GFD823333Courtesy of FORD MOTOR COMPANY

    Full Hybrid Electric Vehicle (FHEV)

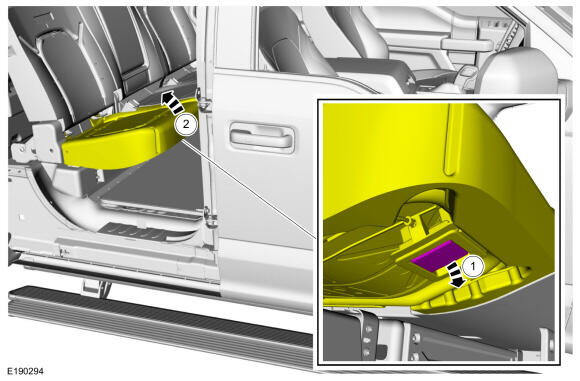

    1. Release the RH rear seat cushion latch.
    2. Position the RH rear seat cushion.
    GFD823334Courtesy of FORD MOTOR COMPANY

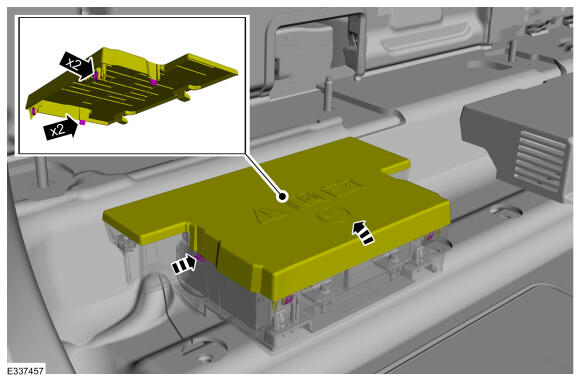

  8. Release the taps, clips and position aside the cover.
    GFD823335Courtesy of FORD MOTOR COMPANY

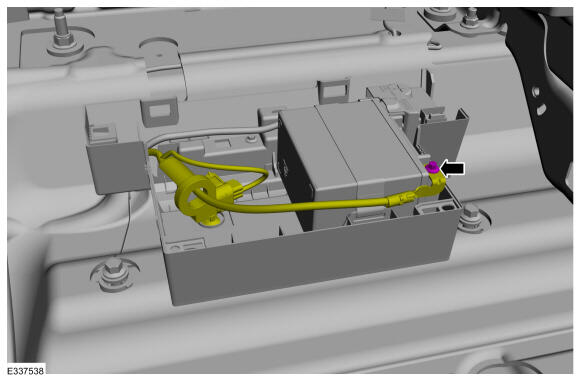

  9. NOTE: Make sure the positive battery terminal cover is in position while removing the negative battery cable clamp to prevent damage from a short to the positive terminal.

    Remove the bolt and position the negative battery cable aside.

    Torque

    : 6.2 Nm

    GFD823336Courtesy of FORD MOTOR COMPANY

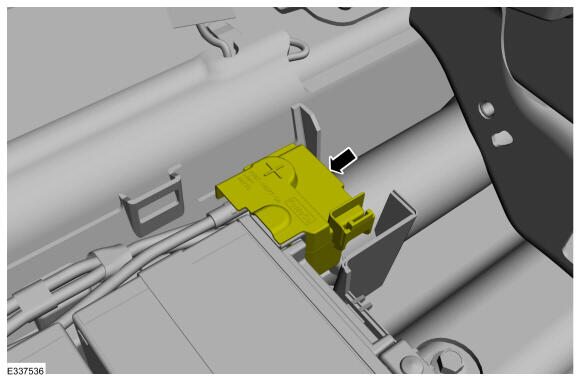

  10. Position the positive battery cable terminal cover aside.
    GFD823337Courtesy of FORD MOTOR COMPANY

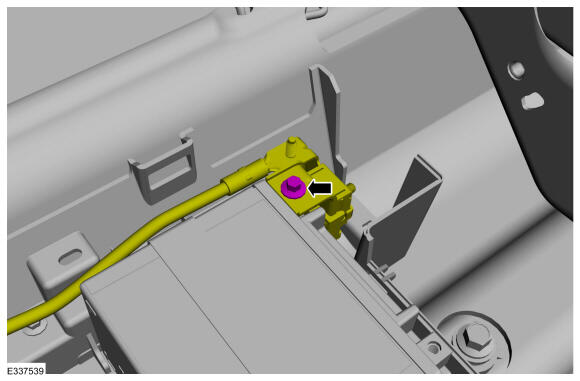

  11. Remove the bolt and position the positive battery cable aside.

    Torque

    : 6.2 Nm

    GFD823338Courtesy of FORD MOTOR COMPANY

    Diesel/Flex Fuel - Ethanol/Gasoline

    1. Release the RH rear seat cushion latch.
    2. Position the RH rear seat cushion.
    GFD823334Courtesy of FORD MOTOR COMPANY
  13. Release the taps, clips and position aside the cover.
    GFD823335Courtesy of FORD MOTOR COMPANY

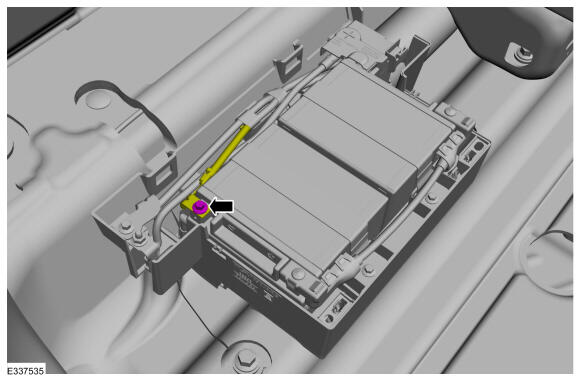

  14. NOTE: Make sure the positive battery terminal cover is in position while removing the negative battery cable clamp to prevent damage from a short to the positive terminal.

    Remove the bolt and position the negative battery cable aside.

    Torque

    : 6.2 Nm

    GFD823339Courtesy of FORD MOTOR COMPANY
  15. Position the positive battery cable terminal cover aside.
    GFD823337Courtesy of FORD MOTOR COMPANY

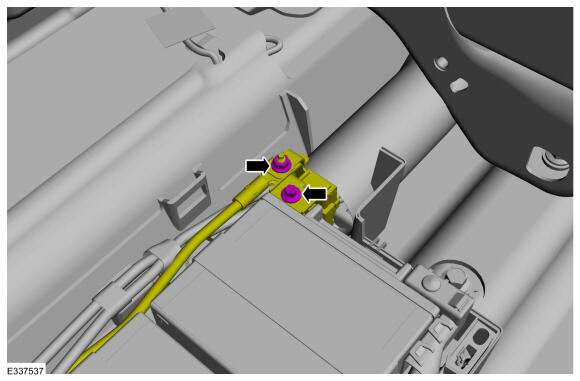

    • Remove the nut.

      Torque

      : 6.2 Nm

    • Remove the bolt and position the positive battery cable aside.

      Torque

      : 6.2 Nm

    GFD823340Courtesy of FORD MOTOR COMPANY

    Connect

  17. To connect, reverse the disconnect procedure.
