Turbocharger Coolant Supply Tube RH: Installation

Install a new turbocharger coolant return tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to: SPECIFICATIONS .

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components as needed.

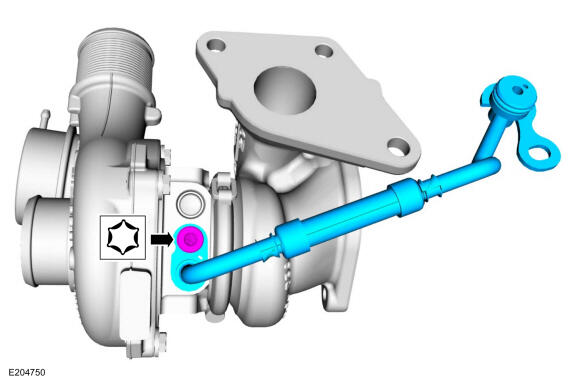

1. Install the turbocharger coolant supply tube to the turbocharger, then install and tighten the turbocharger coolant supply tube bolt.
  Material

  : Brake Cleaner

  Torque

  : 10 Nm
Courtesy of FORD MOTOR COMPANY
Install the turbocharger RH. Refer to: Turbocharger RH .
