Turbocharger Coolant Supply Tube LH: Installation

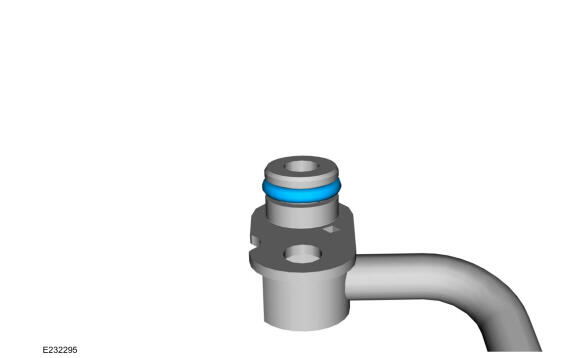

- Install a new turbocharger coolant supply tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to: SPECIFICATIONS
.
-
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components as needed.
Material
: Brake Cleaner

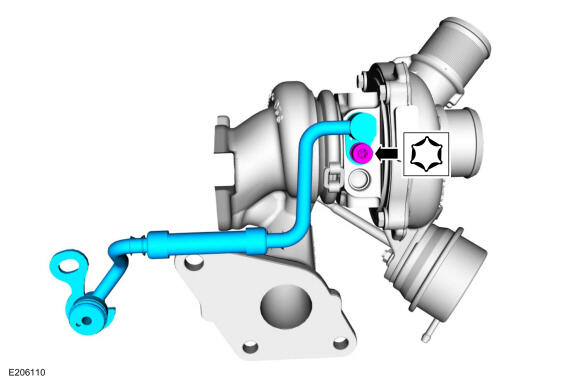

- Install the turbocharger coolant supply tube, then install and tighten the turbocharger coolant supply tube bolt.
Torque
: 10 Nm
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components as needed.
- Install the Turbocharger LH. Refer to: Turbocharger LH .
