Battery Cables - Electric Motor (C0): Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable(s).

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - 3.5L Duratec (202kW/275PS)/3.5L EcoBoost (235kW/320PS) - Overview .
Disconnect the battery/batteries. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
Remove the front driver seat. Refer to: Front Seat .

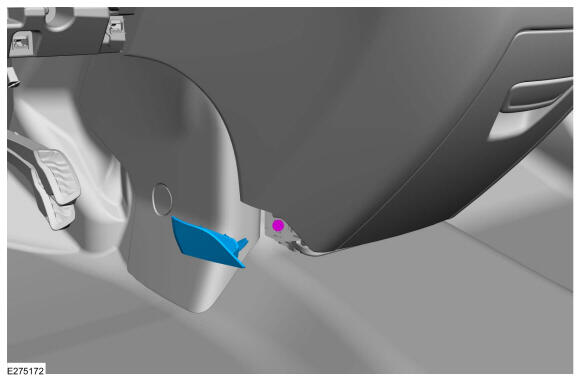

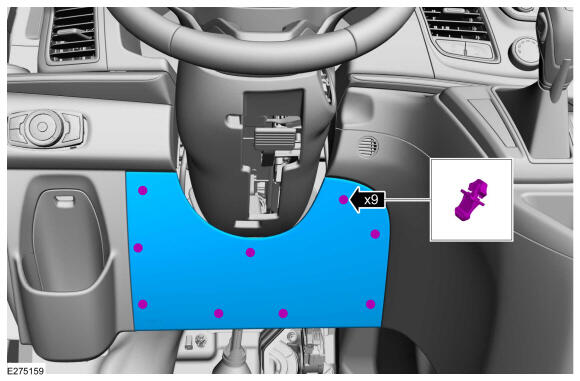

Release the clips and remove the lower steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY

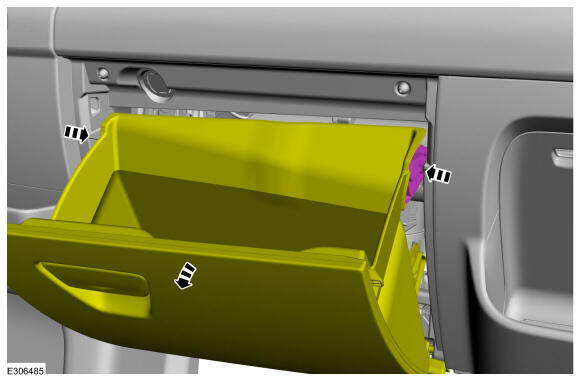

Press the stop tabs inward and fully lower the glove compartment.

Courtesy of FORD MOTOR COMPANY

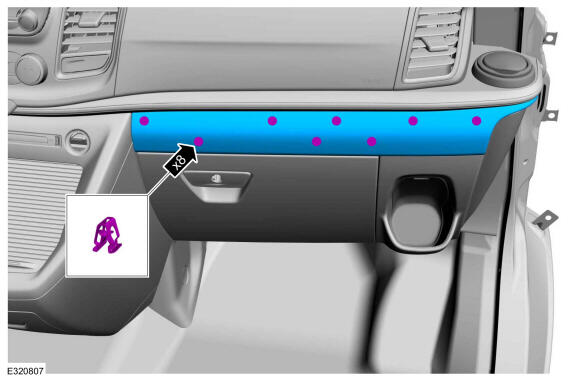

Release the clips and remove the trim panel.

Courtesy of FORD MOTOR COMPANY
On both sides.

Courtesy of FORD MOTOR COMPANY

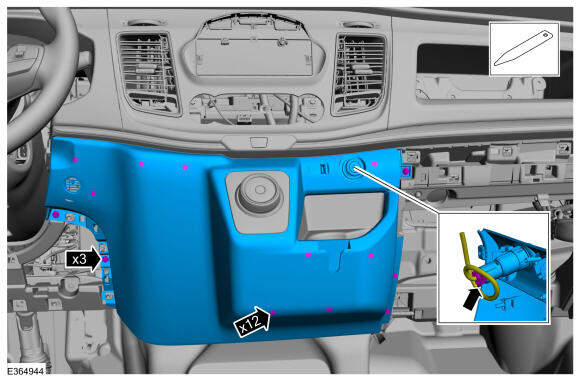

Remove the screws, release the clips, disconnect the electrical connector and remove the lower instrument panel trim panel.Install the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

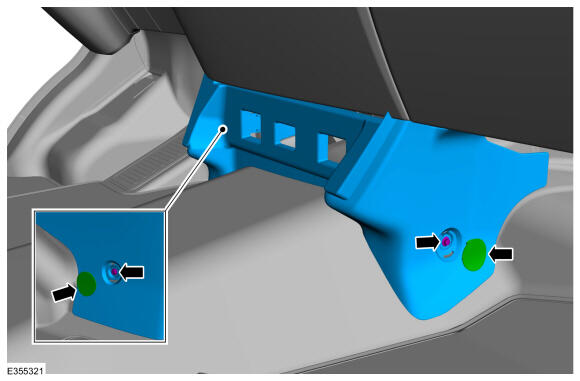

Remove the covers, screws and the lower center console trim panel.

Courtesy of FORD MOTOR COMPANY

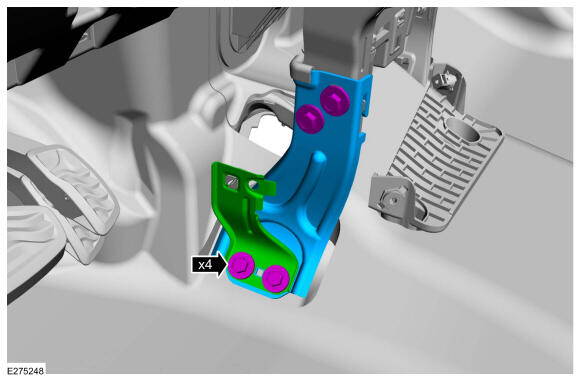

Remove the bolts and the support bracket.
Torque

: 18 Nm

Courtesy of FORD MOTOR COMPANY

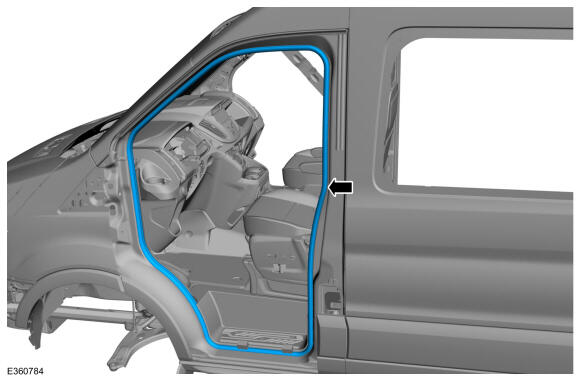

Remove the weatherstrip.

Courtesy of FORD MOTOR COMPANY

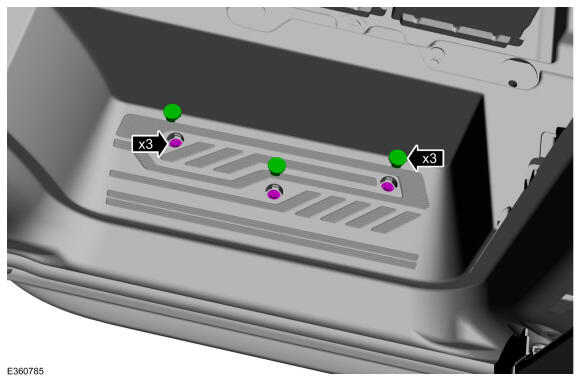

Remove the caps and the retainers.

Courtesy of FORD MOTOR COMPANY

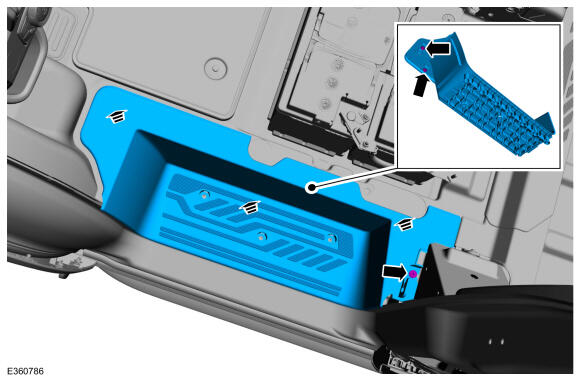

Release the trim pins and remove the driver door step.

Courtesy of FORD MOTOR COMPANY

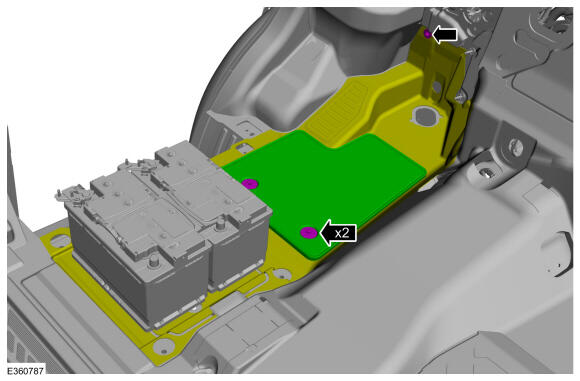

Remove the retainers and position the floor carpet aside to get access to the battery cables.

Courtesy of FORD MOTOR COMPANY

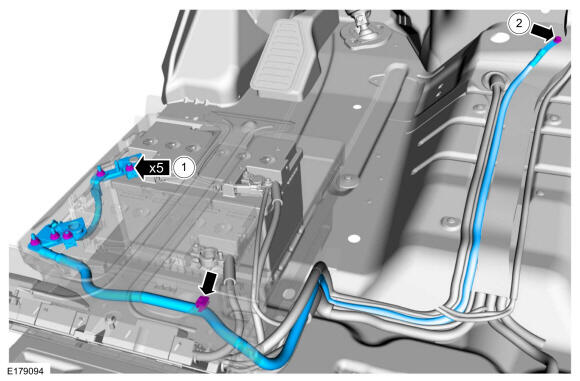

Negative battery cable - Dual batteries
1. Torque
  : 8 Nm
2. Torque
  : 22 Nm
Courtesy of FORD MOTOR COMPANY

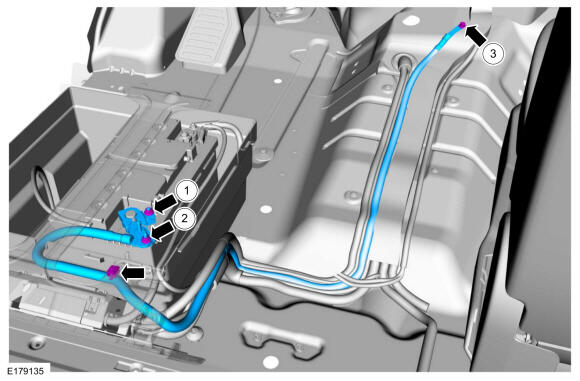

Negative battery cable - Single battery
1. Torque
  : 8 Nm
2. Torque
  : 8 Nm
3. Torque
  : 22 Nm
Courtesy of FORD MOTOR COMPANY

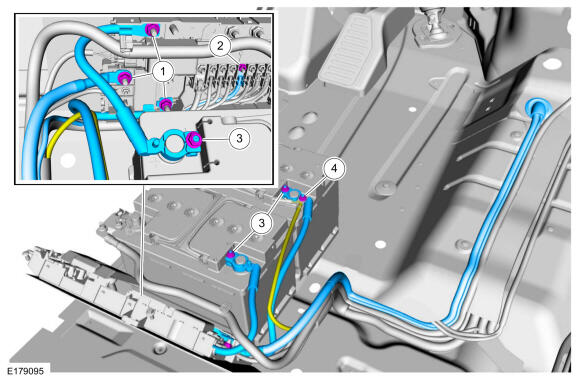

Positive battery cable - Dual batteries

NOTE: The high current BJB is serviced as an assembly with the main body harness and is not serviced separately.
1. Torque
  : 12 Nm
2. Torque
  : 5 Nm
3. Torque
  : 8 Nm
4. Torque
  : 8 Nm
Courtesy of FORD MOTOR COMPANY

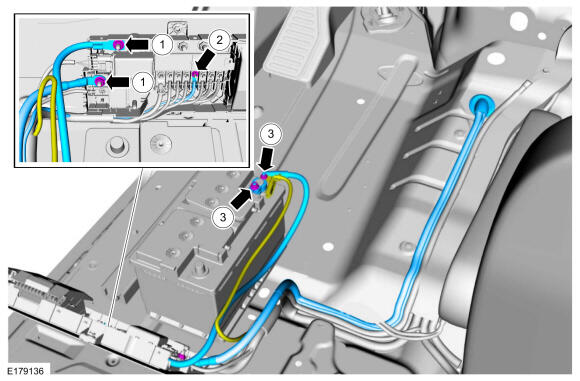

Positive battery cable - Single battery

NOTE: The high current BJB is serviced as an assembly with the main body harness and is not serviced separately.
1. Torque
  : 12 Nm
2. Torque
  : 5 Nm
3. Torque
  : 8 Nm
Courtesy of FORD MOTOR COMPANY

All vehicles
Courtesy of FORD MOTOR COMPANY

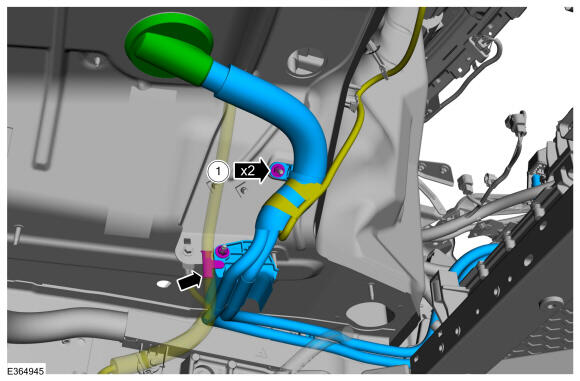

1. Torque
  : 10.5 Nm

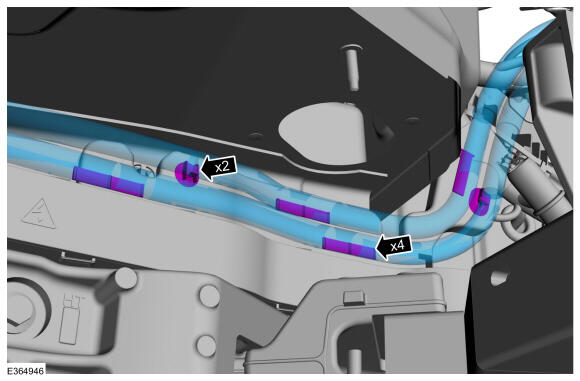

Release the wire guides.

Courtesy of FORD MOTOR COMPANY

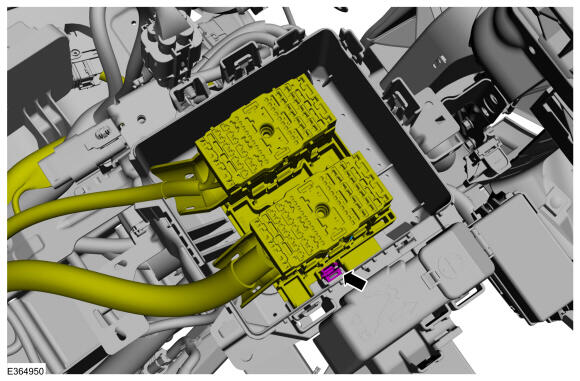

Disconnect the wire harness retaining bracket.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

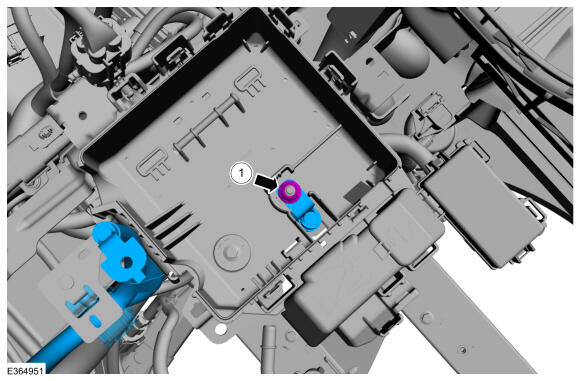

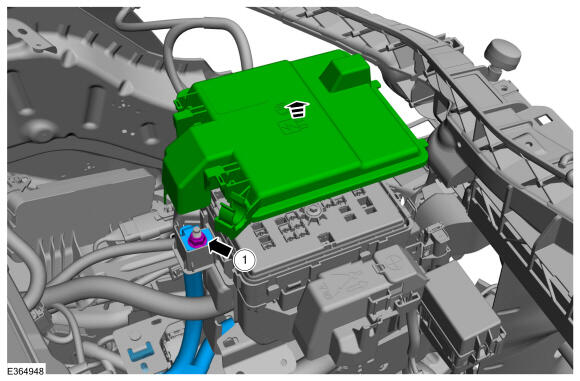

1. Torque
  : 12 Nm
Courtesy of FORD MOTOR COMPANY
1. Torque
  : 5.4 Nm

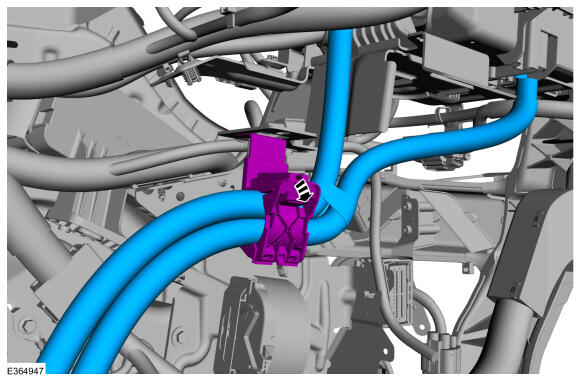

Release the tab and position aside the wire harness assembly.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

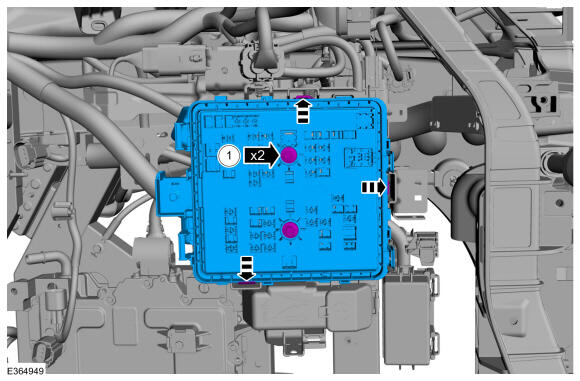

1. Torque
  : 12 Nm

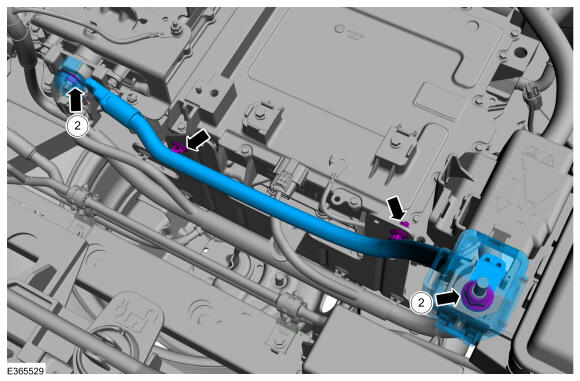

1. Torque
  : 12 Nm
2. Torque
  : 17.5 Nm

GFD840457
