Battery Disconnect and Connect - Vehicles With: Dual Batteries

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Depower

NOTE: Be careful not to damage the battery monitoring sensor when removing the terminal from the battery post. Do not pry on the terminals or component damage may occur.

NOTE: To interrupt power to the vehicle electrical system, disconnect the battery ground cable only. It is not necessary to disconnect the positive battery cable.

NOTE: Vehicles equipped with manual seats do not have a vertical seat adjustment.

NOTE: This step is only for electric vehicle.

De-energize the high voltage battery. Refer to: High Voltage System De-energizing .

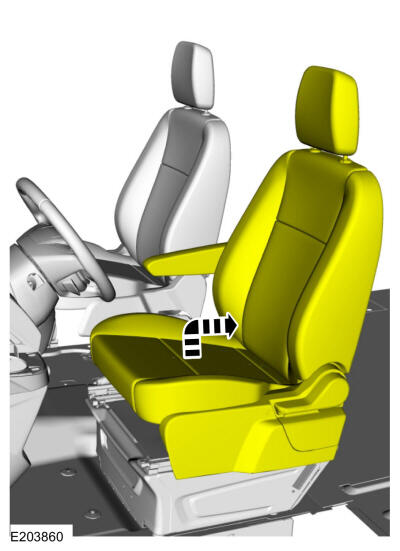

Raise and position the LH front seat forward.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the LH front seat rear trim panel.

Courtesy of FORD MOTOR COMPANY
1. Position the LH front seat backrest cover to release a retainer.
2. Position the LH front seat backrest cover.
Courtesy of FORD MOTOR COMPANY
NOTE: Seat not shown for clarity.
1. If equipped, position the battery cover insulator.
2. Remove the battery disconnect access cover.
Courtesy of FORD MOTOR COMPANY

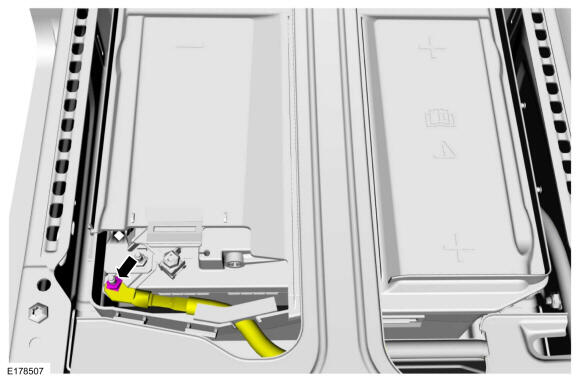

Remove the nut and position the battery cable.
Torque

: 8 Nm

Courtesy of FORD MOTOR COMPANY

Repower
To repower, reverse the depower procedure.
If equipped with one-touch up and one-touch down feature, perform the window motor initialization. Refer to: POWER DOOR WINDOW INITIALIZATION .
Disconnect

NOTE: Be careful not to damage the battery monitoring sensor when removing the terminal from the battery post. Do not pry on the terminals or component damage may occur.

NOTE: Do not remove the LH front seat front track stop bolts without removing battery hold-down bracket first or damage to the wiring harness may occur.
NOTE: This step is only for electric vehicle.

De-energize the high voltage battery. Refer to: High Voltage System De-energizing .
Raise and position the LH front seat forward.

Courtesy of FORD MOTOR COMPANY
Release the retainers and remove the LH front seat rear trim panel.

Courtesy of FORD MOTOR COMPANY

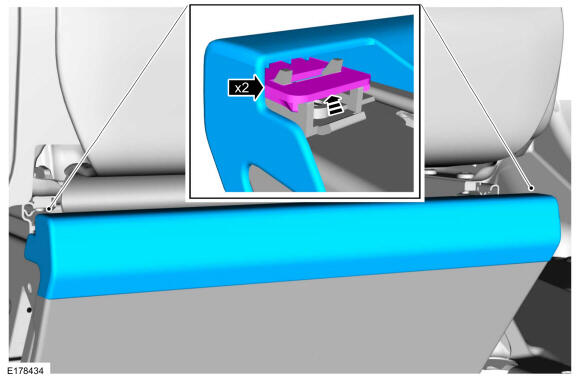

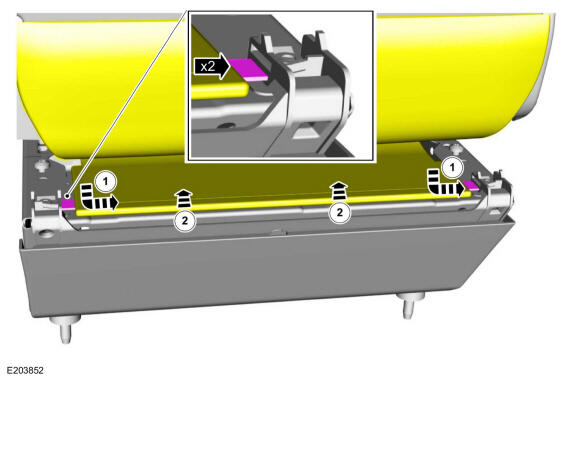

1. Position the LH front seat backrest cover and release a retainer.
2. Position the LH front seat backrest cover.
Courtesy of FORD MOTOR COMPANY

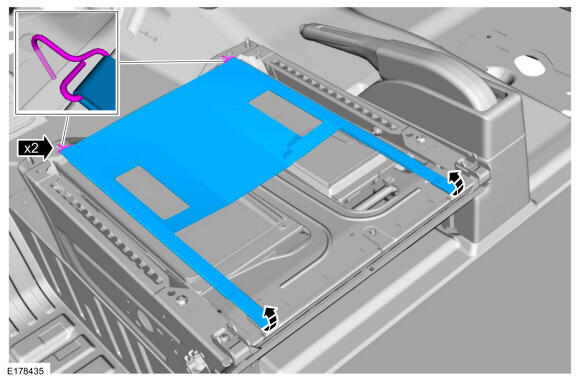

If equipped, remove the battery cover insulator.

Courtesy of FORD MOTOR COMPANY

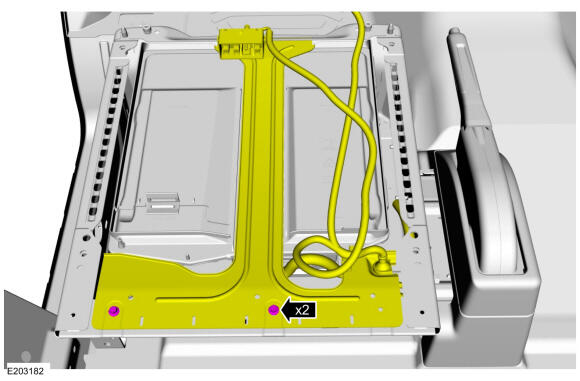

Remove the bolts and position the battery hold-down bracket.
Torque

: 10 Nm

Courtesy of FORD MOTOR COMPANY

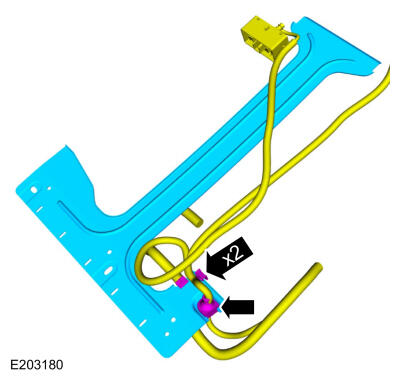

Release the wire harness retainers from the battery hold-down bracket.

Courtesy of FORD MOTOR COMPANY

Raise and position the LH front seat rearward.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not remove the seat track mounting bolts.

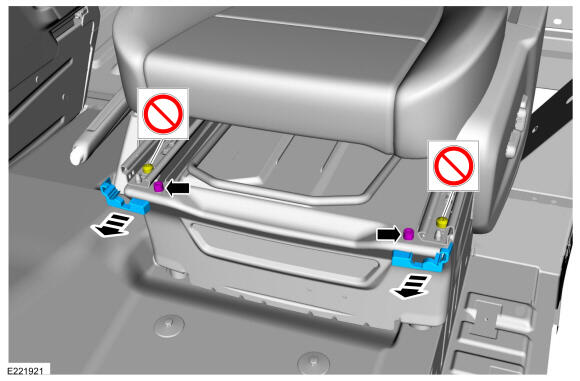

Remove the LH front seat track stop bolt covers and the bolts.

Torque

: 10 Nm

Courtesy of FORD MOTOR COMPANY

Raise and position the LH front seat forward.

Courtesy of FORD MOTOR COMPANY
NOTE: Seat not shown for clarity.

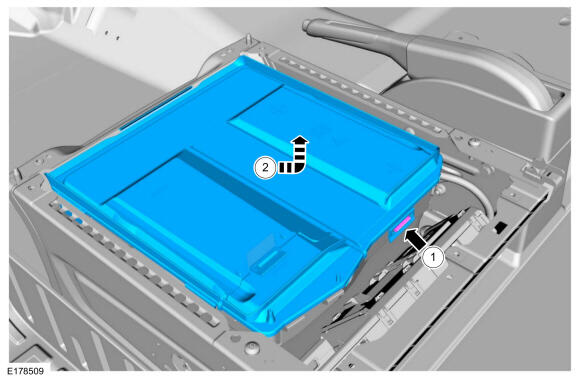

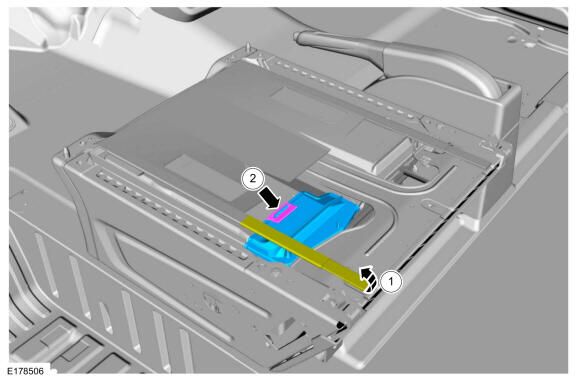

1. Release the battery cover latch.
2. Pull the battery cover rearward and remove the battery cover.
Courtesy of FORD MOTOR COMPANY

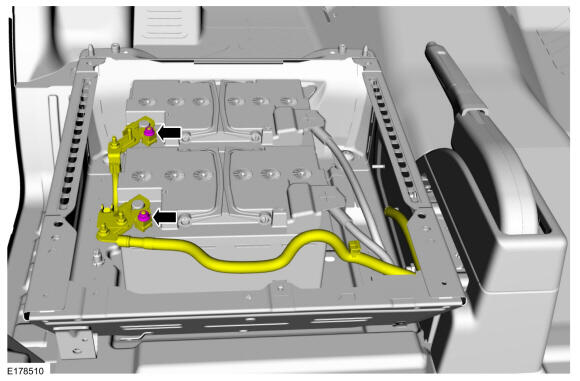

Loosen the nuts and position the negative battery cables.
Torque

: 8 Nm

Courtesy of FORD MOTOR COMPANY

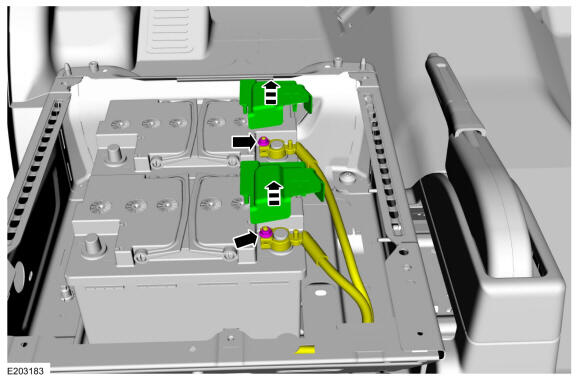

Remove the battery post covers. Loosen the nuts and position the positive battery cables.
Torque

: 8 Nm

Courtesy of FORD MOTOR COMPANY

Connect
To connect, reverse the disconnect procedure.
If equipped with one-touch up and one-touch down feature, perform the window motor initialization. Refer to: POWER DOOR WINDOW INITIALIZATION .
