Battery - Vehicles With: Dual Batteries: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the batteries. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
  2. Refer to: FRONT SEAT .

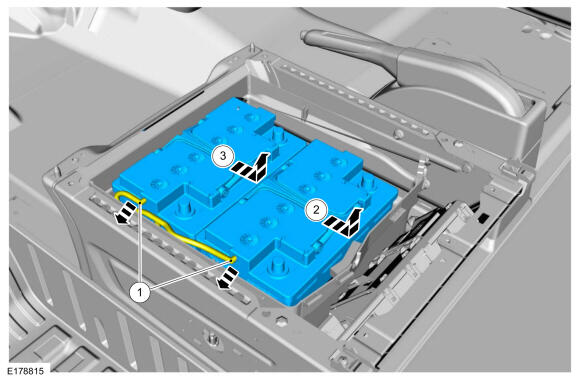

    1. Disconnect the battery vent hoses from the batteries.
    2. Remove the rear battery.
    3. Remove the front battery.
GFD840439Courtesy of FORD MOTOR COMPANY
