Fuel Pump and Sender Unit: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the fuel tank. Refer to: Fuel Tank .
- Disconnect the vapor tube and fuel feed line quick release couplings and position aside. Refer to: Quick Release Coupling
.
All vehicles
-
- If equipped, disconnect the auxiliary fuel line.
- Disconnect the vapor tube and fuel feed line quick release couplings and position aside. Refer to: Quick Release Coupling .
All vehicles
- Remove the nuts and the helmet.
-
NOTE: The fuel pump and sender unit must be handled carefully to avoid damage to the float arm.NOTE: To avoid introducing contamination into the fuel tank use compressed air to clean the fuel pump and sender unit connections, couplings, flange surfaces and the immediate surrounding area of any dirt or foreign material.NOTE: Some residual fuel may remain in the pump and sender unit. Carefully drain into a suitable container.

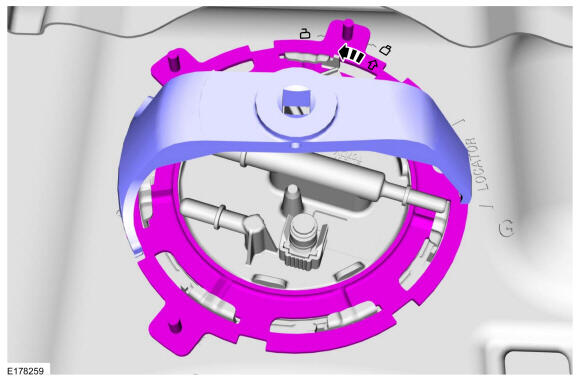

Using the special tool rotate the lock ring counter clockwise, remove the lock ring and the fuel pump and sender unit.Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.

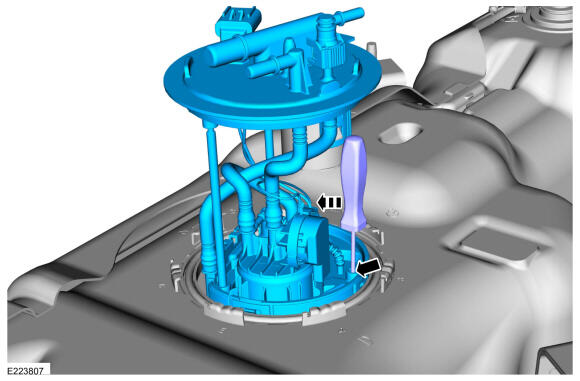

- If necessary, insert a screwdriver into the empty rod hole and slightly pull the screwdriver inboard until the base of the fuel pump and sender unit clears the mounting flange.
