Fuel Lines: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect CHARGING SYSTEM - (BATTERY, MOUNTING AND CABLES)
- With vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .

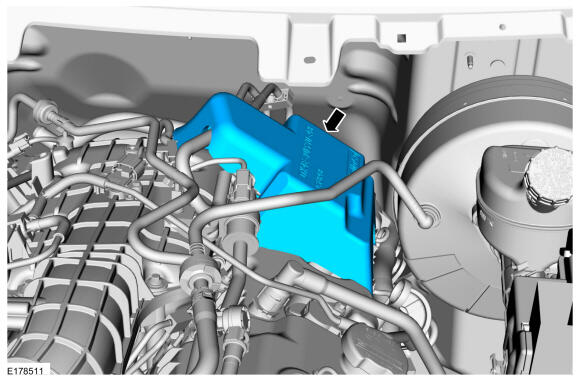

- Remove the high pressure fuel pump insulator shield.
-
NOTE: Wrap the fuel line connector with a shop towel to absorb any residual fuel pressure during the removal of the fuel line.

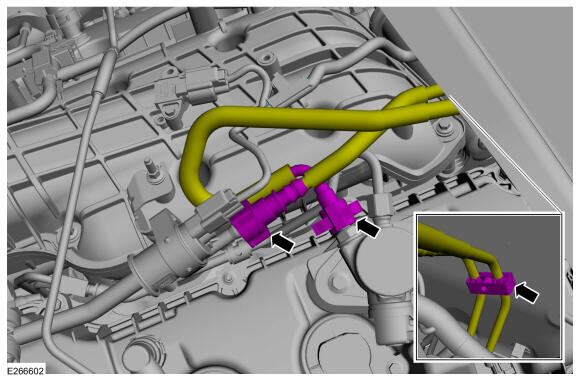

- Disconnect the fuel lines quick release couplings. Refer to: QUICK RELEASE COUPLING
- Release the fuel lines routing retainer.
- Disconnect the quick release coupling. Refer to: QUICK RELEASE COUPLING

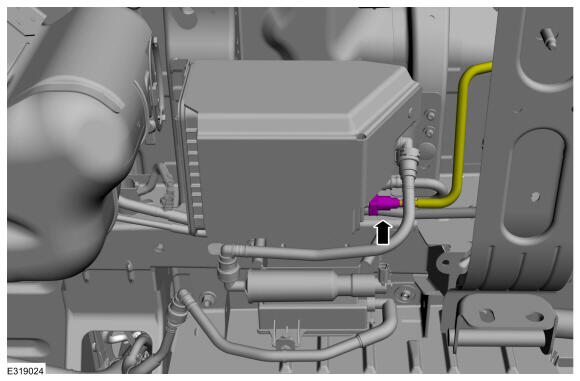

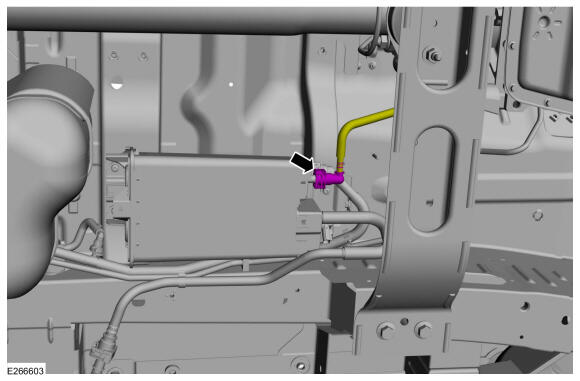

- Vehicle equipped with extended range fuel tankDisconnect the quick release coupling. Refer to: QUICK RELEASE COUPLING
-
NOTE: Vehicle body removed from art for clarity.NOTE: The fuel feed line should be removed from the bottom of the vehicle.

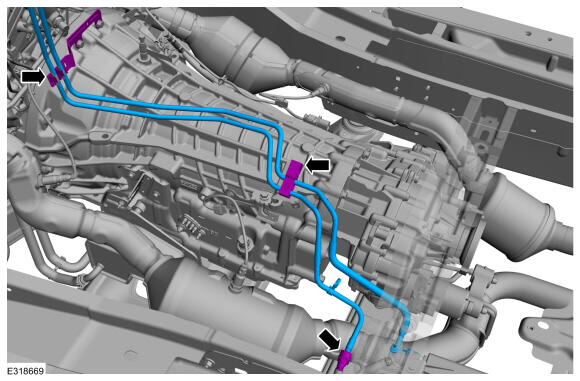

- Disconnect the fuel feed line quick release coupling. Refer to: QUICK RELEASE COUPLING
- Release the retainers and remove the fuel lines.
