Engine Mount LH: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine crossmember. Refer to: REMOVAL
    • Remove and discard the bolts.

      Torque: 30 Nm

    • Remove the LH engine mount.

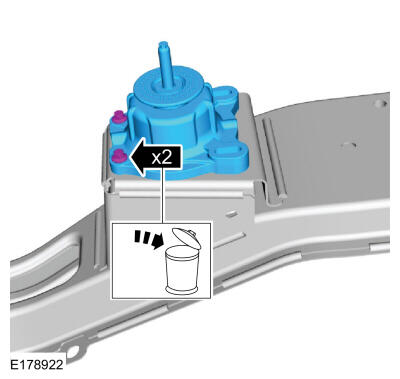

GFD837716Courtesy of FORD MOTOR COMPANY
