Engine Crossmember: Removal

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Jacking and Lifting .

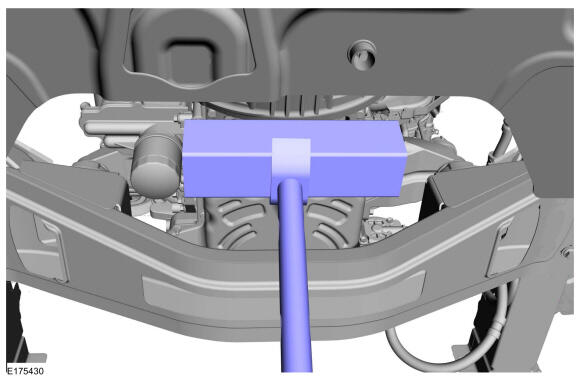

Use the General Equipment: Wooden Block. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

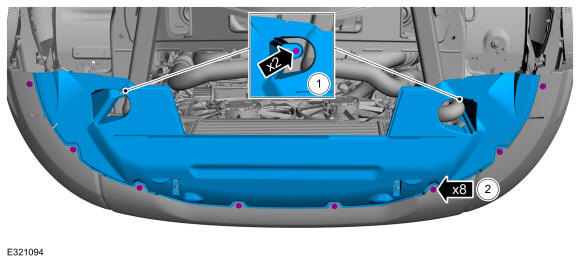

Remove the front lower air deflector.
Torque 1: 5 Nm

Torque 2: 4.8 Nm

Courtesy of FORD MOTOR COMPANY

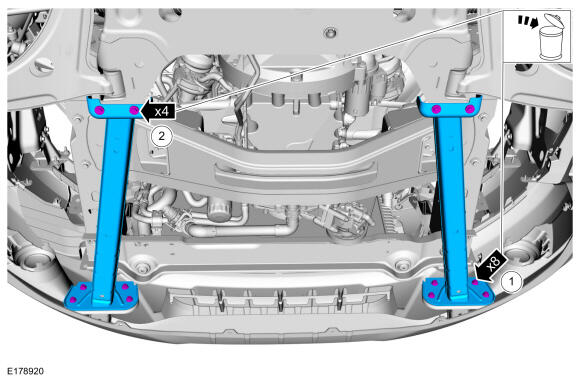

Remove and discard the lower load path bar retainers and remove the lower load path bars.
Torque 1: 55 Nm

Torque 2: 25 Nm

Courtesy of FORD MOTOR COMPANY

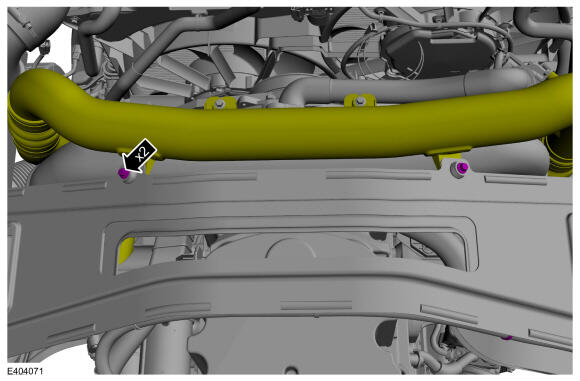

Remove the fasteners and position aside the charge air cooler (CAC) intake pipe.
Torque: 8 Nm

Courtesy of FORD MOTOR COMPANY

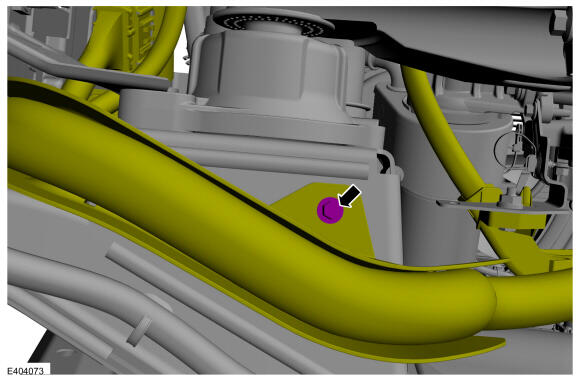

Remove the bolt and position aside the battery to starter motor wiring harness.
Torque: 12 Nm

Courtesy of FORD MOTOR COMPANY

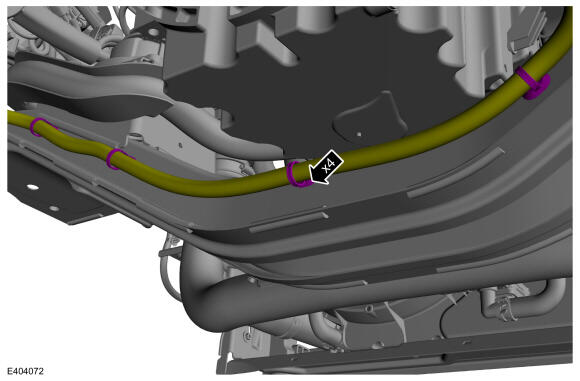

Remove the battery cable retainers from the engine crossmember.

Courtesy of FORD MOTOR COMPANY

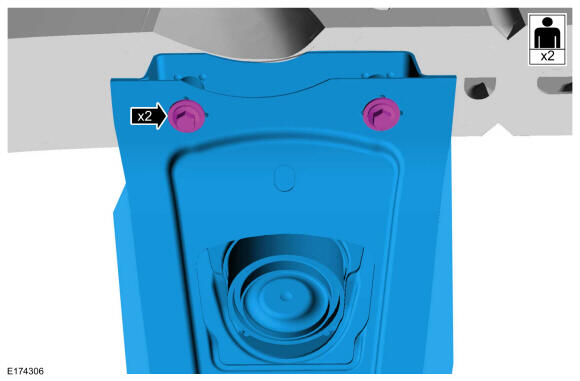

On both sides.
Torque: 103 Nm

Courtesy of FORD MOTOR COMPANY

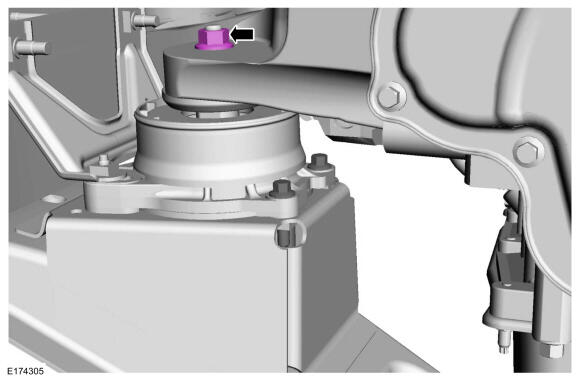

If equipped On both sides.

Courtesy of FORD MOTOR COMPANY

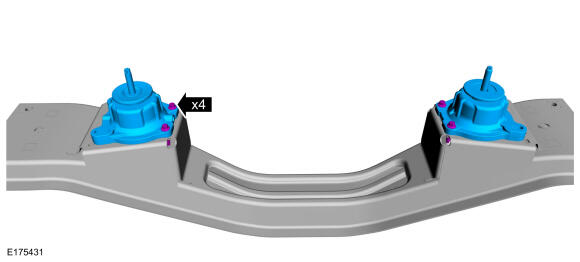

On both sides.
Torque: 30 Nm

Courtesy of FORD MOTOR COMPANY

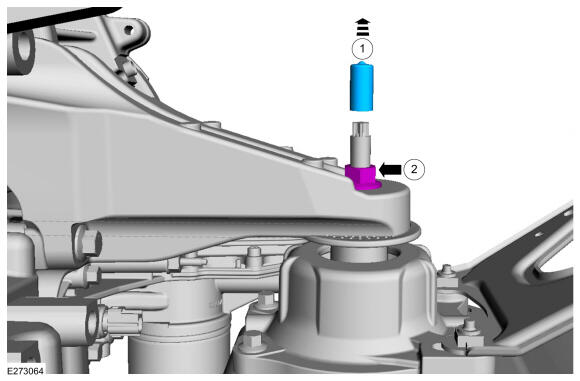

On both sides.
Torque: 70 Nm

Courtesy of FORD MOTOR COMPANY

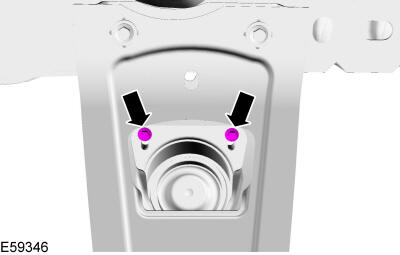

NOTE: This step is only necessary when installing a new component.

Torque: 30 Nm

Courtesy of FORD MOTOR COMPANY
