Cylinder Head RH: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for any debri before installing the water jacket.

Courtesy of FORD MOTOR COMPANY
Install the water jacket flush with the bottom of the block.

Courtesy of FORD MOTOR COMPANY

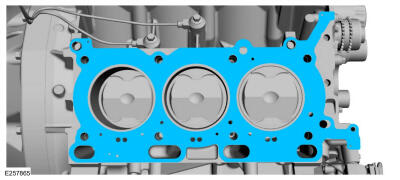

Install the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

NOTE: Install new cylinder head bolts.

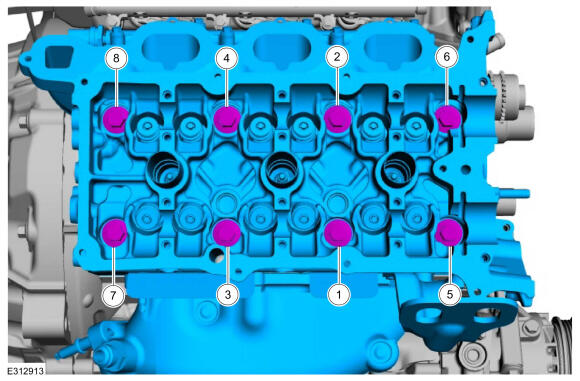

Install the cylinder head and the new bolts.

Torque: Stage 1: 20 Nm Stage 2: 35 Nm Stage 3: 90deg. Stage 4: 90deg. Stage 5: 45deg.

Courtesy of FORD MOTOR COMPANY

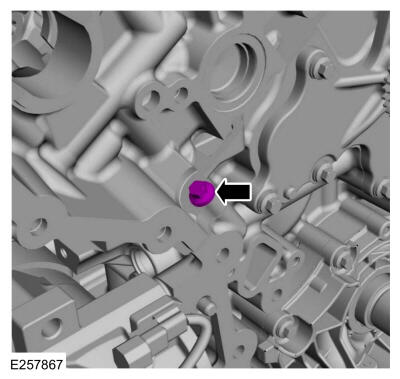

Install the M6 bolt.
Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY

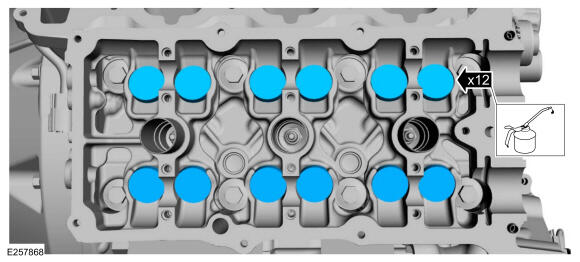

NOTE: The valve tappets must be installed in their original positions.

Lubricate the valve tappets with clean engine oil and install.

Courtesy of FORD MOTOR COMPANY

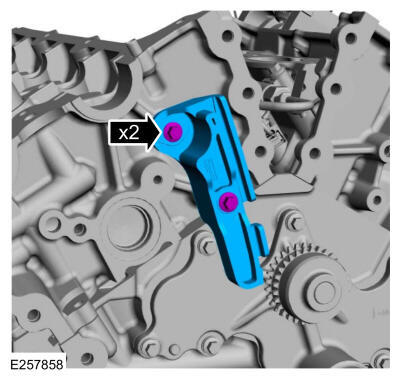

NOTE: Do not use power tools to remove the bolt or damage to the upper RH timing chain guide may occur.

Install the RH timing chain guide and the bolt.

Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the O-ring seals with clean engine oil.

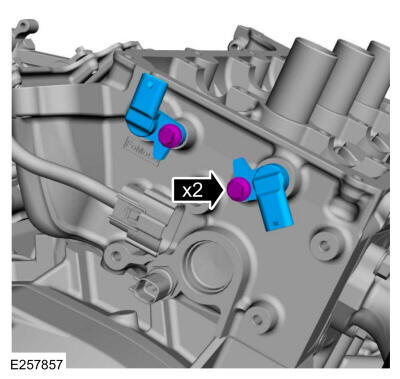

Install the CMP sensors and the bolts.

Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY

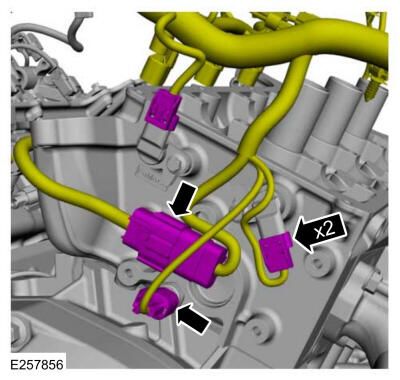

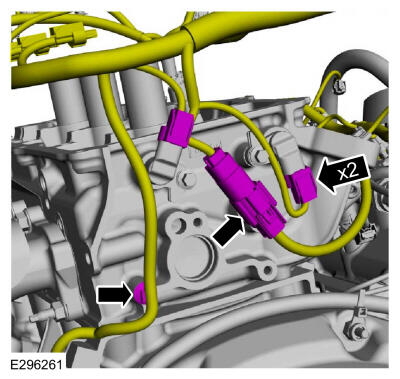

- Connect and attach the direct injection wiring harness electrical connector.
- Connect the RH CMP sensor electrical connectors.
- Connect the CHT sensor electrical connector.
Courtesy of FORD MOTOR COMPANY

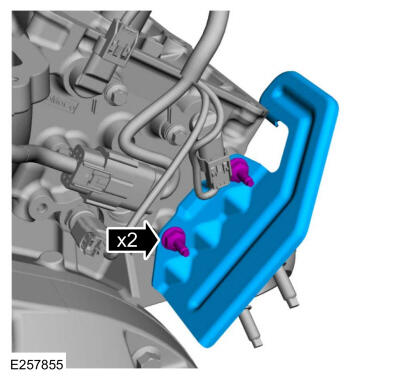

Install the heat shield and the stud bolts.
Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (75 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

NOTE: Make sure that a new high-pressure fuel tube is installed.

NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas.

Courtesy of FORD MOTOR COMPANY

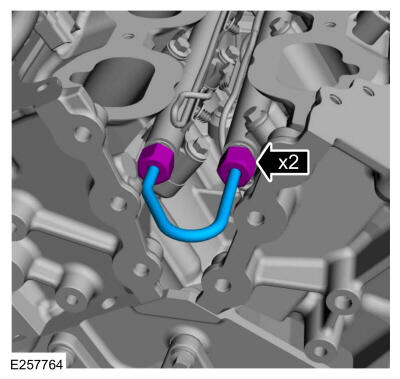

- Install the fuel rail to fuel rail high-pressure fuel tube and finger tight the flare nuts.
- Tighten the flare nuts in the following 3 stages.
  Torque: Stage 1: 7 Nm Stage 2: 10 Nm Stage 3: 30deg.
Courtesy of FORD MOTOR COMPANY
Install the RH camshafts. Refer to: Camshafts .

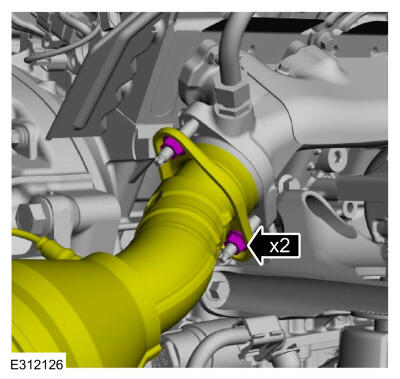

Position the RH catalytic converter and install new flange nuts.
Torque: 40 Nm

Courtesy of FORD MOTOR COMPANY

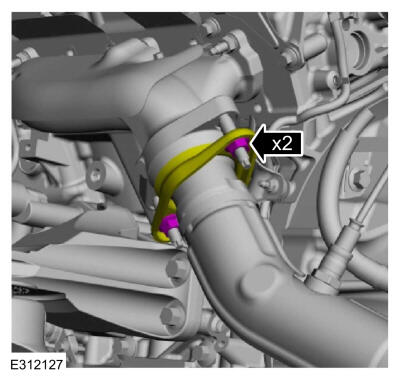

Install the LH catalytic converter flange and new nuts.
Torque: 40 Nm

Courtesy of FORD MOTOR COMPANY

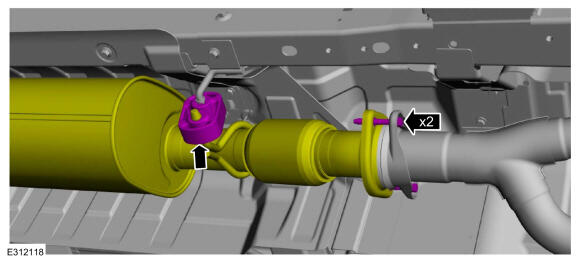

Attach the exhaust hanger and install the exhaust flange bolts.
Torque: 40 Nm

Courtesy of FORD MOTOR COMPANY
Connect the RH HO2S and catalyst monitor sensor.

Courtesy of FORD MOTOR COMPANY

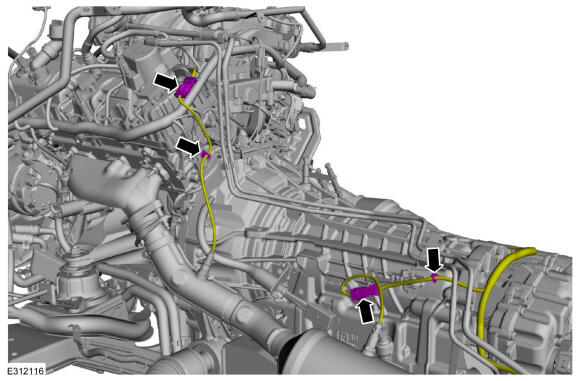

Connect the LH HO2S, catalyst monitor sensor and the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
- Remove the oil pan drain plug and drain the engine oil.Use the General Equipment: Oil Drain Equipment
- Install the oil pan drain plug.
  Torque: 27 Nm
Courtesy of FORD MOTOR COMPANY

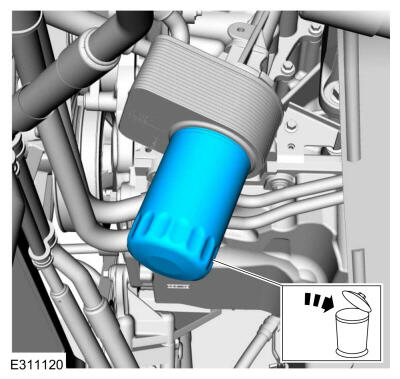

Remove and discard the engine oil filter.Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY
- Lubricate the oil filter seal with clean engine oil and install and tighten in 2 stages.
- Stage 1: Install to initial gasket contact.
- Stage 2: Tighten 3/4 to 1 turn.
Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling

Courtesy of FORD MOTOR COMPANY
Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY . Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES
Pressurize the fuel system pressure. Refer to: Fuel System Pressure Release .
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Start and check the exhaust system for leaks.
Road test the vehicle.
