Transmission Range (TR) Sensor: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the dual catalytic converter y-pipe Refer to: Dual Catalytic Converter Y-Pipe - RWD . Refer to: Dual Catalytic Converter Y-Pipe - AWD . Refer to: Dual Catalytic Converter Y-Pipe - RWD . Refer to: Dual Catalytic Converter Y-Pipe - AWD .
- Remove the main control valve body. Refer to: Main Control Valve Body .

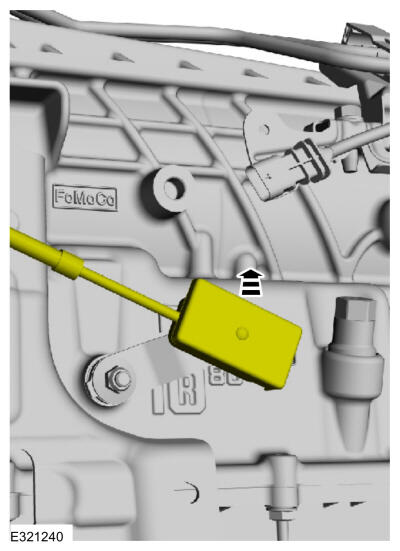

- Disconnect the selector lever cable from the transmission manual lever.
- Disconnect the TR sensor electrical connector and position the transmission wiring harness aside.

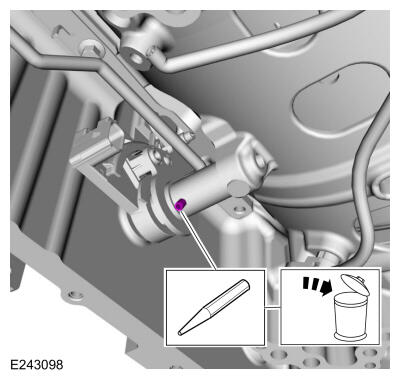

- Using a punch, remove and discard the manual shaft-to-TR sensor roll pin (7G100).Use the General Equipment: Punch

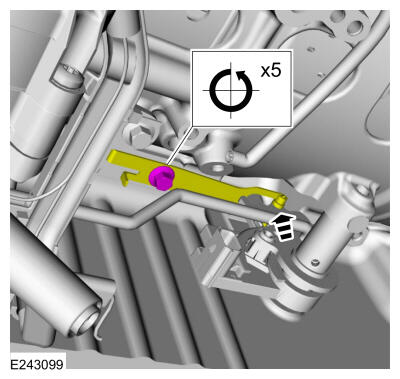

- Loosen the detent spring bolt and the detent spring enough to remove the tension from the TR sensor.

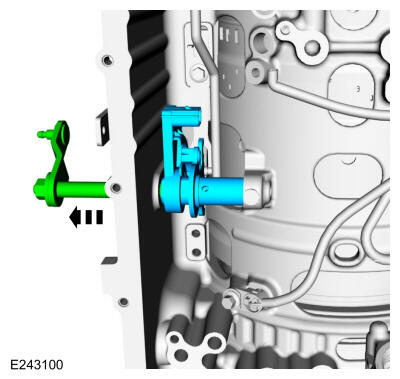

- Remove the manual shaft and selector lever from the TR sensor.
- Remove the TR sensor (7H557).

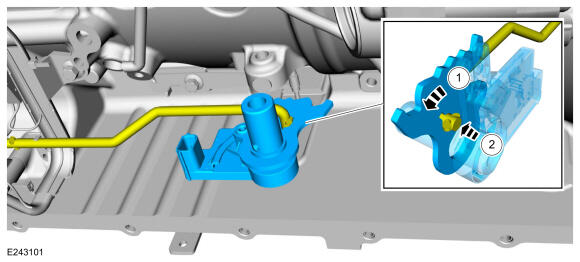

- Rotate the TR sensor.
- Disconnect the park pawl actuator rod and remove the TR sensor.
