Shift Solenoids (SS): Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

Solenoids A, B, C, and F

NOTE: Solenoids are calibrated from the factory and are not all the same. To replace a solenoid, match the band number with the original solenoid or harsh shifts or damage to the transmission can occur.

If new solenoids are needed, identify the solenoid band number.

Courtesy of FORD MOTOR COMPANY
Install the solenoid(s) in the main control valve body in the correct port(s) as marked during removal.
1. SSA (7J136)
2. SSF (7J136)
3. SSC (7J136)
4. SSB (7J136)
Courtesy of FORD MOTOR COMPANY

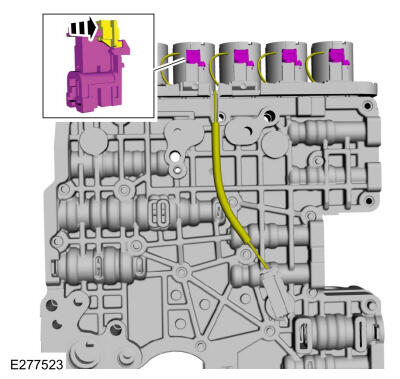

Connect the electrical connectors and slide the plastic lock to the locked position.

Courtesy of FORD MOTOR COMPANY

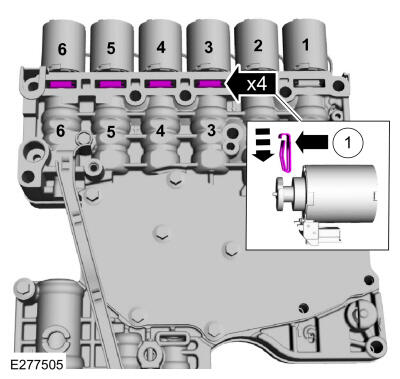

Install the new shift solenoid retainer(s) with the flat side towards the solenoids.
1. Retainer flat side
Courtesy of FORD MOTOR COMPANY
Install and the shift solenoid retaining plate and the bolts.
Torque: 12 Nm

Courtesy of FORD MOTOR COMPANY
Install the main control valve body. Refer to: Main Control Valve Body
Solenoids D and E
NOTE: Solenoids are calibrated from the factory and are not all the same. To replace a solenoid, match the band number with the original solenoid or harsh shifts or damage to the transmission can occur.

If new solenoids are needed, identify the solenoid band number.

Courtesy of FORD MOTOR COMPANY
Install the solenoid(s) in the main control valve body in the correct port(s) as marked during removal.
1. SSE (7J136)
2. SSD (7J136)
Courtesy of FORD MOTOR COMPANY

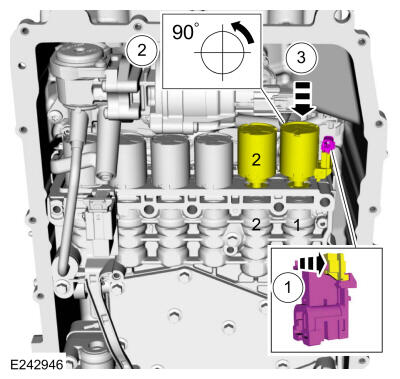

1. Connect the electrical connectors and slide the plastic lock to the locked position.
2. Rotate the solenoid(s) in a counter-clockwise direction.
3. Slide the solenoid(s) into the main control valve body bore.
Courtesy of FORD MOTOR COMPANY

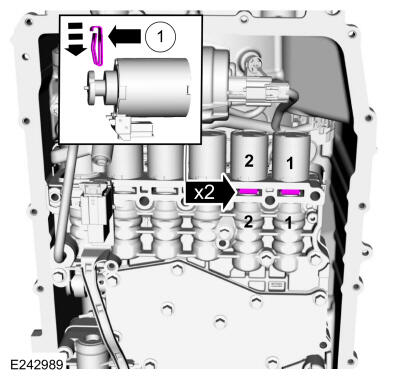

Install new shift solenoid retainer(s) with the flat side towards the solenoids.
1. Retainer flat side
Courtesy of FORD MOTOR COMPANY
Install and the shift solenoid retaining plate and the bolts.
Torque: 12 Nm

Courtesy of FORD MOTOR COMPANY

LPC (line pressure control) and TCC (torque converter clutch) Solenoids
NOTE: Solenoids are calibrated from the factory and are not all the same. To replace a solenoid, match the replacement solenoid type (normally high/normally low) and the band number with the original solenoid or harsh shifts or damage to the transmission can occur.

If new solenoids are needed, identify which type (normally high/normally low) of solenoid it is and the solenoid band number.

Courtesy of FORD MOTOR COMPANY
1. Inspect the solenoid screens for debris that may restrict fluid flow.
2. Lubricate the solenoid O-ring seals with clean transmission fluid. Refer to: SPECIFICATIONS .
Courtesy of FORD MOTOR COMPANY
Install the solenoid(s) in the main control valve body.
1. LPC solenoid (7G383)
2. TCC solenoid (7G136)
Courtesy of FORD MOTOR COMPANY

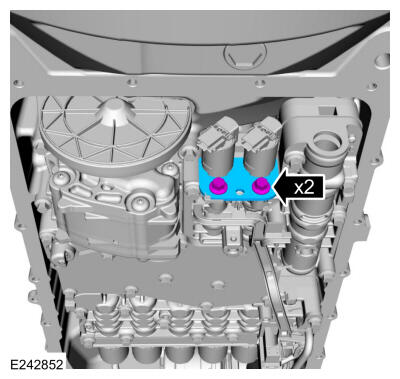

Install the solenoid retaining plate and the new bolts.
Torque: 9 Nm

Courtesy of FORD MOTOR COMPANY

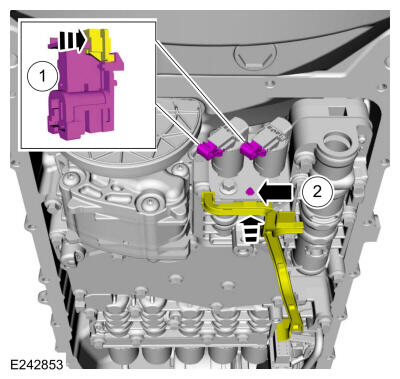

1. Connect the electrical connectors and slide the plastic lock to the locked position.
2. Connect the internal wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

All Solenoids
Install the transmission fluid pan gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter
If a new SS was installed, carry out the adaptive learning drive cycle procedure. Refer to: Adaptive Learning Drive Cycle .
