Output Shaft Seal: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: GENERAL INFORMATION

    Rear Wheel Drive (RWD) vehicles

  2. Remove the rear driveshaft. Refer to: AXLE ASSEMBLY .

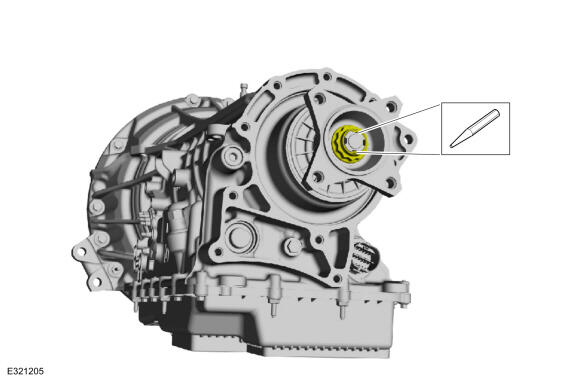

  3. Remove the stakes from the output shaft flange retaining nut.Use the General Equipment: Punch
    GFD839468Courtesy of FORD MOTOR COMPANY

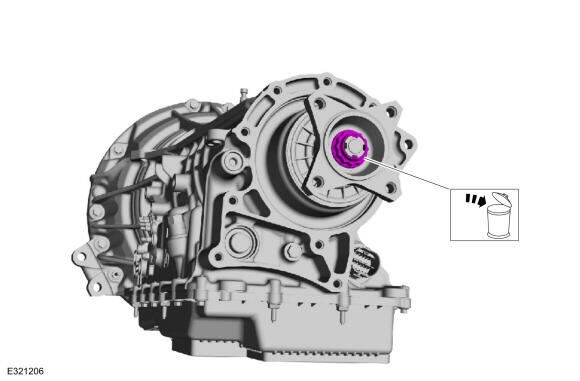

  4. Remove and discard the output shaft flange nut (7K440).
    GFD839469Courtesy of FORD MOTOR COMPANY

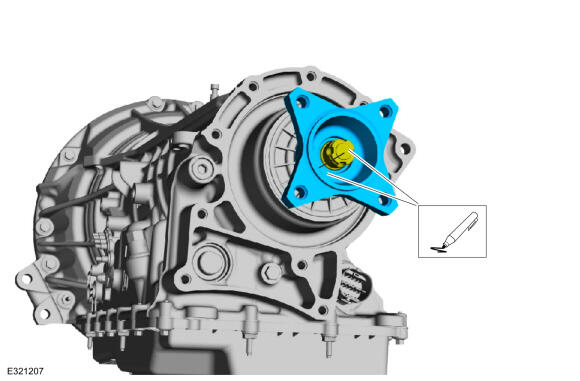

    1. Index mark the output shaft to the flange.
    2. Remove the output shaft flange.
    GFD839470Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  6. Remove the transfer case assembly. Refer to: Transfer Case .

    All vehicles

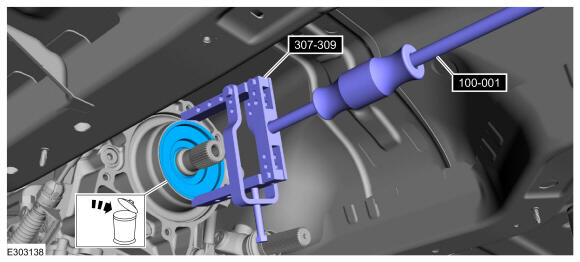

  7. Using the special tools, remove and discard the output shaft seal (7052).Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 307-309 Remover, Torque Converter Seal.
GFD839471Courtesy of FORD MOTOR COMPANY
