Cooling Module: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - 3.5L Duratec (202kW/275PS)/3.5L EcoBoost (235kW/320PS) - Overview .
Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the CAC. Refer to: Charge Air Cooler (CAC) .

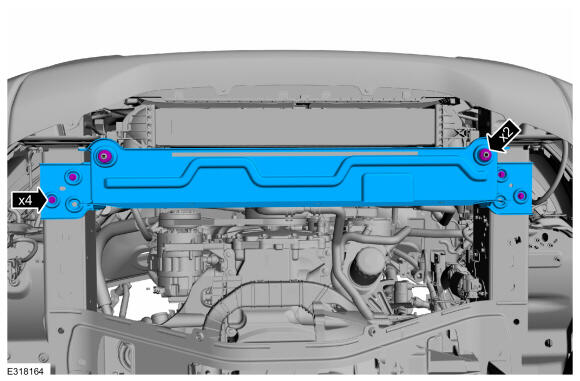

Position the lower radiator support and install the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY

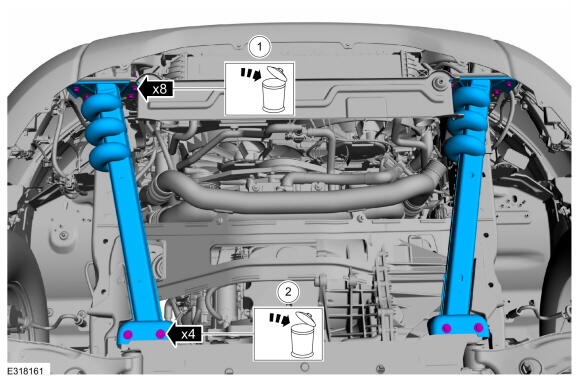

Remove the retainers and the lower load path bars. Discard the retainers.
Torque: 1: 62 Nm 2: 25 Nm

Courtesy of FORD MOTOR COMPANY

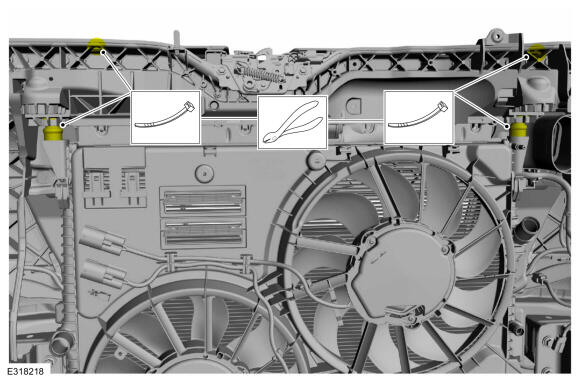

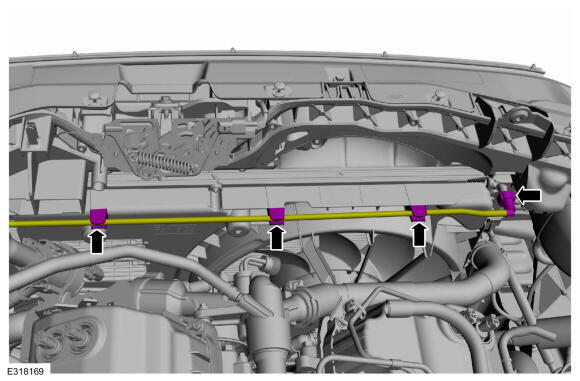

Remove the cable ties from the cooling module.

Courtesy of FORD MOTOR COMPANY

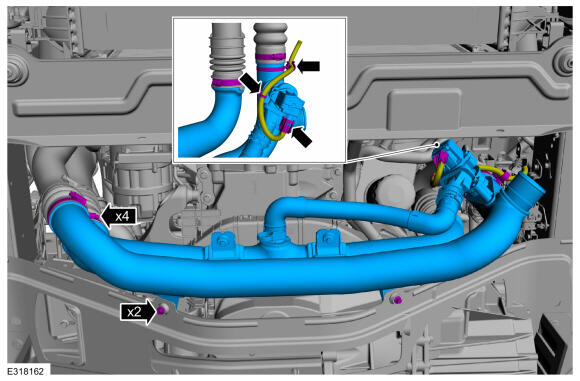

- Disconnect the wiring harness electrical connector and detach the retainers.
- Remove the bolts.
  Torque: 7 Nm
- Loosen the clamps and remove the CAC tubes.
  Torque: 5 Nm
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

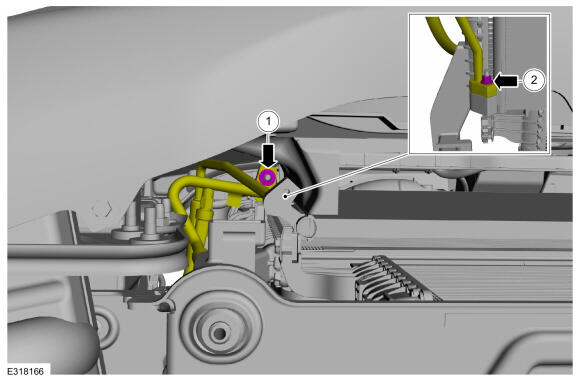

Remove the condenser inlet and outlet nuts and disconnect the fittings.

Torque: 1: 17 Nm 2: 9 Nm

Courtesy of FORD MOTOR COMPANY

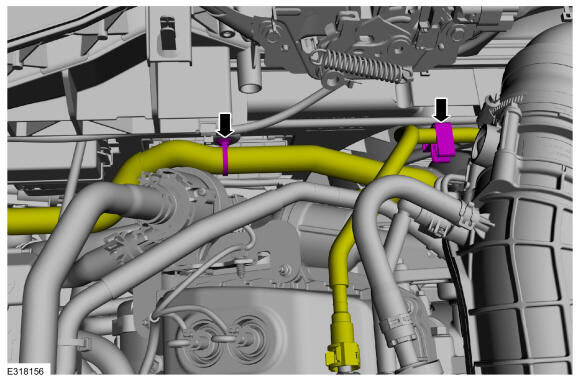

Detach the coolant hose and vapor tube retainers.

Courtesy of FORD MOTOR COMPANY

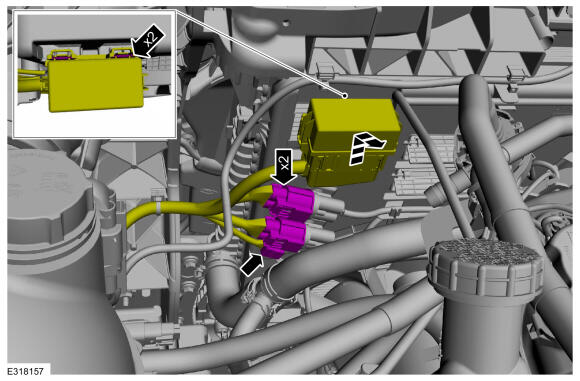

- Disconnect the cooling fan motor and shroud electrical connectors.
- Release the tabs and position aside the exhaust emission control module.
Courtesy of FORD MOTOR COMPANY
- Detach the coolant tube from the cooling fan shroud.
- Follow the directions to release quick release coupling type 16. Disconnect the coolant tube. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY

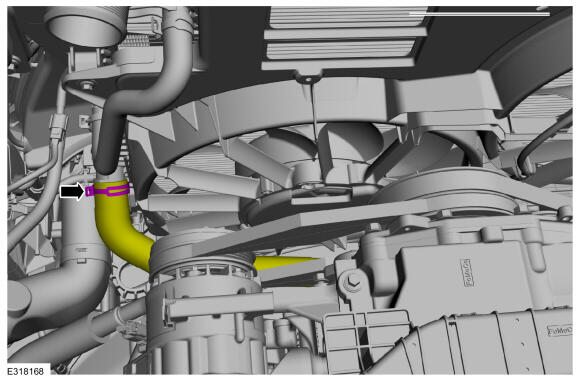

Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

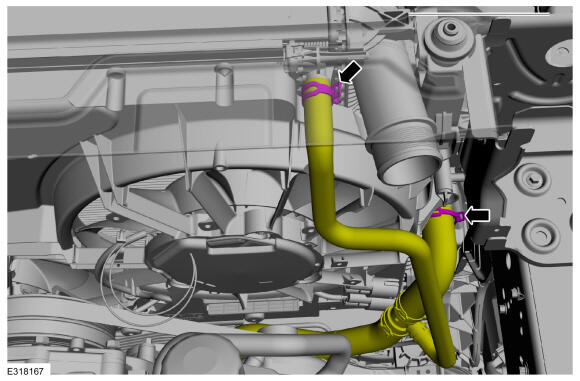

Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

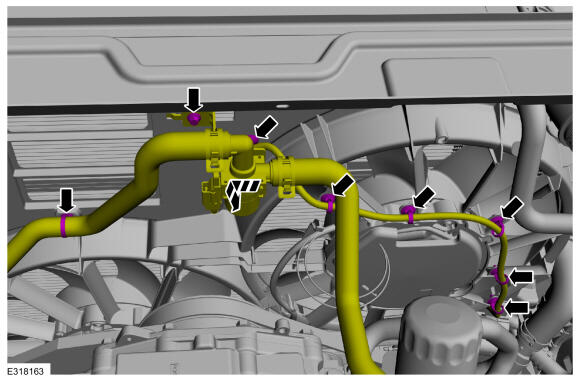

- Detach the wiring harness retainers.
- Detach the coolant hose retainer.
- Remove the bolt and position the transmission fluid heater coolant control valve.
  Torque: 10 Nm
Courtesy of FORD MOTOR COMPANY

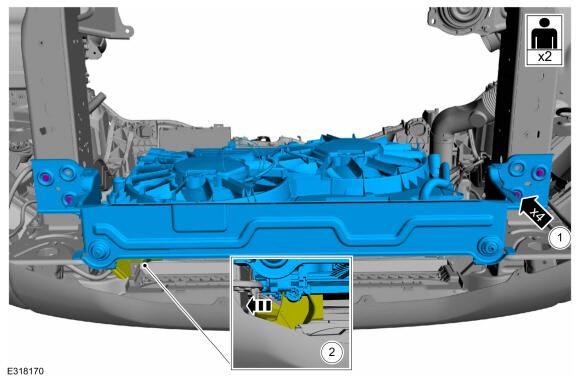

1. Remove the bolts.
  Torque: 25 Nm
2. Position the air deflector and remove the cooling module.

Courtesy of FORD MOTOR COMPANY
