Valve Cover RH: Installation
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Installation of new seals is only required if damaged seals were removed.
If removed, using the special tools, install the spark plug tube seals.Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.
-
NOTE: Installation of new seals is only required if damaged seals were removed.
If removed, using the special tools, install the VCT oil control solenoid seals.Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.
- Install a new valve cover gasket.
-
NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.
Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.
Material: metal cleaner
Material: gasket remover
Material: RTV silicone sealant (WSE-M4G323-A6)

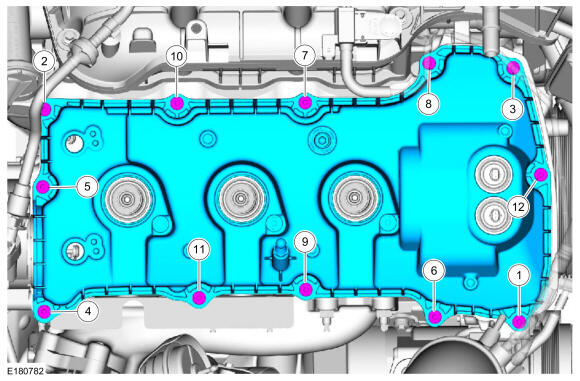

- Install the valve cover and tighten the stud bolts.
Torque: 10 Nm
- Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

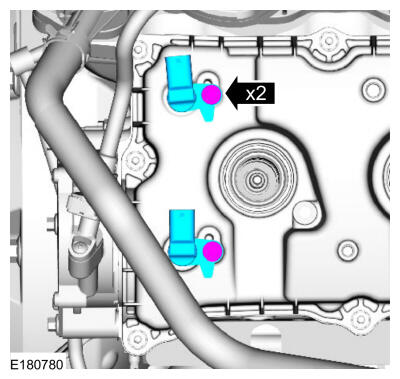

- Install the CMP sensors and bolts.
Torque: 7 Nm
-

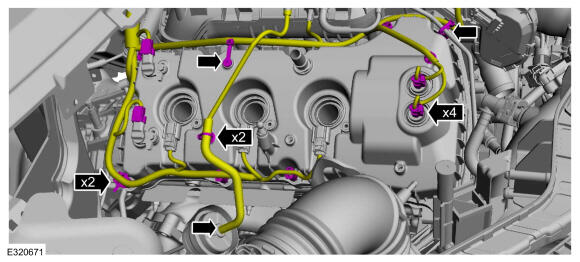

- Connect the turbocharger vacuum tube and attach the vacuum tube retainer.
- Attach the wiring harness retainers.
- Connect the VCT solenoid and CMP sensor electrical connectors.
-

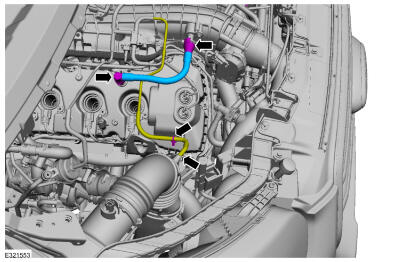

- Install the PCV tube.
- Connect the vacuum hose to the air cleaner outlet pipe.
- Attach the vacuum hose retainer.
- Install the RH ignition coil-on-plugs. Refer to: INSTALLATION
