Ignition Coil-On-Plug: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

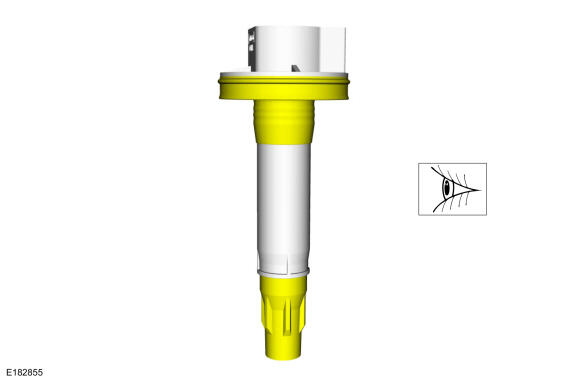

  1. Inspect the ignition coil-on-plugs and replace any units with damaged seals or cracks, rips or tears in the rubber boots.
    GFD839063Courtesy of FORD MOTOR COMPANY

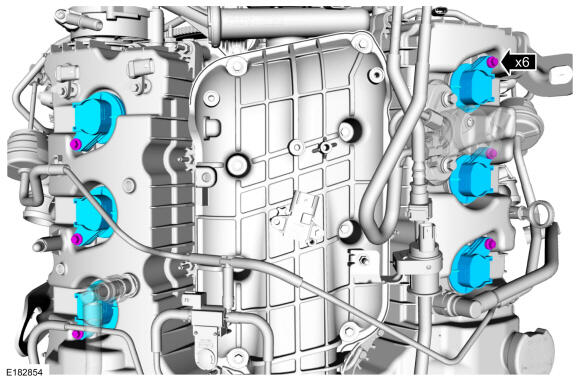

  2. Install the ignition coil-on-plugs and the mounting bolts. Tighten the bolts.

    Torque: Stage 1: 7 Nm Stage 2: 50deg.

    GFD839062Courtesy of FORD MOTOR COMPANY

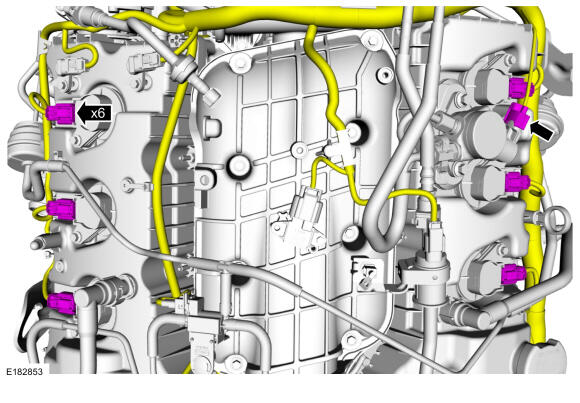

  3. Connect the ignition coil-on-plug electrical connectors and connect the high-pressure fuel pump electrical connector.
    GFD839061Courtesy of FORD MOTOR COMPANY
  4. NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

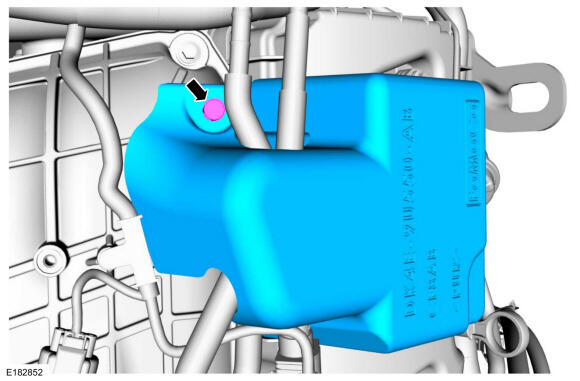

    Install the high-pressure fuel pump noise insulator. Install the high-pressure fuel pump noise insulator retainer.

GFD838960Courtesy of FORD MOTOR COMPANY
