Oil Pump: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
Install the oil pump and the bolts.
Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY
Install a new oil pump screen and pickup tube O-ring seal.

Courtesy of FORD MOTOR COMPANY
Install the oil pump screen and pickup tube and the bolts.
Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: The oil pan and the specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

Apply a 5 mm (0.20 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

Material: RTV silicone sealant (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
Apply a 9 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.
Material: RTV silicone sealant (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.

NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

Install the bolts finger tight.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not torque at this time.

Install the oil pan bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not torque at this time.

Install the oil pan bolt.

Courtesy of FORD MOTOR COMPANY

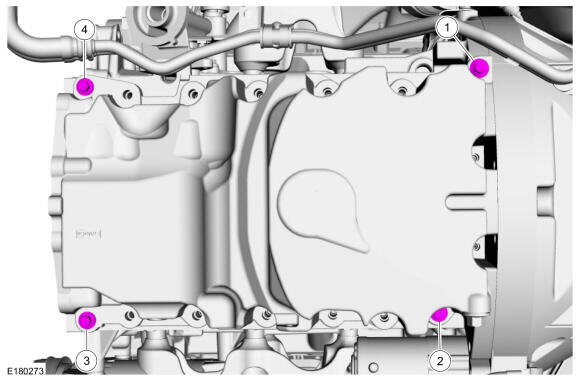

Tighten the oil pan bolts in sequence.
Torque: 3 Nm

Courtesy of FORD MOTOR COMPANY
Install the remaining oil pan bolts and tighten in sequence.
Torque: Stage 1: Tighten bolts 1 through 14 to: 24 Nm Stage 2: Tighten bolt 10 an additional: 90deg. Stage 3: Tighten bolts 15 and 16 to: 10 Nm

Courtesy of FORD MOTOR COMPANY

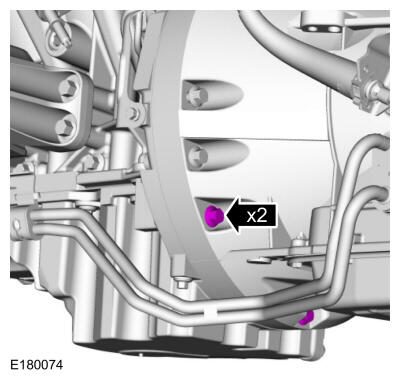

Tighten the oil pan bolts.
Torque: 48 Nm

Courtesy of FORD MOTOR COMPANY

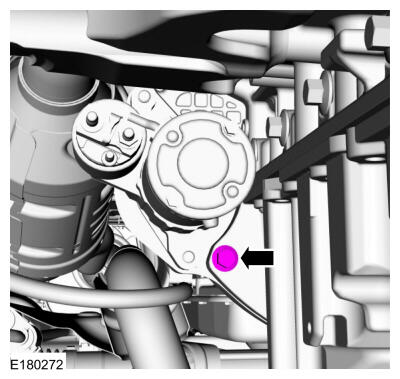

Tighten the oil pan bolt.
Torque: 48 Nm

Courtesy of FORD MOTOR COMPANY
With the aid of an assistant, install the engine crossmember and the bolts.
Torque: 63 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

Install theRH and LH engine mount bolts to the bottom of the engine crossmember.

Courtesy of FORD MOTOR COMPANY
Remove the stands.Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
Install the power steering hose bolt to the engine crossmember.
Torque: 12 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

Install the RH and LH engine mount nuts.

Torque: 115 Nm

Courtesy of FORD MOTOR COMPANY
Install the bolt for the transmission cooler tubes.
Torque: 12 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the oil cooler-to-oil filter adapter is aligned.

Install the oil cooler and the retainer.

Torque: 58 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: Do not lubricate the engine oil filter gasket.

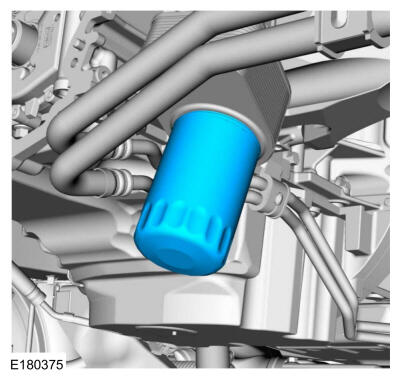

Install a new oil filter.

Torque: Stage 1: 5 Nm Stage 2: 180deg.

Courtesy of FORD MOTOR COMPANY
Attach the wiring harness retainers to the engine crossmember.

Courtesy of FORD MOTOR COMPANY
1. Position the starter motor wiring harness and install the starter solenoid S- terminal nut.
  Torque: 5 Nm
2. Install the starter solenoid B+ terminal nut.
  Torque: 12 Nm
Courtesy of FORD MOTOR COMPANY
Install the starter motor solenoid terminal cover.

Courtesy of FORD MOTOR COMPANY
Install the crankshaft sprocket with the timing dot mark out.

Courtesy of FORD MOTOR COMPANY
NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

Install the timing chain with the colored links aligned with the timing marks on the VCT units and the crankshaft sprocket.

Courtesy of FORD MOTOR COMPANY
Install the lower LH timing chain guide and the bolts.
Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY
Install the timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY
1. Release the ratchet detent.
2. Using a soft-jawed vise, compress the ratchet plunger.
3. Align the hole in the ratchet plunger with the hole in the tensioner housing and install a lockpin.
Courtesy of FORD MOTOR COMPANY
NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.
- Install the timing chain tensioner and the bolts.
  Torque: 10 Nm
- Remove the lockpin.
Courtesy of FORD MOTOR COMPANY
- As a post-check, verify correct alignment of all timing marks.
- There are 48 links in between the RH intake VVT unit colored link (1) and the LH intake VVT unit colored link (2).
- There are 35 links in between LH intake VVT unit colored link (2) and the crankshaft sprocket links (3).
Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY
Install the RH oil tube and the bolts.
Torque: Stage 1: 8 Nm Stage 2: 45deg.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY
Install the LH oil tube and the bolts.
Torque: Stage 1: 8 Nm Stage 2: 45deg.

Courtesy of FORD MOTOR COMPANY
Install the engine front cover. Refer to: INSTALLATION
Connect the A/C compressor electrical connector and wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .
Material: Engine Oil - 5W30 - Synthetic Blend (WSS-M2C946-B1)
