Intake Manifold: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

If gaskets were discarded install new intake manifold gaskets.

Courtesy of FORD MOTOR COMPANY
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

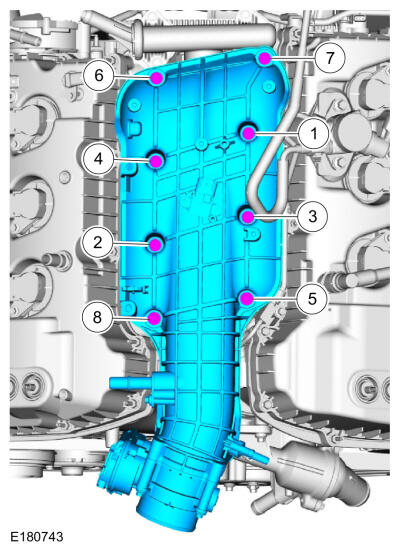

Install the intake manifold and the bolts.

Torque: Stage 1: 10 Nm Stage 2: 45deg.

Courtesy of FORD MOTOR COMPANY
- Position the vacuum solenoid assembly and install the retaining plate and pin-type retainer.
- Connect the vacuum hose.
Courtesy of FORD MOTOR COMPANY
- Install the EVAP purge solenoid and stud bolt.
  Torque: 10 Nm
- Connect the EVAP purge solenoid and MAPT sensor electrical connectors and wiring harness retainer.
- Position the vacuum tube and attach the retainers.
Courtesy of FORD MOTOR COMPANY
- Connect the fuel vapor tube to the intake manifold. Refer to: QUICK RELEASE COUPLING
- Install the vacuum hose and clamp.Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

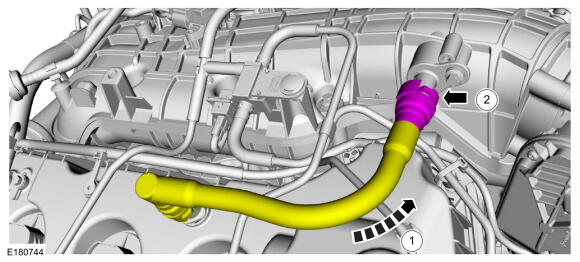

Rotate and connect the PCV tube to the intake manifold.

Courtesy of FORD MOTOR COMPANY
- Install the throttle body intake pipe and tighten the clamp.
  Torque: 5 Nm
- Connect the throttle body electrical connector and wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
Install the fuel injection pump noise insulator.

Courtesy of FORD MOTOR COMPANY
Connect the battery ground cable. Refer to: INSTALLATION
If a new intake manifold was installed, road test the vehicle.
