Engine Mount RH: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING
  2. Remove the engine crossmember. Refer to: REMOVAL

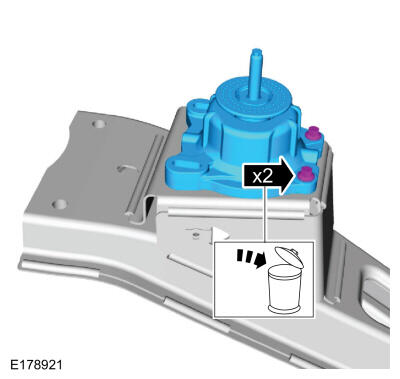

    • Remove and discard the bolts.

      Torque: 30 Nm

    • Remove the engine mount.

GFD837717Courtesy of FORD MOTOR COMPANY
