Cylinder Head RH: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed. Refer to Variable Camshaft Timing (VCT) Unit
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING
  2. Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE
  3. Disconnect the battery ground cable. For Single Battery, Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY . For Dual Battery, Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES
  4. Remove the RH turbocharger. Refer to: REMOVAL
  5. Remove the RH camshafts. Refer to: Camshafts .
  6. NOTE: Do not use power tools to remove the bolt or damage to the upper RH timing chain guide may occur.

    Remove the bolt and the RH timing chain guide.

    GFD837677Courtesy of FORD MOTOR COMPANY
    • Disconnect the heater hose.Use the General Equipment: Hose Clamp Remover/Installer

    • Remove the bolts and the coolant crossover manifold and coolant inlet tube assembly.

    • Discard the gaskets.

    GFD837654Courtesy of FORD MOTOR COMPANY
  7. Loosen the flare nuts, remove the bolt and the high-pressure fuel tube.
    GFD837655Courtesy of FORD MOTOR COMPANY
  8. Disconnect the fuel rail pressure sensor and RH fuel charge harness electrical connectors.
    GFD837678Courtesy of FORD MOTOR COMPANY
    • Remove the retainers and the heat shield.

    • Remove the stud bolt.

    • Disconnect the CHT sensor electrical connector and wiring harness retainer.

    GFD837679Courtesy of FORD MOTOR COMPANY
  9. NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

    Remove the valve tappets.

    GFD837680Courtesy of FORD MOTOR COMPANY
  10. Inspect and install new components as necessary.
    GFD837660Courtesy of FORD MOTOR COMPANY
  11. Remove and discard the M6 bolt.
    GFD837681Courtesy of FORD MOTOR COMPANY
    • NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
      NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
      NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.

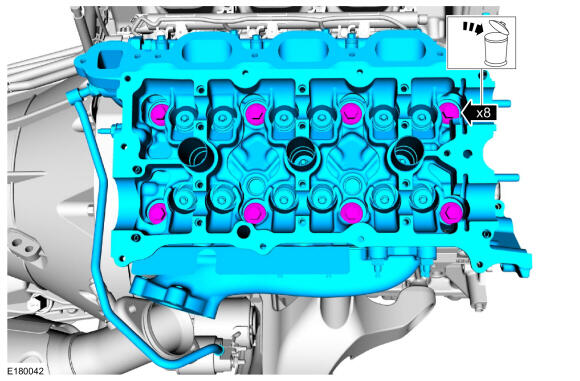

      Remove and discard the bolts.

    • Remove the cylinder head.

    GFD837682Courtesy of FORD MOTOR COMPANY
  12. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

    Make sure that the mating faces of the cylinder head are clean and free of foreign material.

    GFD837683Courtesy of FORD MOTOR COMPANY
  13. Remove and discard the cylinder head gasket.
    GFD837684Courtesy of FORD MOTOR COMPANY

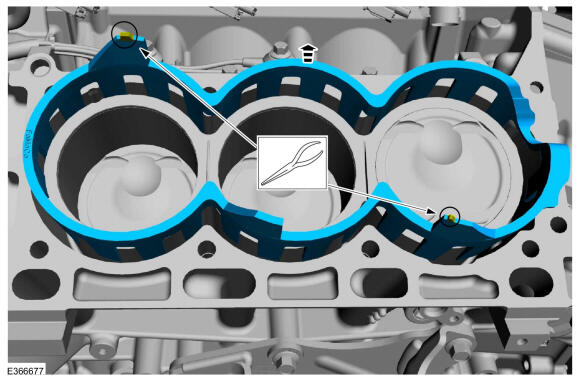

  14. Remove the RH water jacket spacer.Use the General Equipment: Long Nose Pliers
    GFD837685Courtesy of FORD MOTOR COMPANY
  15. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

    Make sure that the mating faces of the engine block are clean and free of foreign material.

    GFD837686Courtesy of FORD MOTOR COMPANY
  16. Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. Refer to: Cylinder Head Distortion . Refer to: Cylinder Block Distortion .
