Turbocharger RH: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding
Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe
Remove the engine crossmember. Refer to: Engine Crossmember
Remove the starter motor. Refer to: Starter Motor
Remove the air conditioning (A/C) compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt - Vehicles With: Single Generator Refer to: Air Conditioning (A/C) Compressor Belt Tensioner - Vehicles With: Dual Generators Refer to: Air Conditioning (A/C) Compressor Belt - Vehicles With: Dual Generators
Disconnect the electrical connectors, then detach the harness retainer.

Courtesy of FORD MOTOR COMPANY

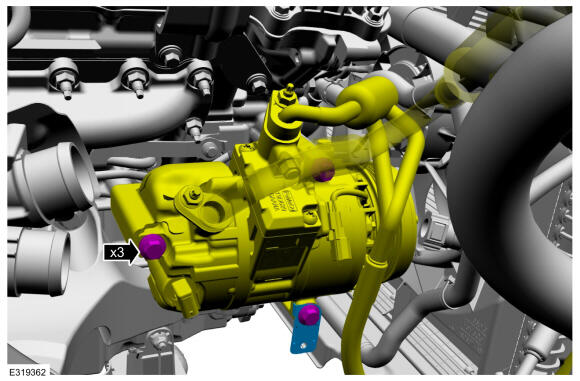

Remove the bolts and the wiring harness bracket, then move the air conditioning compressor out of the way.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the mating faces are clean and free of foreign material.

Remove and discard the right catalytic converter flange nuts.

Courtesy of FORD MOTOR COMPANY
1. Remove and discard the left catalytic converter flange nuts.
2. NOTE: Make sure that the mating faces are clean and free of foreign material.

  Remove and discard the gasket.
Courtesy of FORD MOTOR COMPANY
NOTE: Use a 3/8" Jiffy-Tite® quick disconnect tool, close the tool around the tube, press the tool into the fitting and rotate until the tool is fully seated into the fitting.

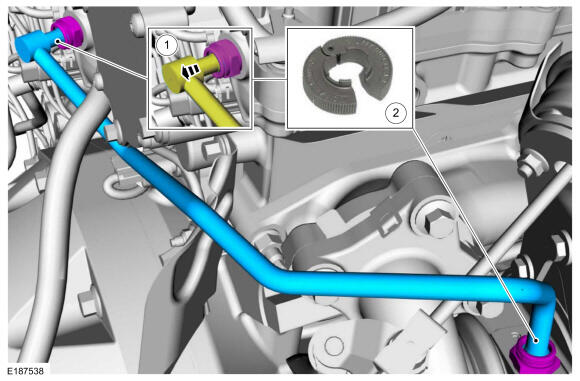

Position the tube outward and install the 3/8" Jiffy-Tite® tool, then disconnect the turbocharger coolant return tube at the turbocharger and the cylinder head.

Courtesy of FORD MOTOR COMPANY
Disconnect the turbocharger control hose.

Courtesy of FORD MOTOR COMPANY
Remove the bolt for the turbocharger tubes.

Courtesy of FORD MOTOR COMPANY

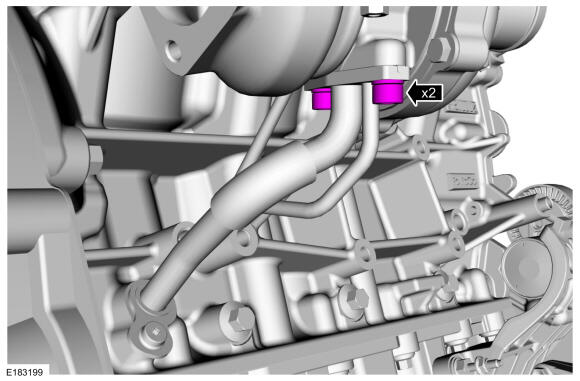

Remove the upper turbocharger oil tube assembly bolts.

Courtesy of FORD MOTOR COMPANY
Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY

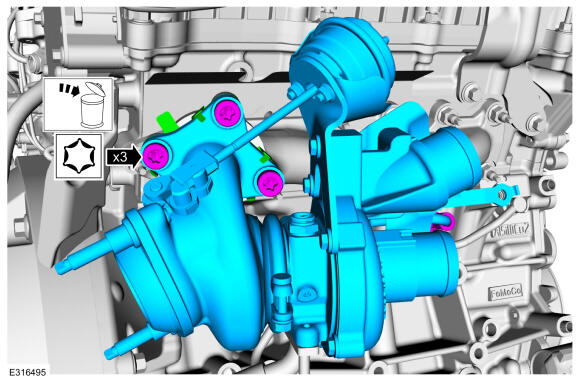

Remove and discard the turbocharger mounting bolts, then remove the turbocharger coolant supply tube from the block fitting while removing the turbocharger.

Courtesy of FORD MOTOR COMPANY
NOTE: Use a 3/8" Jiffy-Tite® quick disconnect tool, close the tool around the tube, press the tool into the fitting and rotate until the tool is fully seated into the fitting.

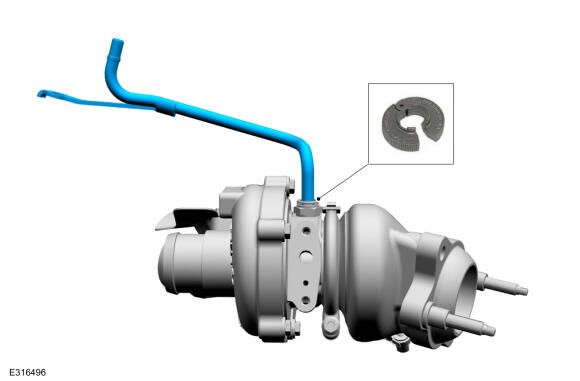

Disconnect the turbocharger coolant supply tube from the turbocharger fitting and remove the turbocharger coolant supply tube. Remove the turbocharger.

Courtesy of FORD MOTOR COMPANY

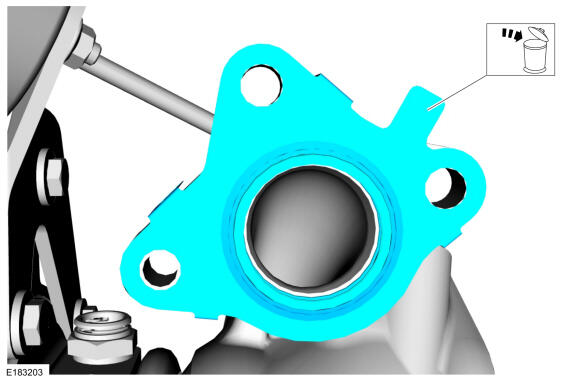

Remove and discard the turbocharger gasket.

Courtesy of FORD MOTOR COMPANY
Remove the turbocharger exhaust flange studbolts and the turbocharger exhaust flange. Discard the turbocharger exhaust flange studbolts.

Courtesy of FORD MOTOR COMPANY
Remove and discard the turbocharger exhaust flange gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Whenever the turbocharger is removed or replaced, always install a new turbocharger fitting and oil filter assembly.

Remove the lower turbocharger oil tube assembly bolt and the turbocharger oil tube assembly.

Courtesy of FORD MOTOR COMPANY

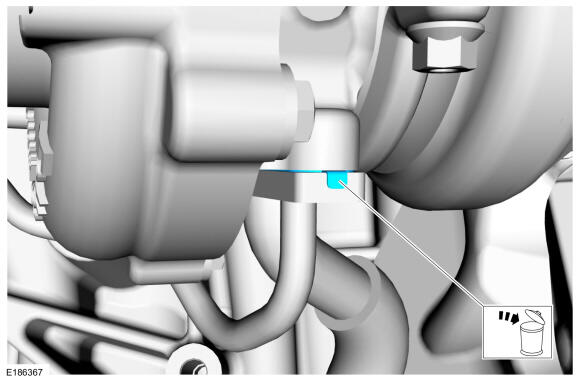

Remove and discard the O-ring seal.

Courtesy of FORD MOTOR COMPANY
Remove and discard the turbocharger fitting and oil filter assembly.

Courtesy of FORD MOTOR COMPANY
