Crankshaft Rear Seal: Installation
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

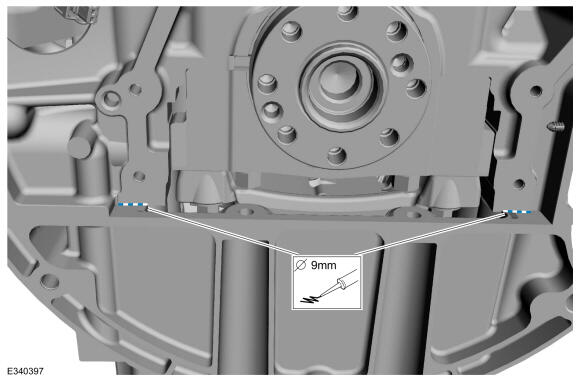

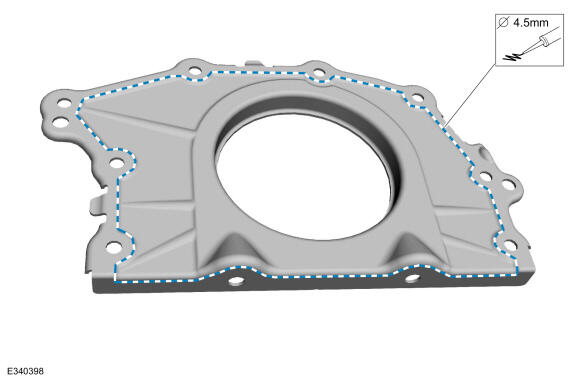

Apply 9 mm (0.354 in) bead of silicone sealant.
Material: RTV Silicone Sealant (WSE-M4G323-A6)
-
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.
Apply 4 mm (0.16 in) bead of silicone sealant.
Material: RTV Silicone Sealant (WSE-M4G323-A6)

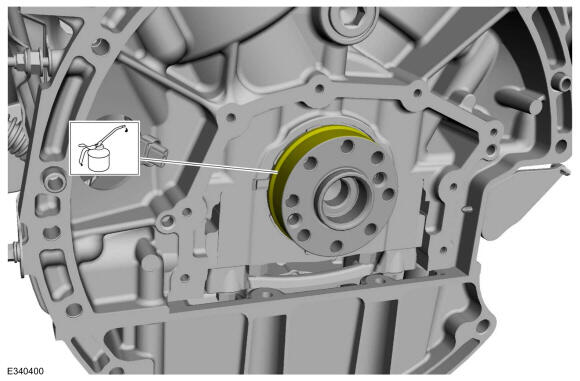

- Lubricate the crankshaft with clean engine oil. Refer to: Specifications .

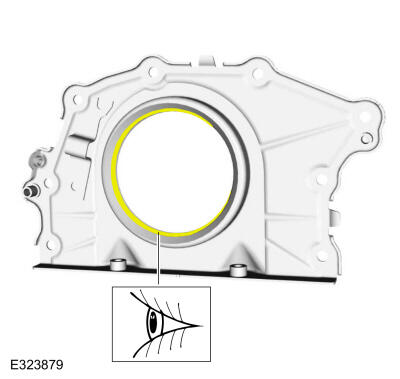

- Inspect the rear seal to ensure lip is not inverted.
-

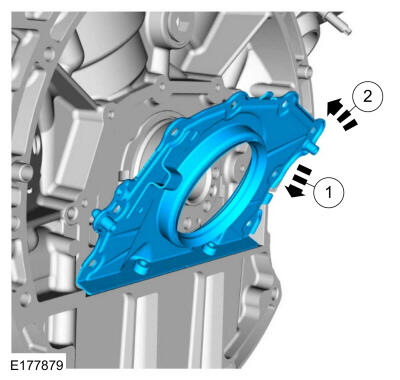

- Install the crankshaft rear seal retainer at an angle above the oil pan flange to avoid scraping off the sealer.
- Tilt the seal retainer up and onto the rear of the cylinder block.

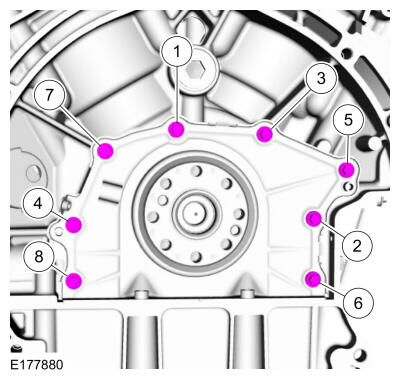

- Install the bolts and tighten in sequence shown.
Torque: 10 Nm

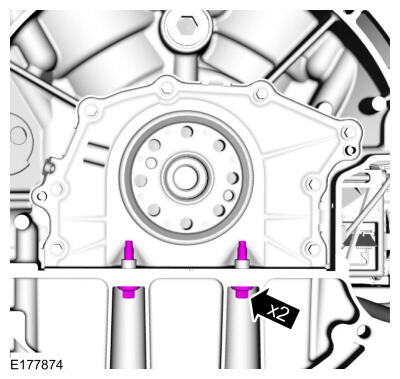

- Install oil pan-to-crankshaft rear seal bolts.
Torque: Stage 1: 10 Nm Stage 2: 45deg.

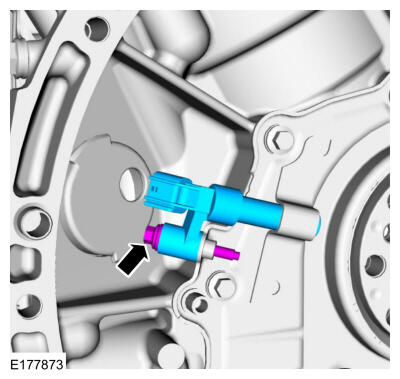

- Install the CKP sensor and the bolt.
Torque: 6 Nm

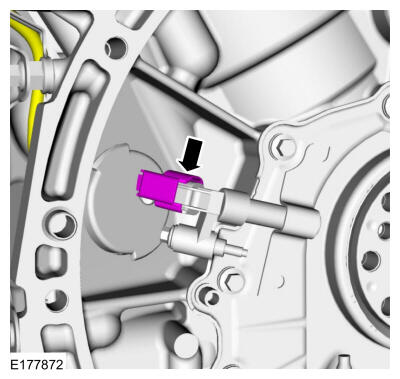

- Connect the CKP sensor electrical connector.
- Install the engine-to-transmission spacer plate and the crankshaft sensor ring.
- Install the flexplate. Refer to: Flexplate .
- Road test the vehicle.
