Crankshaft Front Seal: Installation
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

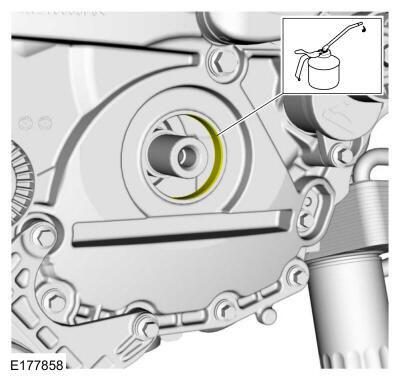

- Lubricate the crankshaft front seal bore with clean engine oil. Refer to: Specifications .

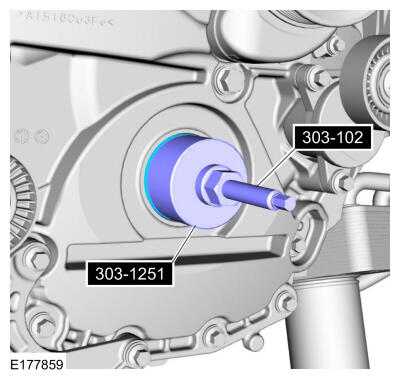

- Using the special tools, install the crankshaft front seal.Use Special Service Tool: 303-102 Installer, Crankshaft Pulley., 303-1251 Installer, Front Seal.

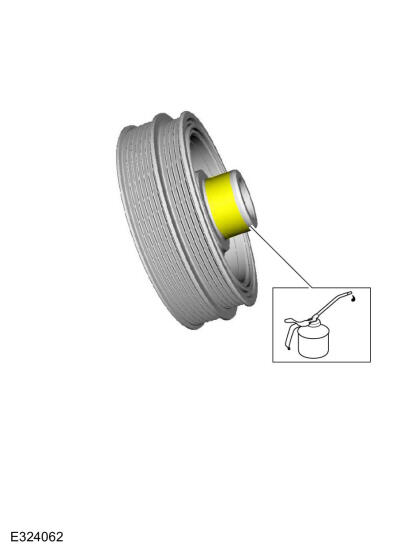

- Lubricate the crankshaft pulley with clean engine oil. Refer to: Specifications .

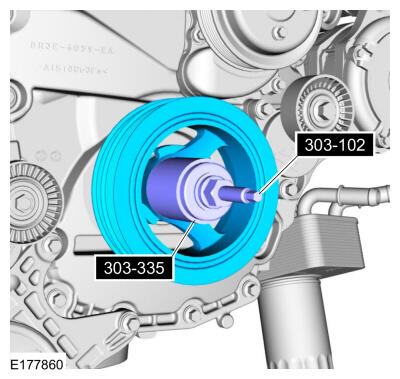

- Using the special tools, install the crankshaft pulley.Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-102 Installer, Crankshaft Pulley.

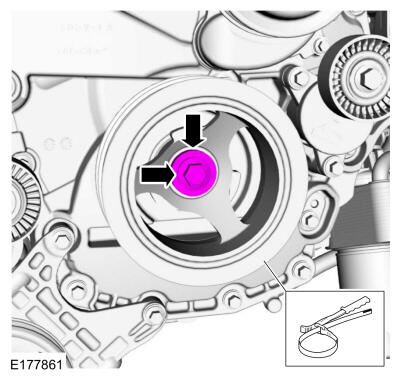

- Using the strap wrench, install the new crankshaft bolt and the washer and tighten in 4 stages.Use the General Equipment: Strap Wrench
Torque: Stage 1: 120 Nm Stage 2: Loosen:: 1 turn(s) Stage 3: 50 Nm Stage 4: 90deg.
- Install the cooling module. Refer to: Cooling Module .
- Install the A/C compressor belt. Refer to: INSTALLATION
- After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
- Road test the vehicle.
