Selector Lever Cable - 3.5L Duratec (202kW 275PS): Installation
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- With the aid of an assistant, route the selector lever cable through the passenger compartment and install.

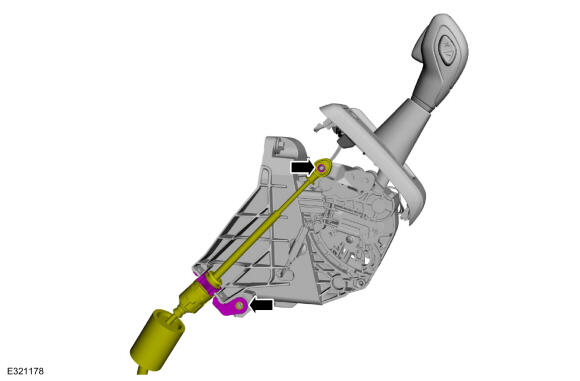

- Connect the selector lever cable clip and the selector lever cable end to the selector lever assembly.
- Install the selector lever cable clip bolt.
Torque: 7 Nm
- Set the selector lever to the Drive (D) position.

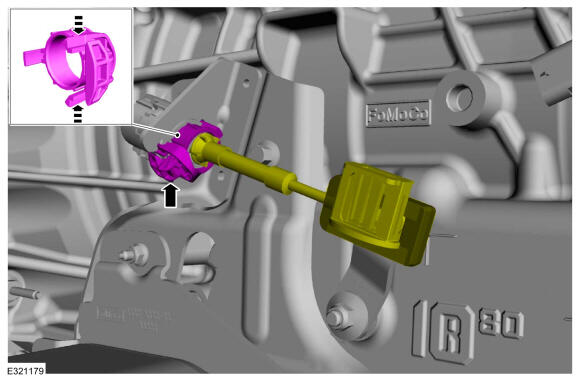

- Connect the selector lever cable to the bracket.
-
- Rotate the manual control lever clockwise until it stops.
- Rotate the manual control lever counterclockwise 3 detents.
- Connect the selector lever cable to the manual control lever.
-
NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.
Slide the lock tab down into place.
- Install the heat shield.
Four-Wheel Drive (4WD) vehicles
- Inspect the transmission fluid cooler O-ring seals and install new O-ring seals if necessary. Lubricate the O-ring seals.
Material: Automatic Transmission Fluid (WSS-M2C949-A,)
- Position back the transmission fluid cooler and install the bolts and the nut.
Torque: Nut: 11 Nm Bolts: 11 Nm
- Install the front subframe. Refer to: INSTALLATION
All vehicles
-
NOTE: Both sides.
Install the trim panel and the screws.
-
NOTE: Both sides.
Install the lower trim panel screw covers.
- Connect the electrical connectors and install the instrument panel console.

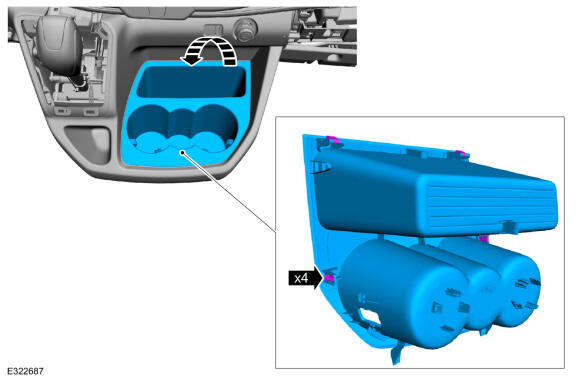

- Install the cup holder.
- Install the trim panel.

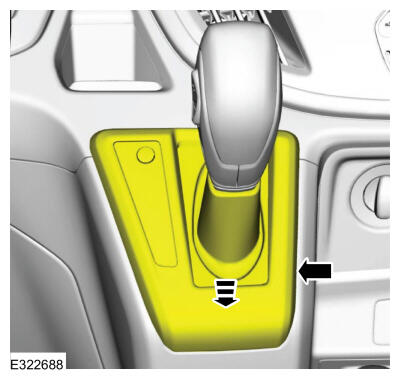

- Install the selector lever bezel.
- Install the trim panel.

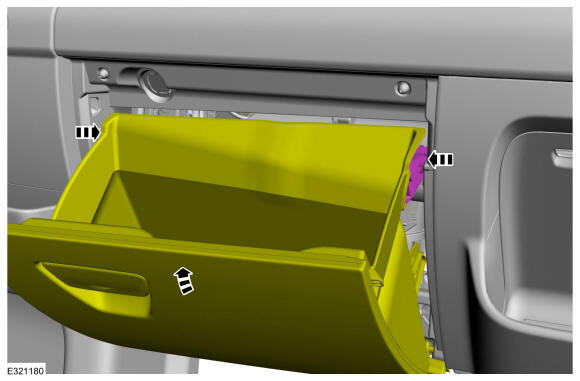

- Press the stop tabs inward and close the glove compartment.
- Release the clips and remove the lower steering column opening trim panel.
Four-Wheel Drive (4WD) vehicles
- Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
