Front Subframe: Removal

All vehicles

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
NOTE: Removal steps in this procedure may contain installation details.
  1. Make sure the steering wheel is centered in a straight ahead position.
    GFD836432Courtesy of FORD MOTOR COMPANY

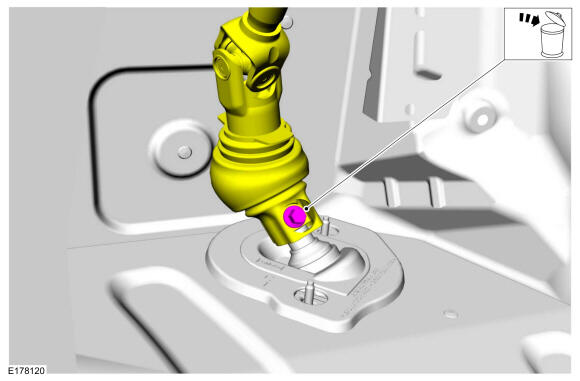

  2. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the steering column shaft bolt and disconnect the steering column shaft from the steering gear.

    GFD836441Courtesy of FORD MOTOR COMPANY

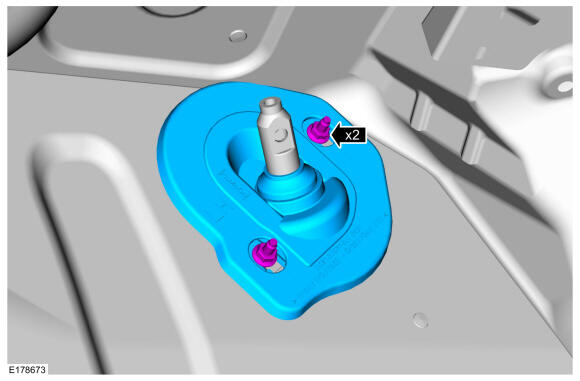

  3. Remove the steering gear shaft boot nuts and remove the steering gear shaft boot.
    GFD836442Courtesy of FORD MOTOR COMPANY
  4. Remove the wheels and tires. Refer to: Wheel and Tire . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .
  5. Remove the front lower air deflector.
    GFD836501Courtesy of FORD MOTOR COMPANY
  6. Remove and discard the lower load path bar retainers and remove the lower load path bars.
    GFD842339Courtesy of FORD MOTOR COMPANY

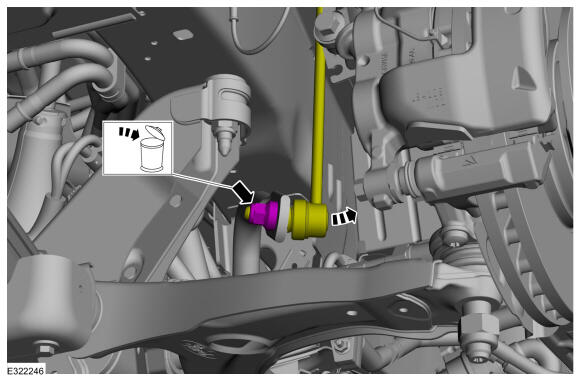

  7. On both sides. Remove and discard the nut and position aside the front stablizer bar link rod.

    Torque: 103 Nm

    GFD836443Courtesy of FORD MOTOR COMPANY
  8. NOTE: Make sure that the ball joint ball does not rotate.

    On both sides.

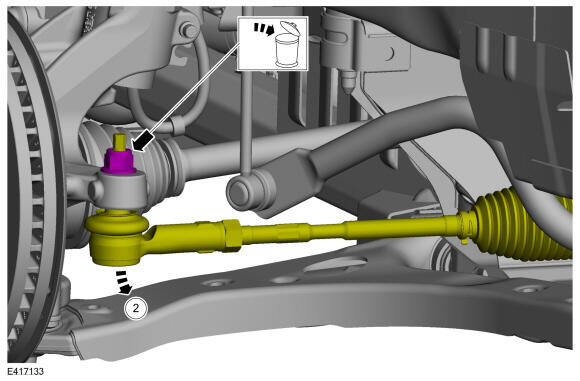

    1. Remove and discard the tie rod end nut.
    2. Separate the tie rod end from the wheel knuckle.

    GFD842349Courtesy of FORD MOTOR COMPANY

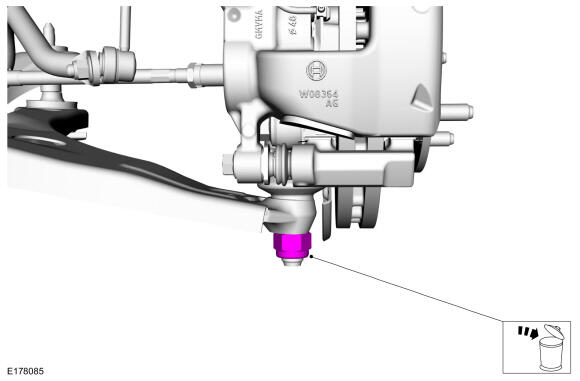

  9. On both sides. Remove and discard the lower ball joint nut.
    GFD836498Courtesy of FORD MOTOR COMPANY
  10. NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.
    NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

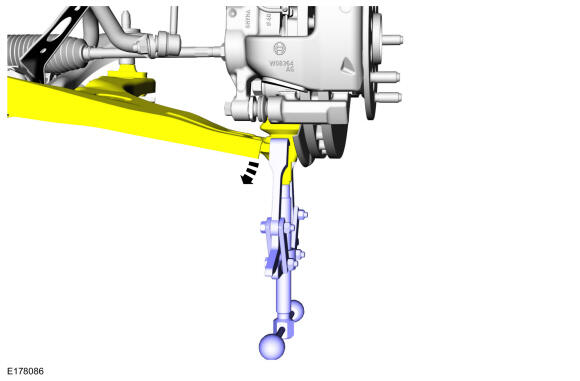

    On both sides. Separate the lower control arm from the lower ball joint. Use the General Equipment: Two Leg Puller

    GFD836499Courtesy of FORD MOTOR COMPANY

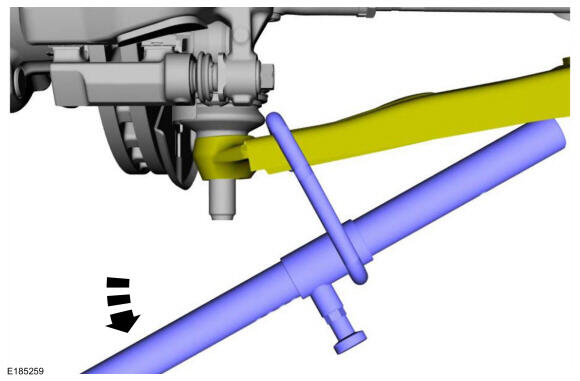

  11. On both sides. Use the General Equipment: Lower Arm Down Force Lever
    GFD836500Courtesy of FORD MOTOR COMPANY

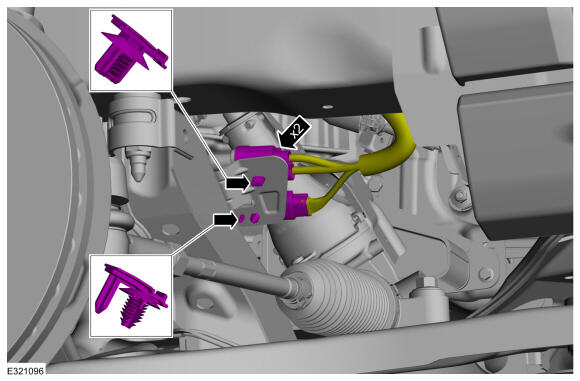

    • Disconnect the electrical connectors.

    • Detach the retainers and position aside the EPAS wiring harness.

    GFD836445Courtesy of FORD MOTOR COMPANY

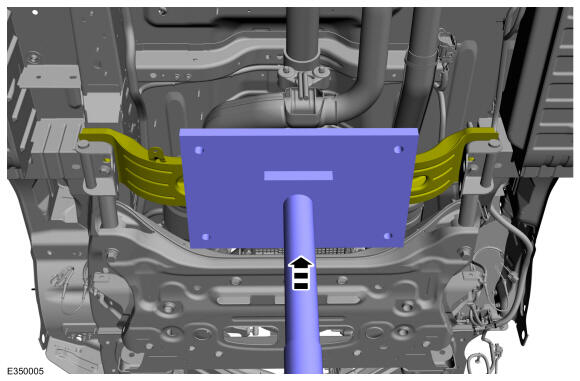

  12. Position a transmission jack under the transmission crossmember. Use the General Equipment: Transmission Jack
    GFD842350Courtesy of FORD MOTOR COMPANY

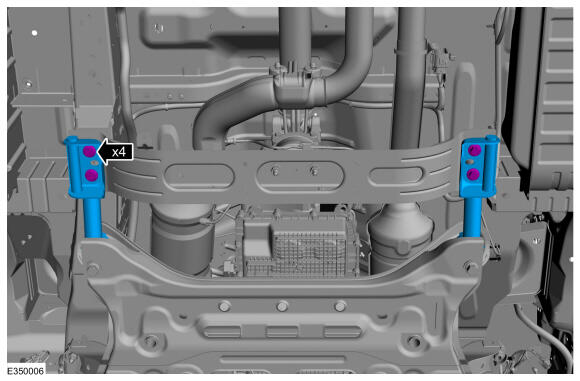

  13. Remove the LH and RH jack-lift brackets.
    GFD842351Courtesy of FORD MOTOR COMPANY

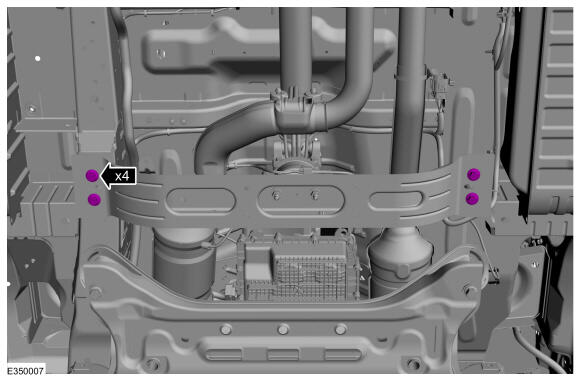

  14. Install the transmission crossmember bolts.
    GFD842352Courtesy of FORD MOTOR COMPANY

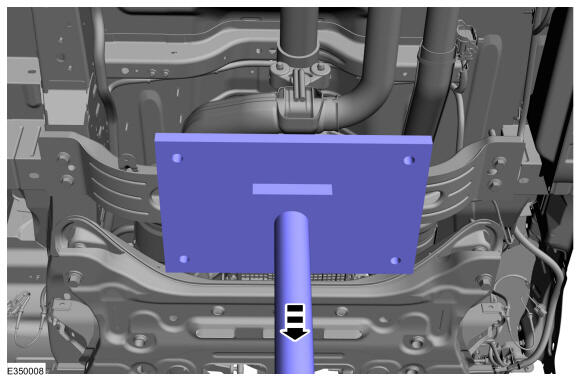

  15. Remove the transmission jack. Use the General Equipment: Transmission Jack
    GFD842353Courtesy of FORD MOTOR COMPANY
  16. NOTE: This step is applicable for all vehicles expect Adventure Van.
    NOTE: Index-mark the subframe for reference during installation.

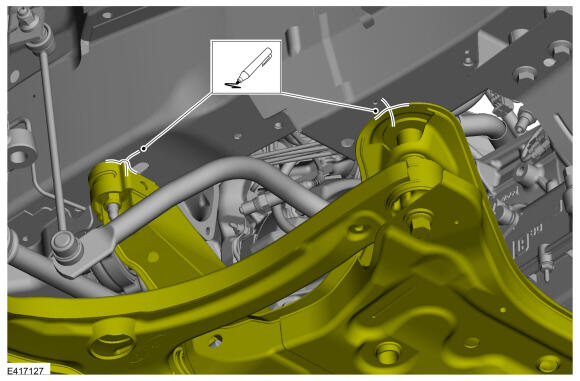

    On both sides.Mark the position of front subframe.

    GFD842354Courtesy of FORD MOTOR COMPANY

    Adventure Van

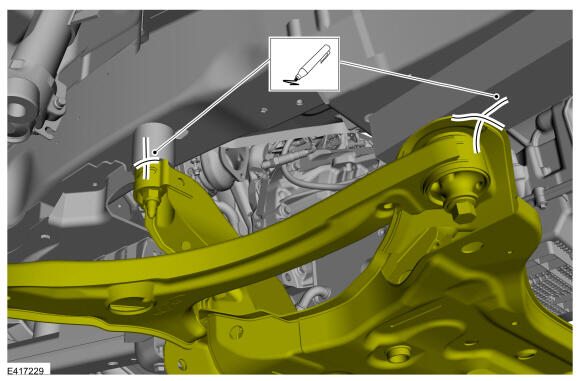

  17. NOTE: Index-mark the subframe for reference during installation.

    On both sides.Mark the position of front subframe.

    GFD842355Courtesy of FORD MOTOR COMPANY

    All vehicles

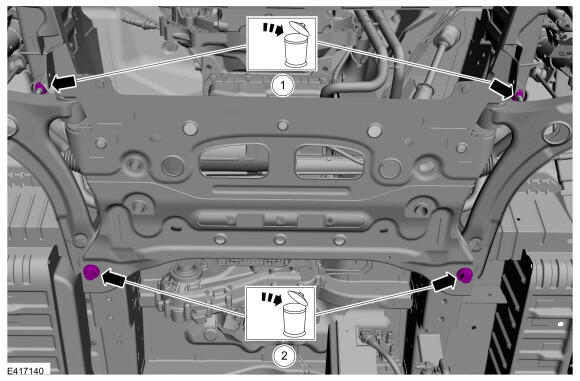

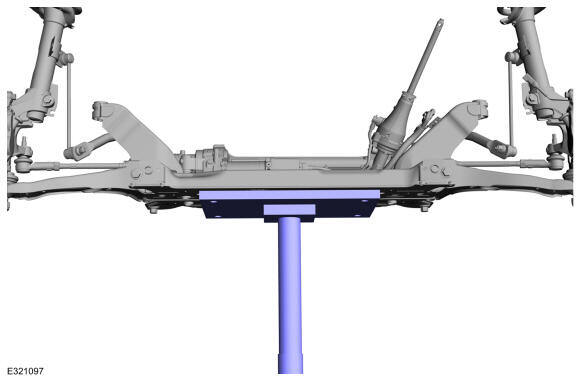

  18. Position a transmission jack under the front subframe. Use the General Equipment: Transmission Jack
    GFD836446Courtesy of FORD MOTOR COMPANY
    1. Remove and discard the front subframe forward nuts.
    2. Remove and discard the front subframe rearward bolts.
    GFD842356Courtesy of FORD MOTOR COMPANY

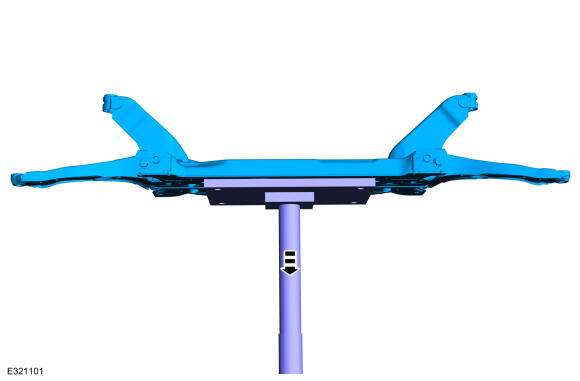

  19. Remove the front subframe assembly. Use the General Equipment: Transmission Jack
    GFD842357Courtesy of FORD MOTOR COMPANY
  20. NOTE: This step is only necessary when installing a new component.

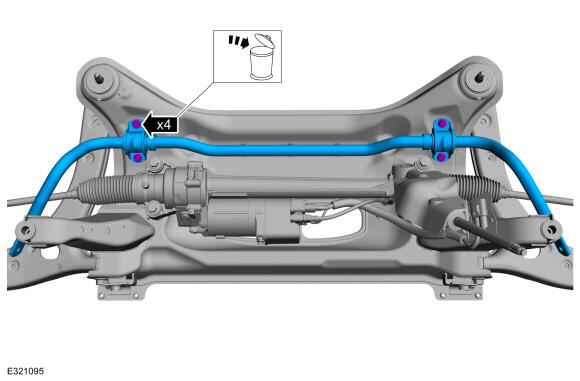

    Remove and discard the stabilizer bar bracket bolts and remove the stabilizer bar.

    GFD842358Courtesy of FORD MOTOR COMPANY

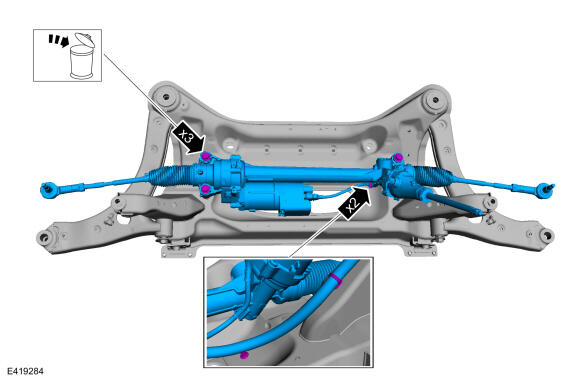

    1. Detach the wiring retainers.
    2. Remove and discard the steering gear mounting bolts and remove the steering gear assembly.
    GFD842359Courtesy of FORD MOTOR COMPANY

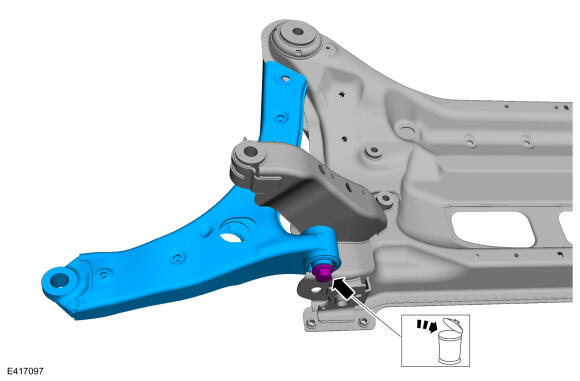

  21. On both sides.Remove and discard the bolt and remove the lower arm.
