Removal And Installation: Muffler: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Position vehicle on a hoist. Refer to: JACKING AND LIFTING .
  2. Remove the tailpipe. Refer to: Tailpipe .

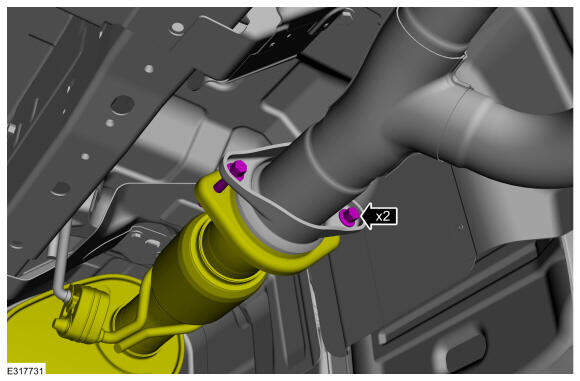

  3. Remove the bolts.

    Torque: 40 Nm

    GFD839951Courtesy of FORD MOTOR COMPANY

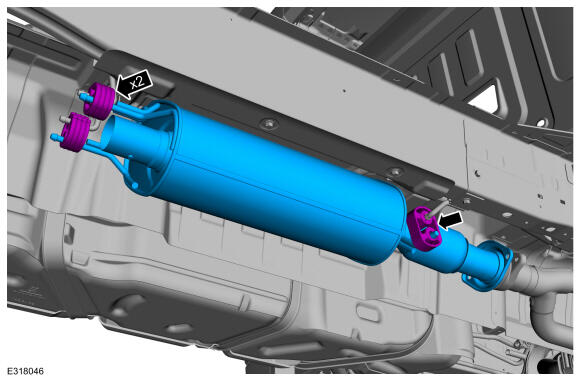

  4. Detach the exhaust isolators and remove the muffler assembly.
    GFD839980Courtesy of FORD MOTOR COMPANY

    Isolator hanger bracket

    NOTE: The below step is only necessary, if you are replacing the isolator hanger bracket.

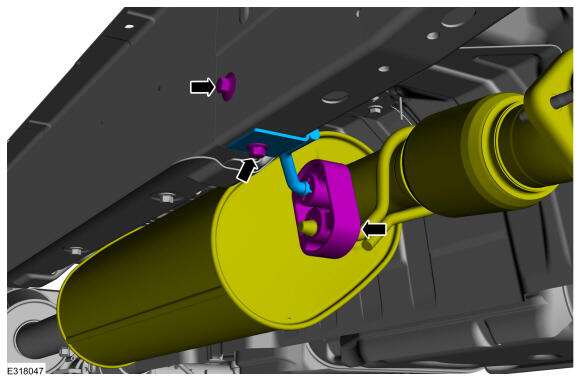

    • Detach the isolator.

    • Remove the bolts and the isolator hanger bracket.

      Torque: 30 Nm

    GFD839981Courtesy of FORD MOTOR COMPANY

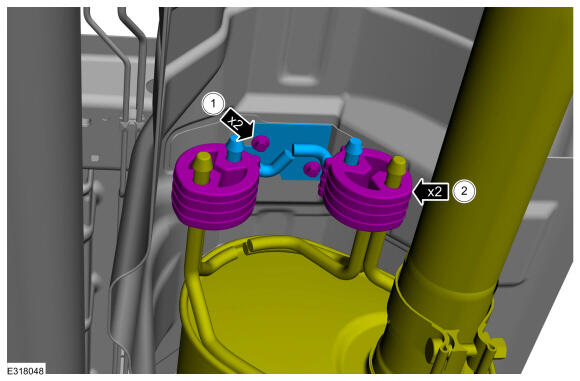

    1. Detach the isolators.
    2. Remove the bolts and the isolator hanger bracket.

      Torque: 20 Nm

GFD839982Courtesy of FORD MOTOR COMPANY
