Dual Catalytic Converter Y-Pipe - AWD: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the dual catalytic converter Y-Pipe is not being replaced, the HO2S (heated oxygen sensor) and the catalyst monitor sensor do not need to be removed from the dual catalytic converter Y-Pipe. Disconnecting the electrical connectors is still necessary.

NOTE: This procedure is to remove and install the dual catalytic converter Y-pipe as an assembly. If the LH and RH catalytic converters need replacement, they must be replaced with a new dual catalytic converter Y-pipe assembly. If either the LH or RH catalytic converter need replaced individually, separate kits are available with instructions included for the repair.

Position vehicle on a hoist. Refer to: JACKING AND LIFTING .
Remove the transmission fluid cooler. Refer to: Transmission Fluid Cooler .

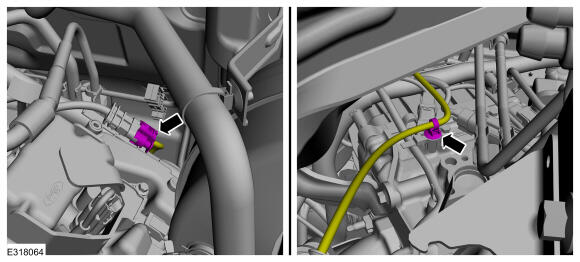

Detach the retainer and disconnect the LH HO2S.

Courtesy of FORD MOTOR COMPANY
Detach the retainer and disconnect the LH catalyst monitor sensor.

Courtesy of FORD MOTOR COMPANY

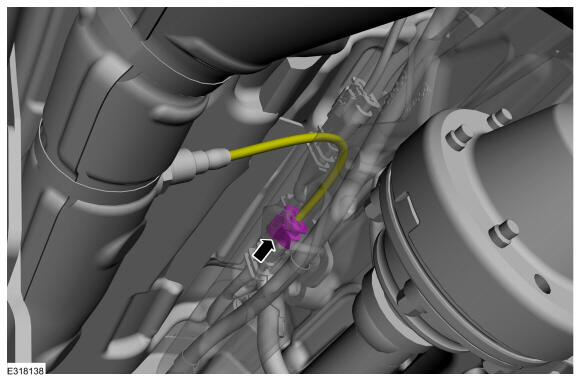

Disconnect the RH HO2S.

Courtesy of FORD MOTOR COMPANY
Remove the RH catalyst monitor sensor. Refer to: Catalyst Monitor Sensor .
Remove the transmission support crossmember. Refer to: Transmission Support Crossmember .

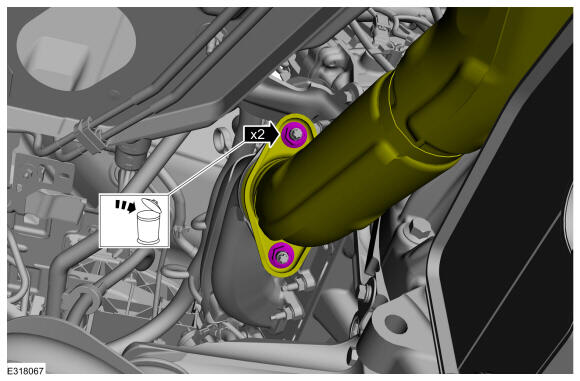

Remove and discard the RH catalytic converter flange nuts.

Courtesy of FORD MOTOR COMPANY

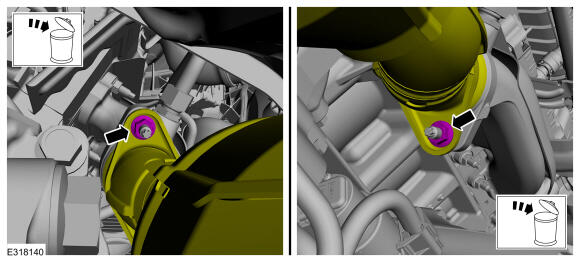

Remove and discard the LH catalytic converter flange nuts.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.

Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY
Remove the exhaust flange bolts and detach the exhaust hanger isolator.

Courtesy of FORD MOTOR COMPANY
NOTE: This step require another technician aid.

Remove the bracket bolts and the dual catalytic converter / Y-pipe assembly.

Courtesy of FORD MOTOR COMPANY

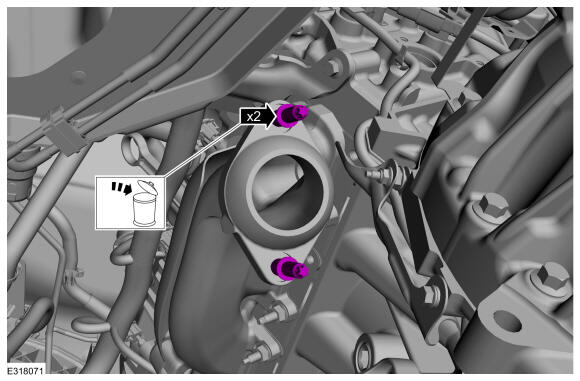

NOTE: This step is only required if you are replacing the studs.

Remove and discard the RH studs.

Courtesy of FORD MOTOR COMPANY

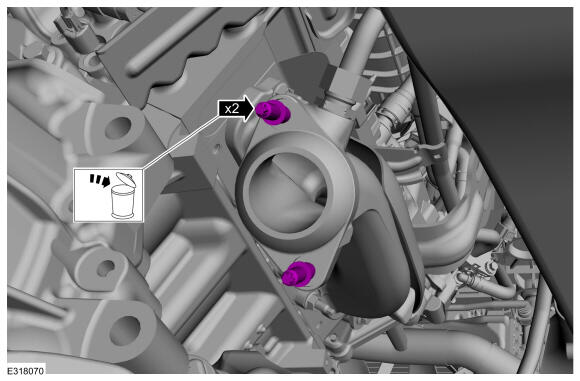

NOTE: This step is only required if you are replacing the studs.

Remove and discard the LH studs.

Courtesy of FORD MOTOR COMPANY

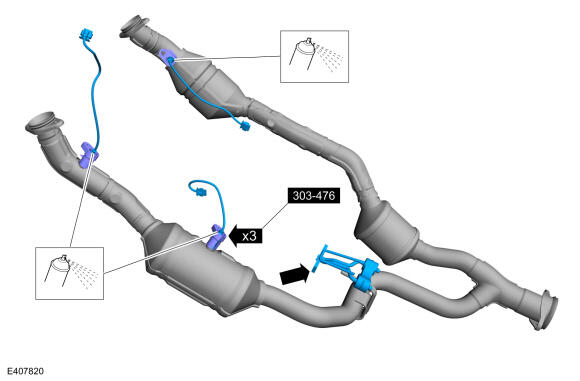

NOTE: This step is only required if you are replacing with new components.
- Remove the catalytic converter brace bracket.
- Apply penetrating oil to sensor, using the special tool remove the HO2S and the catalyst monitor sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
  Material: Penetrating Fluid

Courtesy of FORD MOTOR COMPANY
