Dual Catalytic Converter Y-Pipe - AWD: Installation
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
- Clean all exhaust connections before reassembly.
-
NOTE: This step is only required if you are replacing with new components.

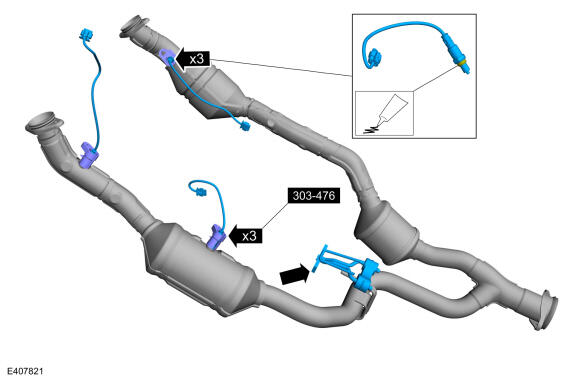

- Install the catalytic converter brace bracket.
- Apply anti-seize to thread of sensor, Using special tool install the HO2S and the catalyst monitor sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Anti-Seize Lubricant
Torque: 48 Nm
-
NOTE: This step is only required if you are replacing the studs.

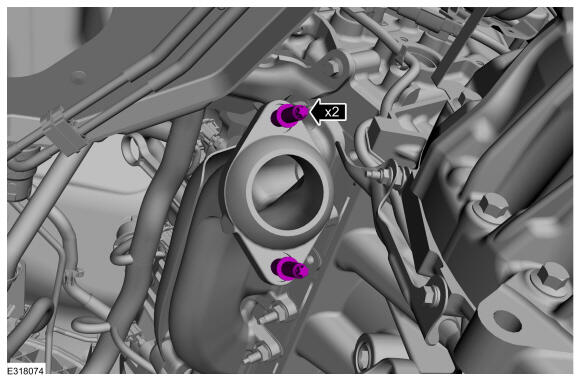

Install the LH studs.
Torque: 25 Nm
-
NOTE: This step is only required if you are replacing the studs.

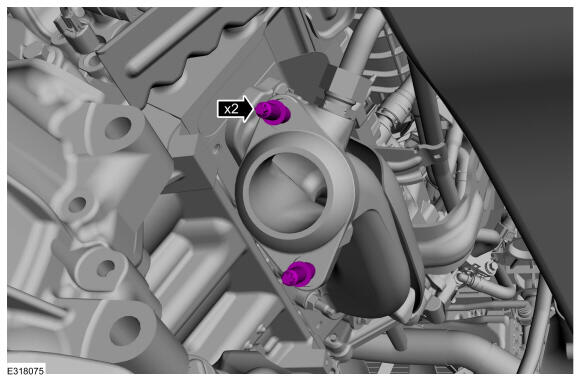

Install the RH studs.
Torque: 25 Nm
-
NOTE: This step require another technician aid.

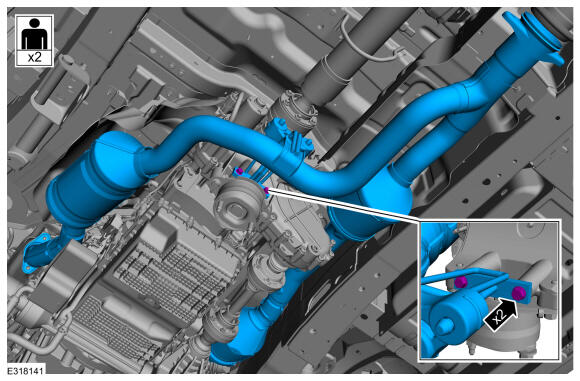

Position the dual catalytic converter / Y-pipe assembly in the vehicle and install the brace bracket bolts.
Torque: 40 Nm
-
NOTE: The bolts are only finger tight at this step.

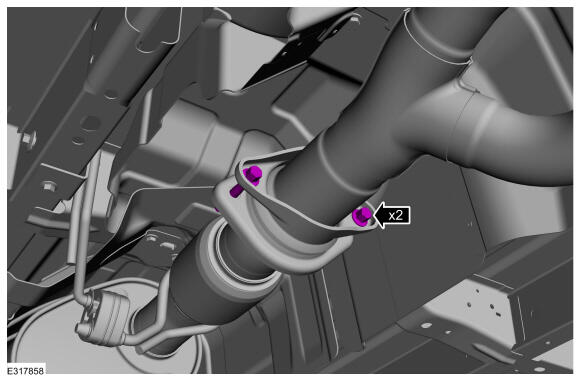

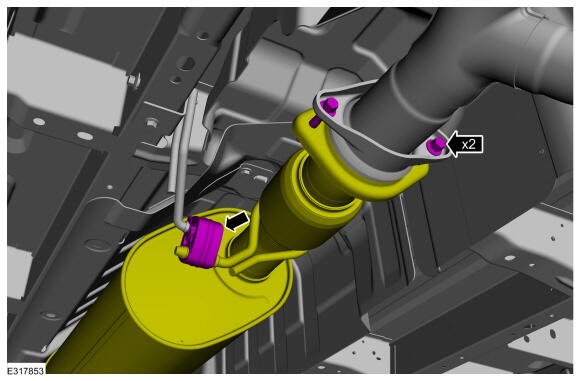

Attach the isolator and install the flange bolts.
-
NOTE: Make sure that new nuts are installed.

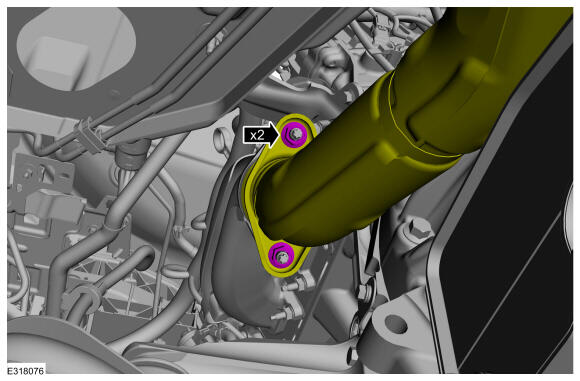

Evenly tighten the new LH catalytic converter flange nuts.
Torque: 40 Nm
-
NOTE: Make sure that new nuts are installed.
Evenly tighten the new RH catalytic converter flange nuts.
Torque: 40 Nm

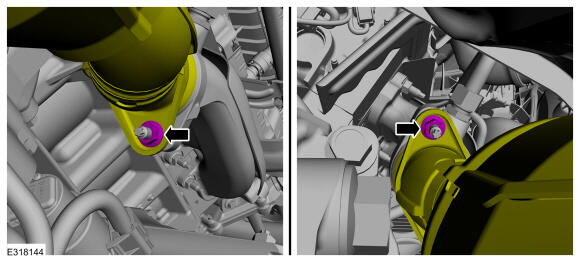

- Install the bolts.
Torque: 40 Nm
- To install, reverse the removal procedure.
- Check the exhaust system for leaks.
