Exhaust System - Component Location
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
RWD

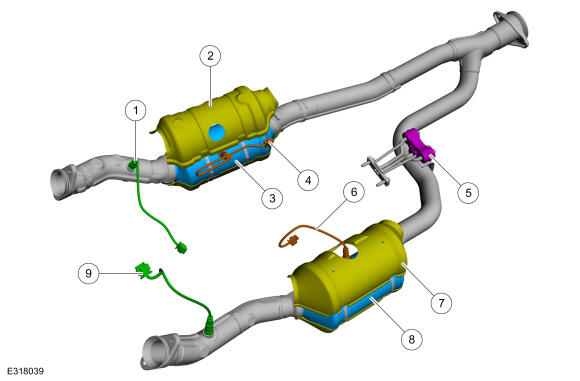

| Item | Description |
|---|---|
| 1 | Exhaust gas oxygen sensor - upstream |
| 2 | RH catalytic converter heat shield |
| 3 | RH catalytic converter |
| 4 | Exhaust gas oxygen sensor - downstream |
| 5 | Isolator |
| 6 | Exhaust gas oxygen sensor - downstream |
| 7 | LH catalytic converter heat shield |
| 8 | LH catalytic converter |
| 9 | Exhaust gas oxygen sensor - upstream |
AWD

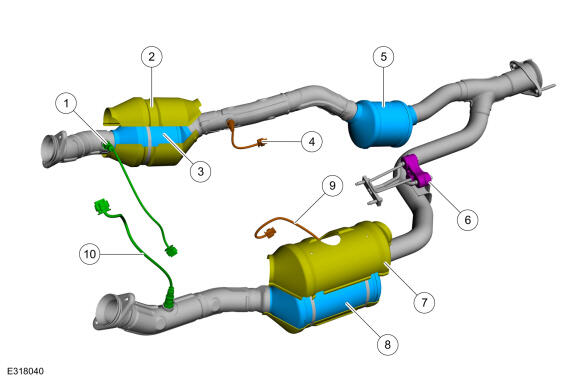

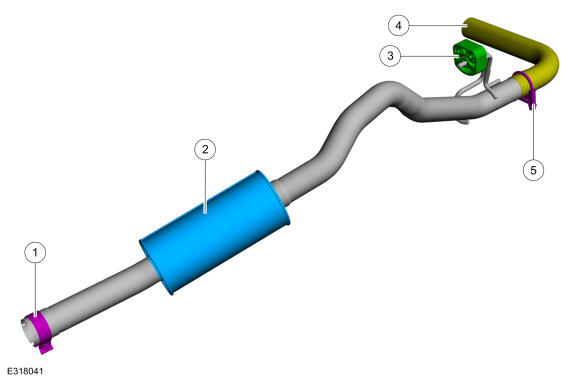

| Item | Description |
|---|---|
| 1 | Exhaust gas oxygen sensor - upstream |
| 2 | RH catalytic converter heat shield |
| 3 | RH catalytic converter |
| 4 | Exhaust gas oxygen sensor - downstream |
| 5 | Converter sub-assembly |
| 6 | Isolator |
| 7 | LH catalytic converter heat shield |
| 8 | LH catalytic converter |
| 9 | Exhaust gas oxygen sensor - downstream |
| 10 | Exhaust gas oxygen sensor - upstream |
| Item | Description |
|---|---|
| 1 | Exhaust flexible pipe |
| 2 | Isolators |
| 3 | Muffler |
| Item | Description |
|---|---|
| 1 | Clamp |
| 2 | Resonator |
| 3 | Isolator |
| 4 | Tailpipe trim (if equipped) |
| 5 | U-Clamp (if equipped) |
