Axle Tube Bearing: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .
  2. Drain the front differential. Refer to: Differential Draining and Filling .
  3. Remove the front LH halfshafts. Refer to: Front Halfshaft LH .
  4. Using general equipment, release the clamps and position the transfer case coolant hoses aside.Use the General Equipment: Hose Clamp Remover/Installer
    GFD836885Courtesy of FORD MOTOR COMPANY
  5. Remove and discard the front axle tube bolts.
    GFD836887Courtesy of FORD MOTOR COMPANY

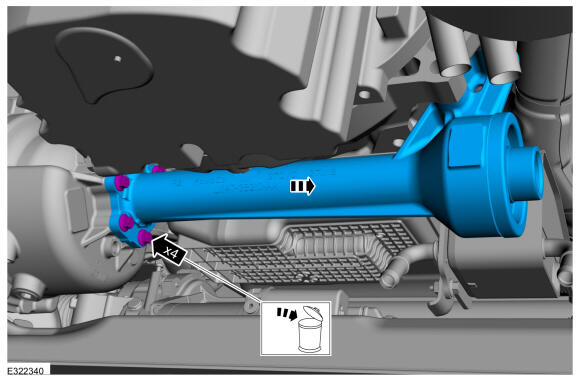

  6. Remove the front axle tube bolts and front axle tube.
    GFD836906Courtesy of FORD MOTOR COMPANY

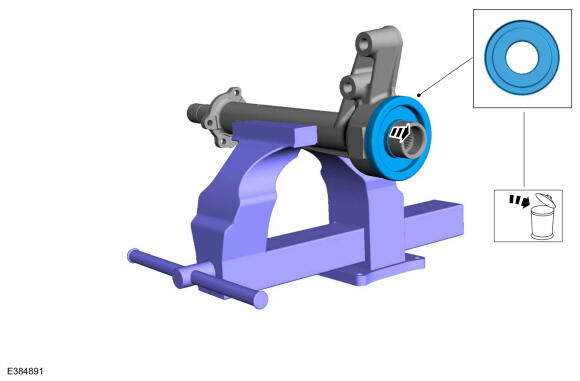

    • Position the front axle tube in a soft-jawed vise.Use the General Equipment: Vise

    • Remove and discard the front axle tube metal deflector.

    GFD836907Courtesy of FORD MOTOR COMPANY

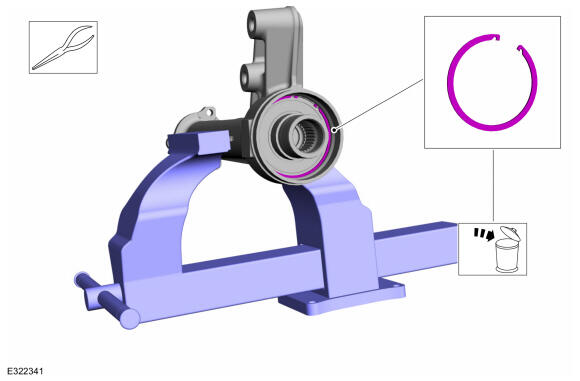

  8. Using general equipment, remove and discard the snap ring.Use the General Equipment: Snap Ring Pliers
    GFD836908Courtesy of FORD MOTOR COMPANY

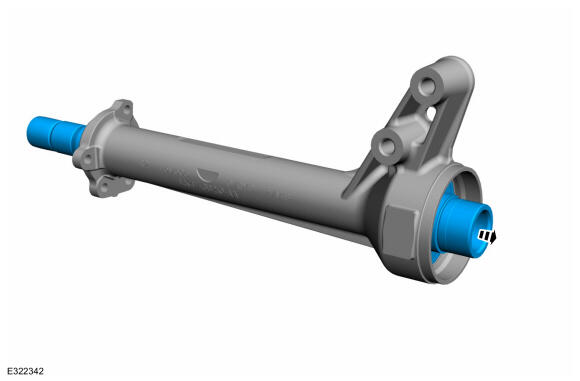

  9. Remove the axle shaft from the axle tube.
    GFD836909Courtesy of FORD MOTOR COMPANY

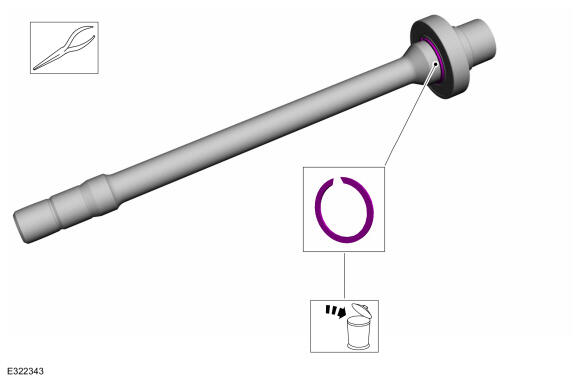

  10. Using general equipment, remove and discard the snap ring.Use the General Equipment: Snap Ring Pliers
    GFD836910Courtesy of FORD MOTOR COMPANY

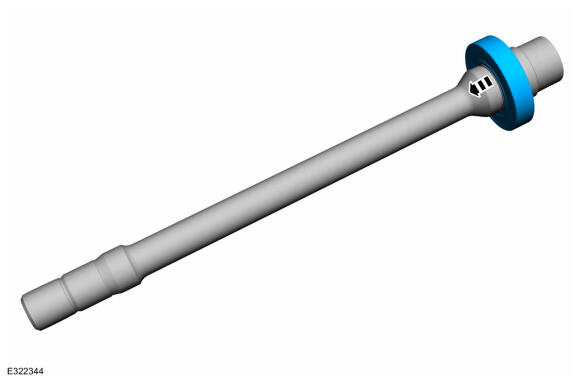

  11. Remove the axle shaft bearing.
GFD836911Courtesy of FORD MOTOR COMPANY
