Axle Shaft Seal: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

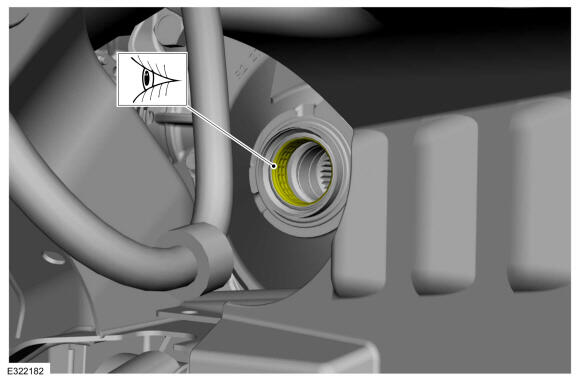

Inspect the differential housing surface for rust, nicks and scratches. Polish the differential housing surface with fine crocus cloth, if necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Installation of the halfshaft oil seal without the correct tools can result in early seal failure.

NOTE: Do not disassemble the new oil seal.

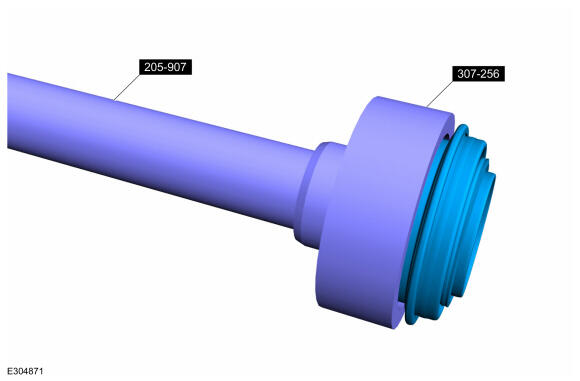

Install the new seal onto a suitable special tool.Use Special Service Tool: 307-256 (T92P-77000-FH) Installer, Differential Fluid Seal., 205-907 Handle, 32 Driver.

Courtesy of FORD MOTOR COMPANY
NOTE: Strike only the handle. Directly striking the installer tool will damage the seal.

NOTE: Carefully align the halfshaft seal with the housing bore and ensure the seal should flush in the differential housing.

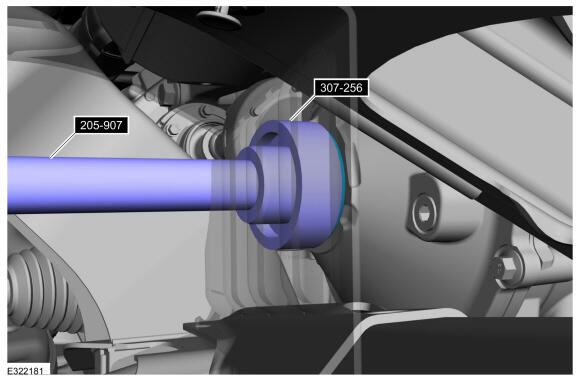

Using special tools, install the new front RH halfshaft seal.Use Special Service Tool: 307-256 (T92P-77000-FH) Installer, Differential Fluid Seal., 205-907 Handle, 32 Driver.

Courtesy of FORD MOTOR COMPANY

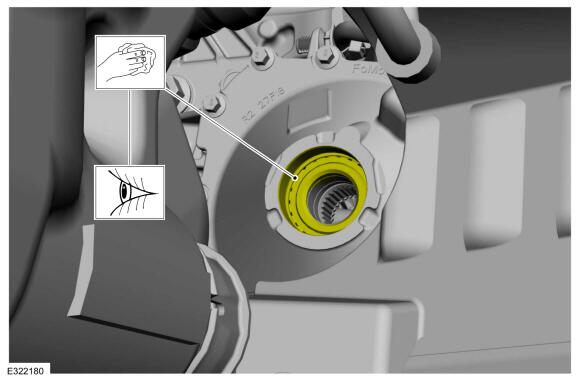

Inspect the halfshaft seal lip for rust, nicks or scratches prior to installing the halfshaft. Clean the seal lip with fine crocus cloth, if required.

Courtesy of FORD MOTOR COMPANY
Install the front RH halfshaft. Refer to: Front Halfshaft RH .
Check the differential fluid level. Refer to: Differential Fluid Level Check .
