Differential Fluid Level Check
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Materials
| Name | Specification |
|---|---|
| Gear/Transmission Fluid - SAE 75W-140 | WSL-M2C192-A |
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING
- Remove the front differential fill plug.

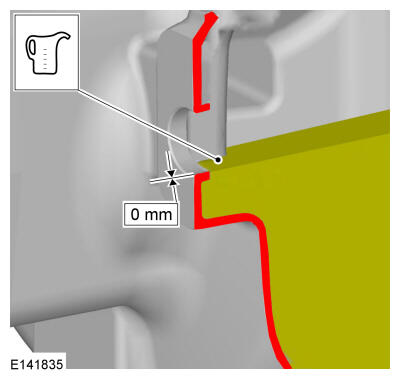

- Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be to the bottom of the filler hole.
Material: Gear/Transmission Fluid - SAE 75W-140 (WSL-M2C192-A)
- Ensure the front differential gear lubricant level to the bottom of the filler hole.
- Install the front differential fill plug.
Torque: 40 Nm
